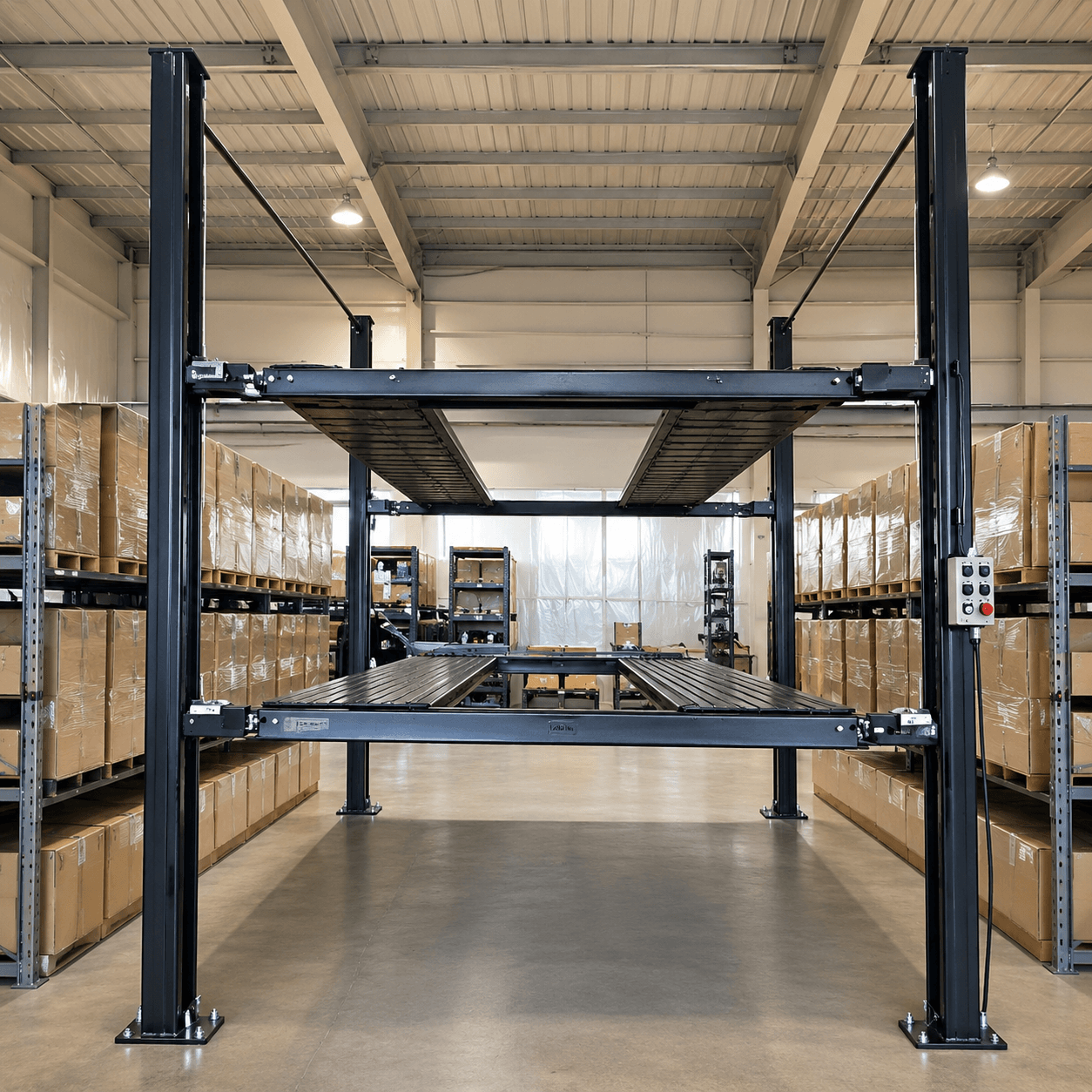

NSS-5x2 10,000lb Storage Lift Running out of parking or storage space can make managing multiple vehicles frustrating and inefficient. Traditional parking setups waste valuable floor space, limiting how many cars you can safely store or display in your garage, showroom, or service facility. The Triumph NSS-5x2 Double Stacker Four Post Automotive Lift is the perfect solution for maximizing space while adding service convenience. Designed to hold three vehicles in one footprint, this innovative lift stores two vehicles above ground and one below.
Rated for 10,000 lb, it's suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
What sets this four post lift apart within its category is the combination of rated capacity, documented specifications, and the safety engineering detailed below -- the kind of details worth checking before you commit to any four post lift.
Key Benefits
Stores 3 vehicles in the space of 1 parking area
5,000 lb capacity per vehicle platform
Total 10,000 lb upper storage capacity
Four-post double stacker design for superior stability
Includes 6 drip trays to protect lower vehicles
Automatic electric locks engage during lifting
Single-point 24V electric lock release
Drive-on design for easy loading and unloading
Features Explained
Highlights that shape this lift's day-to-day performance:
Stores 3 vehicles in the space of 1 parking area
5,000 lb capacity per vehicle platform
Total 10,000 lb upper storage capacity
Four-post double stacker design for superior stability
Includes 6 drip trays to protect lower vehicles
Automatic electric locks engage during lifting
Ideal Applications
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types
Compatible Vehicles
Based on its specifications, this four post lift is suited to passenger cars, SUVs, and light-to-medium trucks up to its 10,000 lb rated capacity. Vehicles near the upper weight limit should be checked against their actual curb weight before use.
Technical Specifications
Specification |
Details |
Model |
NSS-5x2 |
Total Capacity |
10,000 lbs (5,000 lbs per vehicle platform) |
Vehicle Capacity |
5,000 lbs each upper level |
Overall Height |
147" |
Overall Length Without Ramps |
199" |
Overall Length With Ramps |
225" |
Overall Width |
101" |
Lift Height - Top Vehicle |
143" |
Lift Height - Middle Vehicle |
71" |
Height Under Runway |
65.5" |
Runway Length |
180" |
Runway Width |
19" |
Width Between Runways |
37.5" |
Drive Thru Width |
93" |
What's Included
Includes 6 drip trays to protect lower vehicles
R7 Airlocks - Air Supply Needed (Not Included)
Required Anchoring System Included
Safety Features
Automatic electric locks engage during lifting -- included as a built-in safeguard for safe day-to-day operation.
Single-point 24V electric lock release -- included as a built-in safeguard for safe day-to-day operation.
R7 Airlocks - Air Supply Needed (Not Included) -- included as a built-in safeguard for safe day-to-day operation.
Installation Requirements
Concrete requirements: Not specified by the manufacturer for this model -- confirm your slab thickness and PSI rating with a licensed installer before delivery.
Electrical requirements: Confirm voltage and phase requirements with your installer before delivery.
Installation difficulty: Professional installation is recommended for anchoring, alignment, and safety-system checks.
Estimated installation time: Not specified by the manufacturer; your installer can provide a time estimate based on your site.
Shipping Information
Warehouse pickup: due to this item's size, it ships free of charge to the nearest available warehouse pickup location rather than to a home or business address.
Full details, including which locations are available, are covered in our Shipping Policy.
Questions before you order? Call +1 (623) 850-3643 or email support@triumphliftsus.com.
Warranty
This lift is covered by the manufacturer's warranty. Specific terms and coverage details are provided with your order -- keep your invoice on hand, as it's required for any warranty service or claims.
Why Buy From Our Store
Free nationwide shipping, including free forklift delivery on qualifying orders
Secure checkout on every order
Expert customer support from a real, US-based team
Manufacturer warranty honored on every lift we sell
Fast order processing and shipment
Reliable service from a family-owned business
Trusted, name-brand automotive lift equipment
Responsive support by phone, text, or email
Frequently Asked Questions
What is the weight capacity?This four post lift is rated for 10,000 lb.
Do I need special electrical work?See the Motor/Power specification above; an electrician can confirm compatibility with your setup.
Can I install this myself?Professional installation is recommended for correct anchoring and safety-system function.
Is there a warranty?Yes, covered by the manufacturer's warranty; terms are included with your order.
How does shipping work?This item ships free to the nearest warehouse pickup location due to its size -- see our Shipping Policy.
What's included?See the What's Included section above for the full list.
How much does it cost?Current pricing is $5,445 -- the price shown at checkout is always accurate.
Can I return this if it doesn't fit my space?Yes, our standard 30-day return policy applies; buyer covers return shipping.
More About This Four Post Lift
Choosing the right four post lift comes down to matching capacity, build quality, and installation requirements to how it will actually be used. The Triumph NSS-5x2 10,000 lb 3 Car Four Post Lift is a drive-on four post lift, which supports the vehicle on a stable runway platform rather than at fixed frame contact points -- ideal for both service work and elevated storage between jobs. With a 10,000 lb capacity, it's built as serious car lift equipment rather than a bargain compromise. As auto lift equipment, it's engineered for repeatable, dependable performance rather than occasional light-duty use -- the kind of durability that separates a dependable automotive lift from equipment that cuts corners on materials or safety engineering. Combined with free nationwide shipping (or warehouse pickup on oversized models), a manufacturer warranty on every unit, and support from a real US-based team, this four post lift is a well-rounded choice for a first home garage bay or a working shop floor.
Ready to add reliable, professional-grade lifting capacity to your garage or shop? Order the Triumph NSS-5x2 10,000 lb 3 Car Four Post Lift today, backed by free shipping or warehouse pickup, a manufacturer warranty, and support from our team from checkout through delivery.
