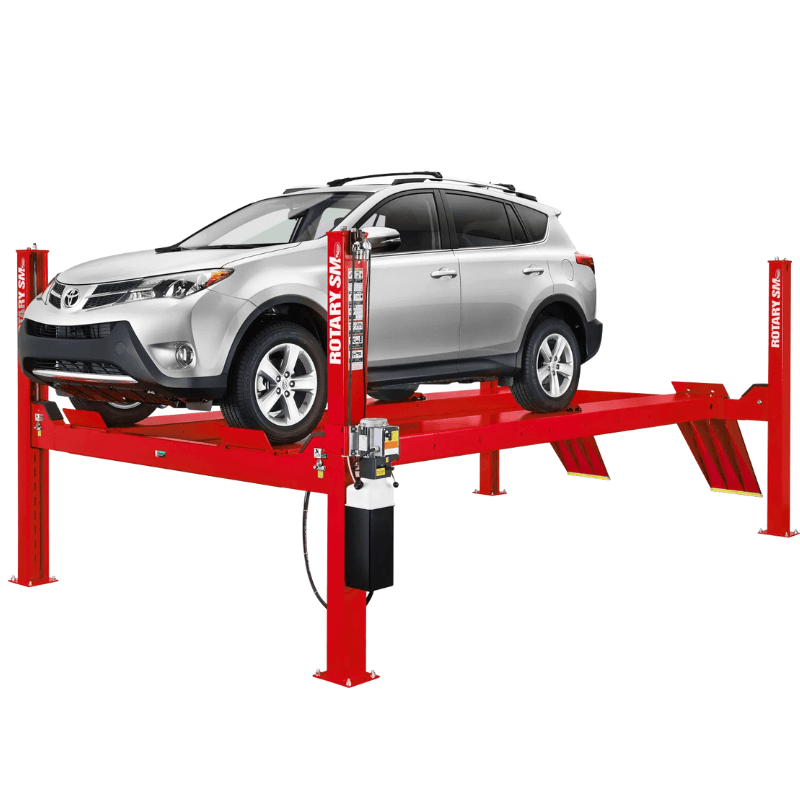

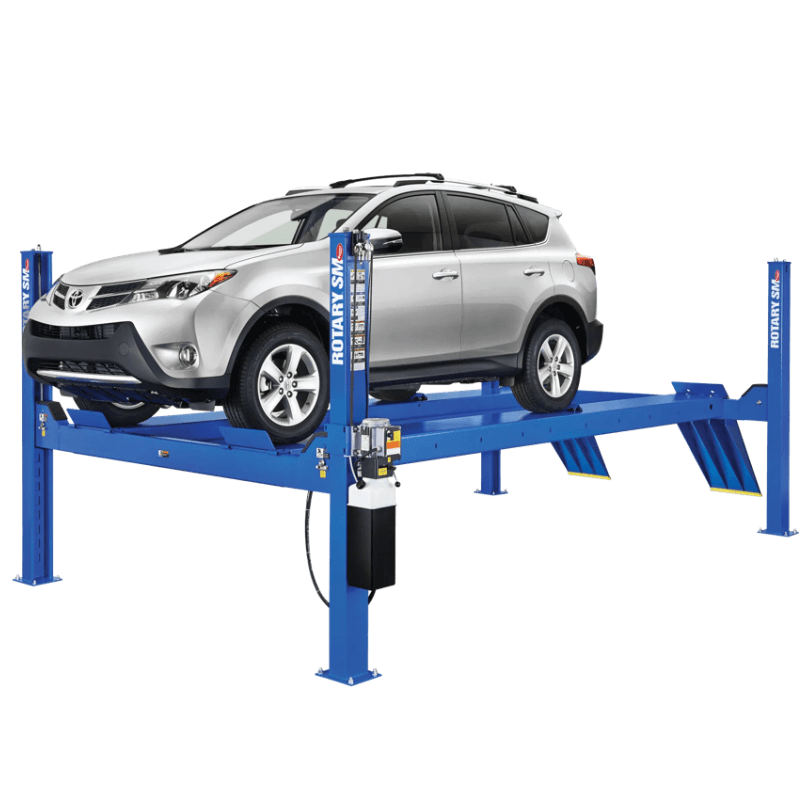

Rotary SM14 14,000lb 4 Post Lift - ALI Certified
Rotary SM14 14,000lb 4 Post Lift - ALI Certified
Rotary SM14 14,000lb 4 Post Lift - ALI Certified
The Rotary SM14 is a premium four-post, closed-front drive-on lift engineered for fast, efficient service of cars, SUVs, trucks, and vans up to 14,000 lbs. Vehicles can be driven directly onto the runways, making positioning quick and effortless while ensuring consistent lifting accuracy. Designed for professional automotive environments, the SM14 delivers dependable performance for daily service and inspection work. Built to Rotary’s exacting standards, the SM14 features single-piece, non-welded runways that maximize structural strength and long-term durability.
Rated for 14,000 lb, it's suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
What sets this four post lift apart within its category is the combination of rated capacity, documented specifications, and the safety engineering detailed below -- the kind of details worth checking before you commit to any four post lift.
Key Benefits
14,000 lb capacity suitable for cars, SUVs, trucks, and vans
Closed-front drive-on design for fast vehicle positioning
Single-piece, non-welded runways for superior structural strength

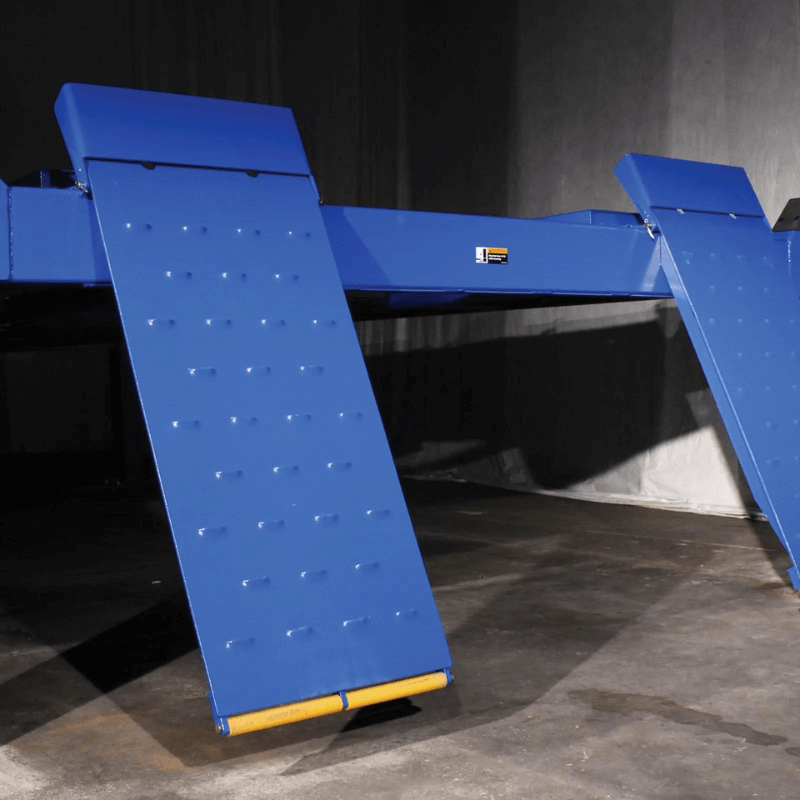

Louvered ramps for improved traction and safety
Durable powder-coated Hammer Tone finish
Optional ShockWave™ technology for dramatically faster lift cycles
Long wheelbase support for extended vehicles
Ideal for high-volume professional service environments
Features Explained
Highlights that shape this lift's day-to-day performance:
14,000 lb capacity suitable for cars, SUVs, trucks, and vans
Closed-front drive-on design for fast vehicle positioning
Single-piece, non-welded runways for superior structural strength
Louvered ramps for improved traction and safety
Durable powder-coated Hammer Tone finish
Optional ShockWave™ technology for dramatically faster lift cycles
Ideal Applications
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types
Compatible Vehicles
Based on its specifications, this four post lift is suited to passenger cars, SUVs, and light-to-medium trucks up to its 14,000 lb rated capacity. Vehicles near the upper weight limit should be checked against their actual curb weight before use.

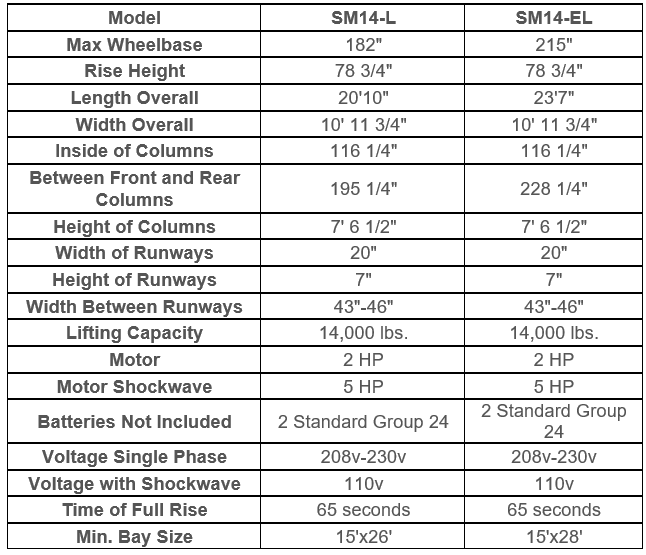

Technical Specifications
Specification |
Details |
Lifting Capacity |
14,000 lbs |
SM14-L |
180" x 312" |
SM14-EL |
180" x 336" |
Rise Height |
78 3/4" |
Overall Width |
131 3/4" |
Inside Column Width |
116 1/4" |
Column Height |
90 1/2" |
Runway Width |
20" |
Min Height |
7" |
Width Between Runways |
43" – 46" |
Motor (Standard) |
2 HP |
Voltage (Single Phase) |
208–230V |
Time of Full Rise |
65 seconds |
Warranty |
5 Years Structural |
What's Included
Louvered ramps for improved traction and safety
Safety Features
Louvered ramps for improved traction and safety -- included as a built-in safeguard for safe day-to-day operation.
Installation Requirements
Concrete requirements: Not specified by the manufacturer for this model -- confirm your slab thickness and PSI rating with a licensed installer before delivery.
Electrical requirements: Confirm voltage and phase requirements with your installer before delivery.
Installation difficulty: Professional installation is recommended for anchoring, alignment, and safety-system checks.
Estimated installation time: Not specified by the manufacturer; your installer can provide a time estimate based on your site.
Shipping Information
Free shipping nationwide on this item, including free forklift delivery.
Full shipping terms and delivery details are covered in our Shipping Policy.
Tracking information is emailed once your order ships.
Questions before you order? Call +1 (623) 850-3643 or email support@triumphliftsus.com.
Warranty
This lift is covered by the manufacturer's warranty. Specific terms and coverage details are provided with your order -- keep your invoice on hand, as it's required for any warranty service or claims.
Why Buy From Our Store
Free nationwide shipping, including free forklift delivery on qualifying orders
Secure checkout on every order
Expert customer support from a real, US-based team
Manufacturer warranty honored on every lift we sell
Fast order processing and shipment
Reliable service from a family-owned business
Trusted, name-brand automotive lift equipment
Responsive support by phone, text, or email
Frequently Asked Questions
What is the weight capacity?This four post lift is rated for 14,000 lb.
Do I need special electrical work?See the Motor/Power specification above; an electrician can confirm compatibility with your setup.
Can I install this myself?Professional installation is recommended for correct anchoring and safety-system function.
Is there a warranty?Yes, covered by the manufacturer's warranty; terms are included with your order.
How does shipping work?Ships free nationwide with forklift delivery included -- see our Shipping Policy for details.
What's included?See the What's Included section above for the full list.
How much does it cost?Current pricing is $6,232.6 -- the price shown at checkout is always accurate.
Can I return this if it doesn't fit my space?Yes, our standard 30-day return policy applies; buyer covers return shipping.
More About This Four Post Lift
Choosing the right four post lift comes down to matching capacity, build quality, and installation requirements to how it will actually be used. The Rotary SM14 14,000lb 4 Post Lift - ALI Certified is a drive-on four post lift, which supports the vehicle on a stable runway platform rather than at fixed frame contact points -- ideal for both service work and elevated storage between jobs. With a 14,000 lb capacity, it's built as serious car lift equipment rather than a bargain compromise. As auto lift equipment, it's engineered for repeatable, dependable performance rather than occasional light-duty use -- the kind of durability that separates a dependable automotive lift from equipment that cuts corners on materials or safety engineering. Combined with free nationwide shipping (or warehouse pickup on oversized models), a manufacturer warranty on every unit, and support from a real US-based team, this four post lift is a well-rounded choice for a first home garage bay or a working shop floor.
Ready to add reliable, professional-grade lifting capacity to your garage or shop? Order the Rotary SM14 14,000lb 4 Post Lift - ALI Certified today, backed by free shipping or warehouse pickup, a manufacturer warranty, and support from our team from checkout through delivery.
