FP14KAC-X Alignment Lift by Ideal With a massive 14,000 lb capacity, this lift scoffs at your heaviest vehicles. Need precision? The 'bolt-on' runway alignment kit has you covered, letting you align vehicles with great accuracy. And, with an extended rise height of 79-1/2 inches, this lift is perfect for trucks that look like they’ve been built by a team of brainiac engineers. It’s time to lift smarter, not harder.
Rated for 14,000 lb, it's suited to alignment and calibration shops, dealerships and service centers offering alignment as a core service, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
What sets this alignment lift apart within its category is the combination of rated capacity, documented specifications, and the safety engineering detailed below -- the kind of details worth checking before you commit to any alignment lift.
Key Benefits
14,000 lb high-performance commercial alignment lift
Durable, high-quality cable lift system
Extended rise height for increased service access
Bolt-on runway alignment kit included
166.7" maximum alignment wheelbase for 2-wheel alignment
157" maximum alignment wheelbase for 4-wheel alignment
182.5" maximum service wheelbase
18 locking height positions

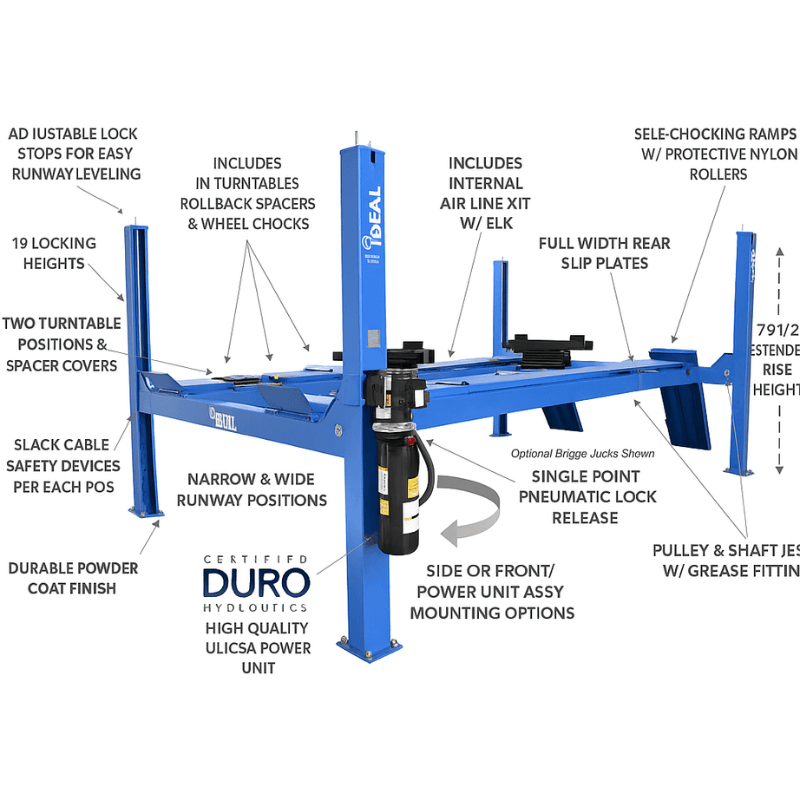

Features Explained
Highlights that shape this lift's day-to-day performance:
14,000 lb high-performance commercial alignment lift
Durable, high-quality cable lift system
Extended rise height for increased service access
Bolt-on runway alignment kit included
166.7" maximum alignment wheelbase for 2-wheel alignment
157" maximum alignment wheelbase for 4-wheel alignment
Ideal Applications
Alignment and calibration shops
Dealerships and service centers offering alignment as a core service
Performance shops fine-tuning suspension geometry
Compatible Vehicles
Based on its specifications, this alignment lift is suited to passenger cars, SUVs, and light-to-medium trucks up to its 14,000 lb rated capacity. Vehicles near the upper weight limit should be checked against their actual curb weight before use.
Technical Specifications
Specification |
Details |
Lift model |
FP14KAC-X |
Capacity |
14,000 lbs |
Overall length with ramp |
252-1/2" |
Overall width (without power unit) |
131-7/8" |
Overall width (with power unit) |
142" |
Overall height |
92-1/2" |
Maximum rise height |
79-1/2" |
Minimum height |
9-7/8" |
Width between posts |
116-1/4" |
Length between posts |
196" |
Width between runways |
42" or 46" |
Runway width |
20" |
Maximum service wheelbase |
182-1/2" |
Ramp length |
44" |
What's Included
166.7" maximum alignment wheelbase for 2-wheel alignment
Bolt-on runway alignment kit included
Two turntable positions with spacer covers (Turn Plates Not Included)
Self-chocking approach ramps with nylon rollers
Wheel chocks (1 pair) included
Safety Features
18 locking height positions -- included as a built-in safeguard for safe day-to-day operation.
Single point pneumatic lock release -- included as a built-in safeguard for safe day-to-day operation.
Fully adjustable lock stops for easy leveling -- included as a built-in safeguard for safe day-to-day operation.
Slack cable safety devices -- included as a built-in safeguard for safe day-to-day operation.
Installation Requirements
Concrete requirements: Concrete Requirements: Minimum of 4.25"-3000psi
Electrical requirements: Confirm voltage and phase requirements with your installer before delivery.
Installation difficulty: Professional installation is recommended for anchoring, alignment, and safety-system checks.
Estimated installation time: Not specified by the manufacturer; your installer can provide a time estimate based on your site.
Shipping Information
Warehouse pickup: due to this item's size, it ships free of charge to the nearest available warehouse pickup location rather than to a home or business address.
Full details, including which locations are available, are covered in our Shipping Policy.
Questions before you order? Call +1 (623) 850-3643 or email support@triumphliftsus.com.
Warranty
This lift is covered by the manufacturer's warranty. Specific terms and coverage details are provided with your order -- keep your invoice on hand, as it's required for any warranty service or claims.
Why Buy From Our Store
Free nationwide shipping, including free forklift delivery on qualifying orders
Secure checkout on every order
Expert customer support from a real, US-based team
Manufacturer warranty honored on every lift we sell
Fast order processing and shipment
Reliable service from a family-owned business
Trusted, name-brand automotive lift equipment
Responsive support by phone, text, or email
Frequently Asked Questions
What is the weight capacity?This alignment lift is rated for 14,000 lb.
Do I need special electrical work?See the Motor/Power specification above; an electrician can confirm compatibility with your setup.
Can I install this myself?Professional installation is recommended for correct anchoring and safety-system function.
Is there a warranty?Yes, covered by the manufacturer's warranty; terms are included with your order.
How does shipping work?This item ships free to the nearest warehouse pickup location due to its size -- see our Shipping Policy.
What's included?See the What's Included section above for the full list.
How much does it cost?Current pricing is $5,731 -- the price shown at checkout is always accurate.
Can I return this if it doesn't fit my space?Yes, our standard 30-day return policy applies; buyer covers return shipping.
