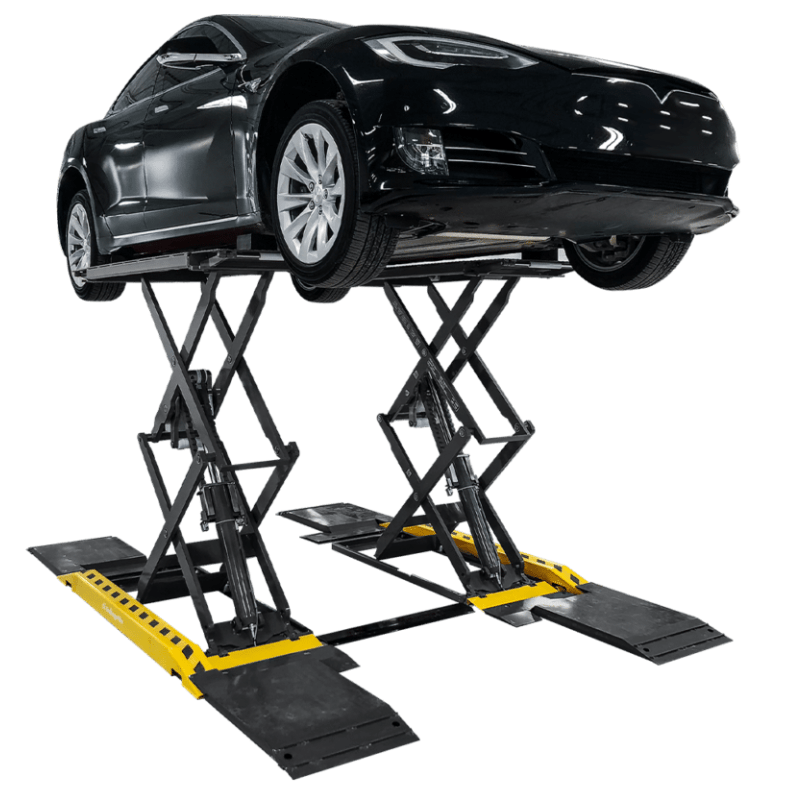

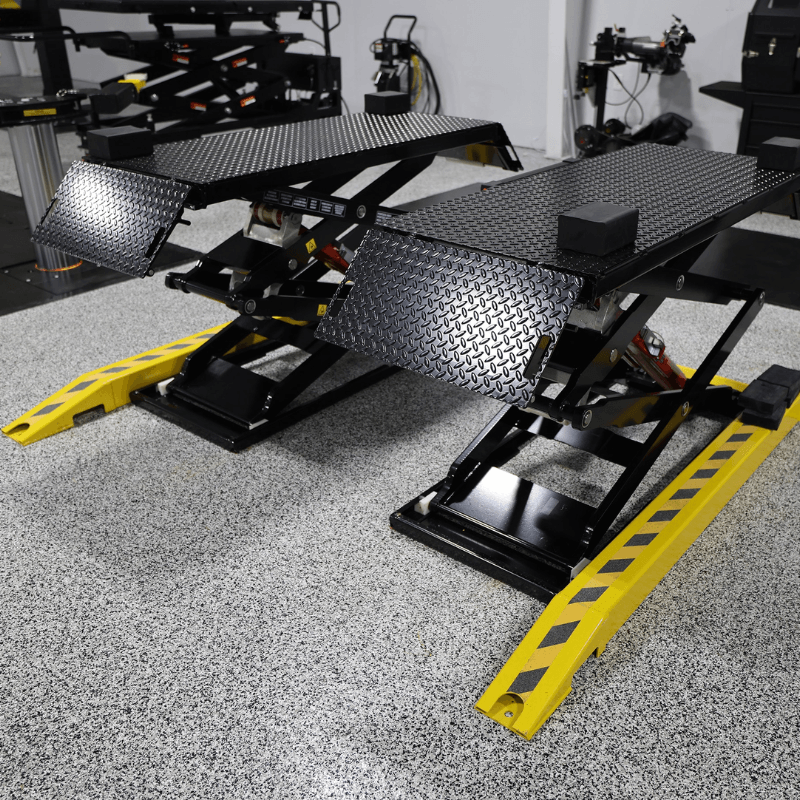

DX77 Series 7.7K Scissor Lift Boost productivity and maximize workspace efficiency with the Challenger Lifts DX77 Series Scissor Lift. Traditional lifts can limit access and slow down service times, especially in tight or high-traffic bays. The DX77 solves this with a compact, cross-member-free design that provides full access around the vehicle—helping technicians work faster, safer, and more efficiently. Engineered for versatility, the DX77 can be installed above ground or flush-mounted to maintain a clean, seamless shop floor. Its synchronized hydraulic system, double scissor design, and easy push-button controls ensure smooth and reliable operation.
Rated for 7,700 lb, it's suited to quick-service and inspection bays, shops needing a low-profile lift that doesn't require tall ceiling clearance, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
What sets this scissor lift apart within its category is the combination of rated capacity, documented specifications, and the safety engineering detailed below -- the kind of details worth checking before you commit to any scissor lift.
Key Benefits
7,700 lb lifting capacity for a wide range of vehicles
Cross-member-free design for full vehicle access

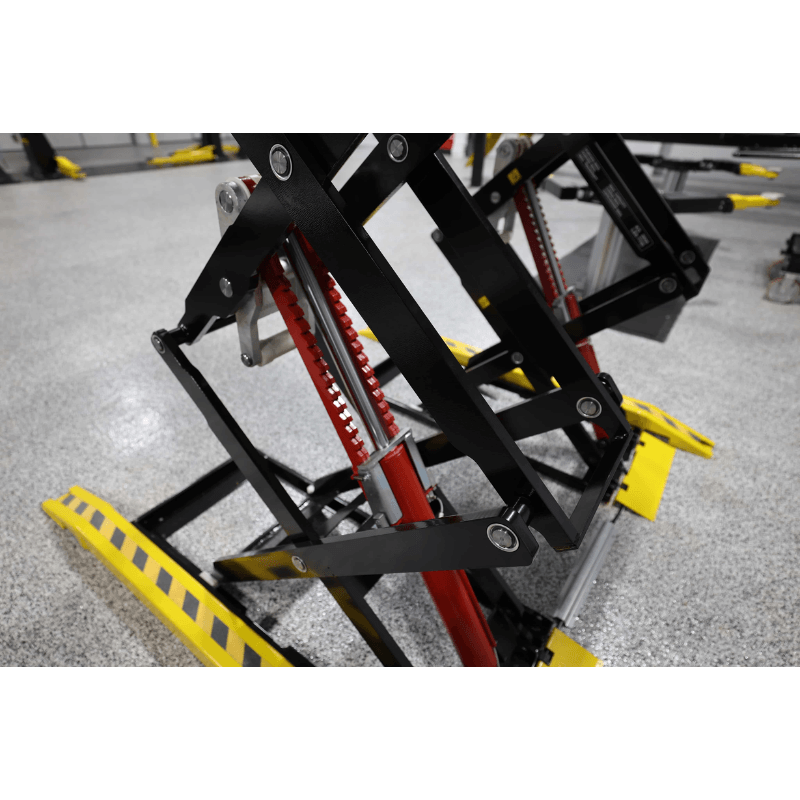

Double scissor system for higher lift and stability
Can be installed above ground or flush-mounted

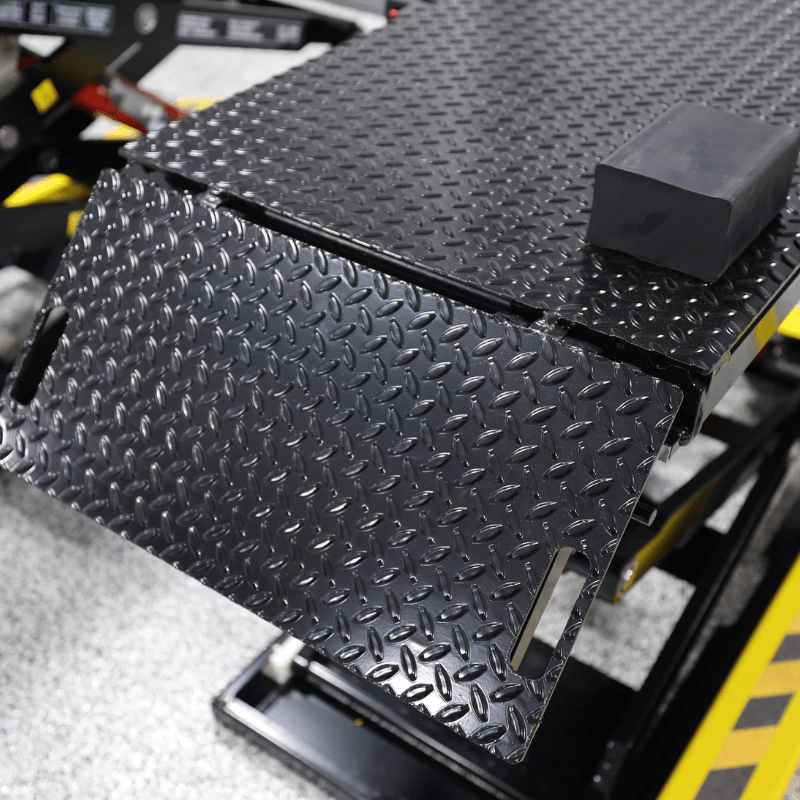

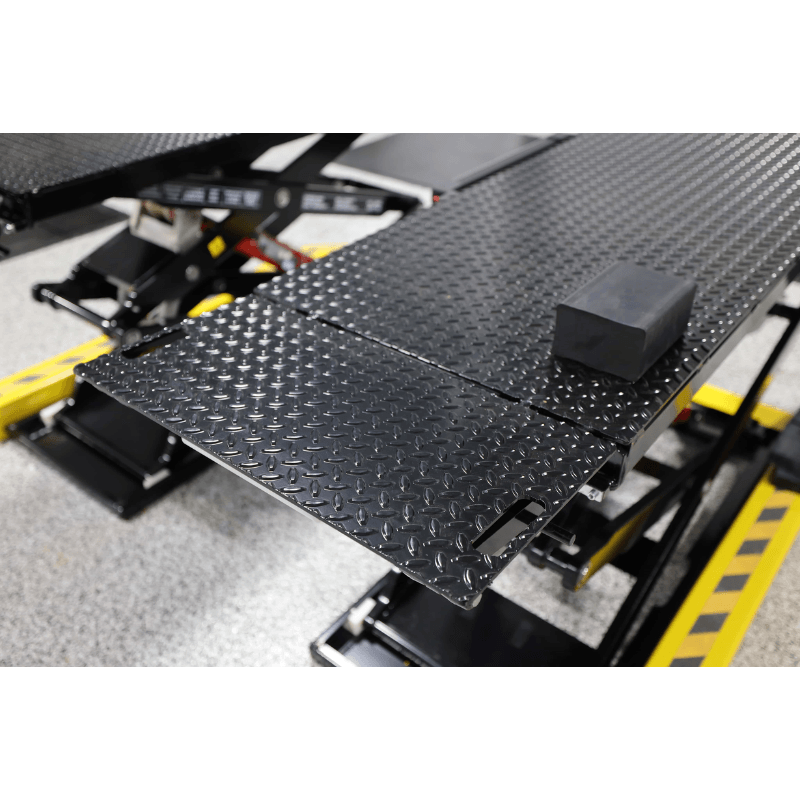

Reinforced diamond-plate ramps with flip-up extension

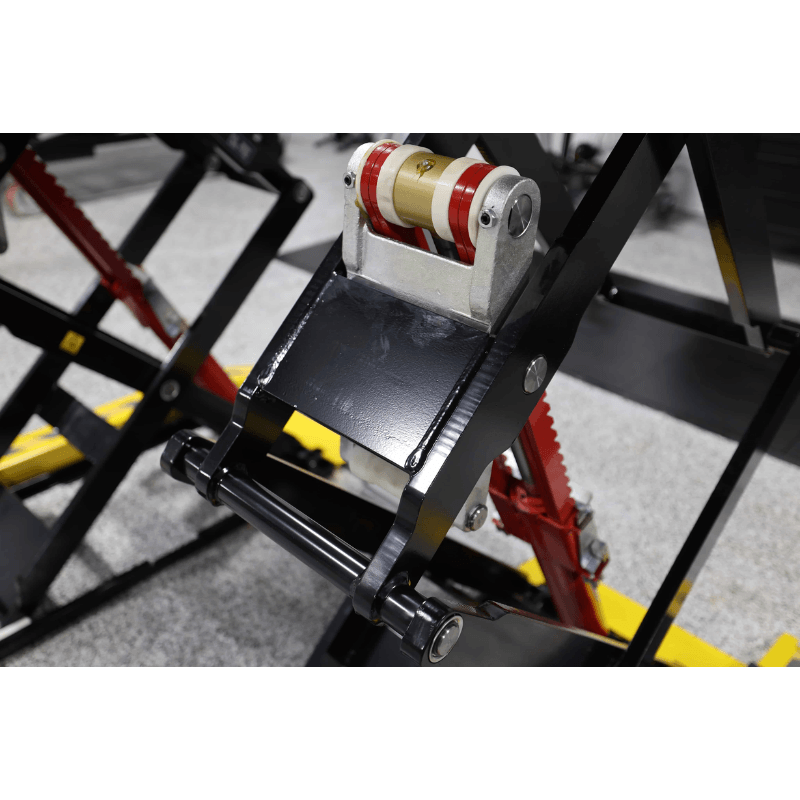

Single-point air-actuated lock release system
Simple push-button control console
Includes rubber spotting blocks (3" & 1.5" sets)
Features Explained
Highlights that shape this lift's day-to-day performance:
7,700 lb lifting capacity for a wide range of vehicles
Cross-member-free design for full vehicle access
Double scissor system for higher lift and stability
Can be installed above ground or flush-mounted
Reinforced diamond-plate ramps with flip-up extension
Single-point air-actuated lock release system
Ideal Applications
Quick-service and inspection bays
Shops needing a low-profile lift that doesn't require tall ceiling clearance
Mobile or portable service setups
Tire and brake service stations
Compatible Vehicles
Based on its specifications, this scissor lift is suited to passenger cars, SUVs, and light-to-medium trucks up to its 7,700 lb rated capacity. Vehicles near the upper weight limit should be checked against their actual curb weight before use.
Technical Specifications
Specification |
Details |
Model |
DX77 / DX77-R |
Capacity |
7,700 lbs |
Overall Width |
69.5" – 82" |
Overall Length |
83.25" |
Platform Length |
59" |
Platform Width |
24.5" |
Width Between Platforms |
21" – 27" |
Ramp Length |
11.75" |
Rise Height |
70" – 74.5" |
Lowered Height |
4.5" (standard model) |
Max Load per Platform |
3,850 lbs |
Motor |
2HP, 208–220V, 60Hz, Single Phase |
Amps |
30A |
Rise Time |
43 seconds |
What's Included
Reinforced diamond-plate ramps with flip-up extension
Optional extended ramp kit for low-profile vehicles
Safety Features
Single-point air-actuated lock release system -- included as a built-in safeguard for safe day-to-day operation.
Includes rubber spotting blocks (3" & 1.5" sets) -- included as a built-in safeguard for safe day-to-day operation.
ALI certified for safety and reliability -- included as a built-in safeguard for safe day-to-day operation.
Installation Requirements
Concrete requirements: Concrete Requirements: Minimum of 4"-3500psi
Electrical requirements: Confirm voltage and phase requirements with your installer before delivery.
Installation difficulty: Professional installation is recommended for anchoring, alignment, and safety-system checks.
Estimated installation time: Not specified by the manufacturer; your installer can provide a time estimate based on your site.
Shipping Information
Free shipping nationwide on this item, including free forklift delivery.
Full shipping terms and delivery details are covered in our Shipping Policy.
Tracking information is emailed once your order ships.
Questions before you order? Call +1 (623) 850-3643 or email support@triumphliftsus.com.
Warranty
This lift is covered by the manufacturer's warranty. Specific terms and coverage details are provided with your order -- keep your invoice on hand, as it's required for any warranty service or claims.
Why Buy From Our Store
Free nationwide shipping, including free forklift delivery on qualifying orders
Secure checkout on every order
Expert customer support from a real, US-based team
Manufacturer warranty honored on every lift we sell
Fast order processing and shipment
Reliable service from a family-owned business
Trusted, name-brand automotive lift equipment
Responsive support by phone, text, or email
Frequently Asked Questions
What is the weight capacity?This scissor lift is rated for 7,700 lb.
Do I need special electrical work?See the Motor/Power specification above; an electrician can confirm compatibility with your setup.
Can I install this myself?Professional installation is recommended for correct anchoring and safety-system function.
Is there a warranty?Yes, covered by the manufacturer's warranty; terms are included with your order.
How does shipping work?Ships free nationwide with forklift delivery included -- see our Shipping Policy for details.
What's included?See the What's Included section above for the full list.
How much does it cost?Current pricing is $9,429.61 -- the price shown at checkout is always accurate.
Can I return this if it doesn't fit my space?Yes, our standard 30-day return policy applies; buyer covers return shipping.
More About This Scissor Lift
Choosing the right car lift comes down to matching capacity, build quality, and installation requirements to how it will actually be used. The Challenger DX77 Series 7,700lb Scissor Lift - ALI Certified (Std or Flush) is a scissor lift, which folds flat to the floor when not in use and rises with a compact footprint -- a strong fit for shops that need lifting capability without a permanent, tall installation. With a 7,700 lb capacity, it's built as serious auto lift equipment rather than a bargain compromise. As automotive lift equipment, it's engineered for repeatable, dependable performance rather than occasional light-duty use -- the kind of durability that separates a dependable garage lift from equipment that cuts corners on materials or safety engineering. Combined with free nationwide shipping (or warehouse pickup on oversized models), a manufacturer warranty on every unit, and support from a real US-based team, this scissor lift is a well-rounded choice for a first home garage bay or a working shop floor.
Ready to add reliable, professional-grade lifting capacity to your garage or shop? Order the Challenger DX77 Series 7,700lb Scissor Lift - ALI Certified (Std or Flush) today, backed by free shipping or warehouse pickup, a manufacturer warranty, and support from our team from checkout through delivery.
