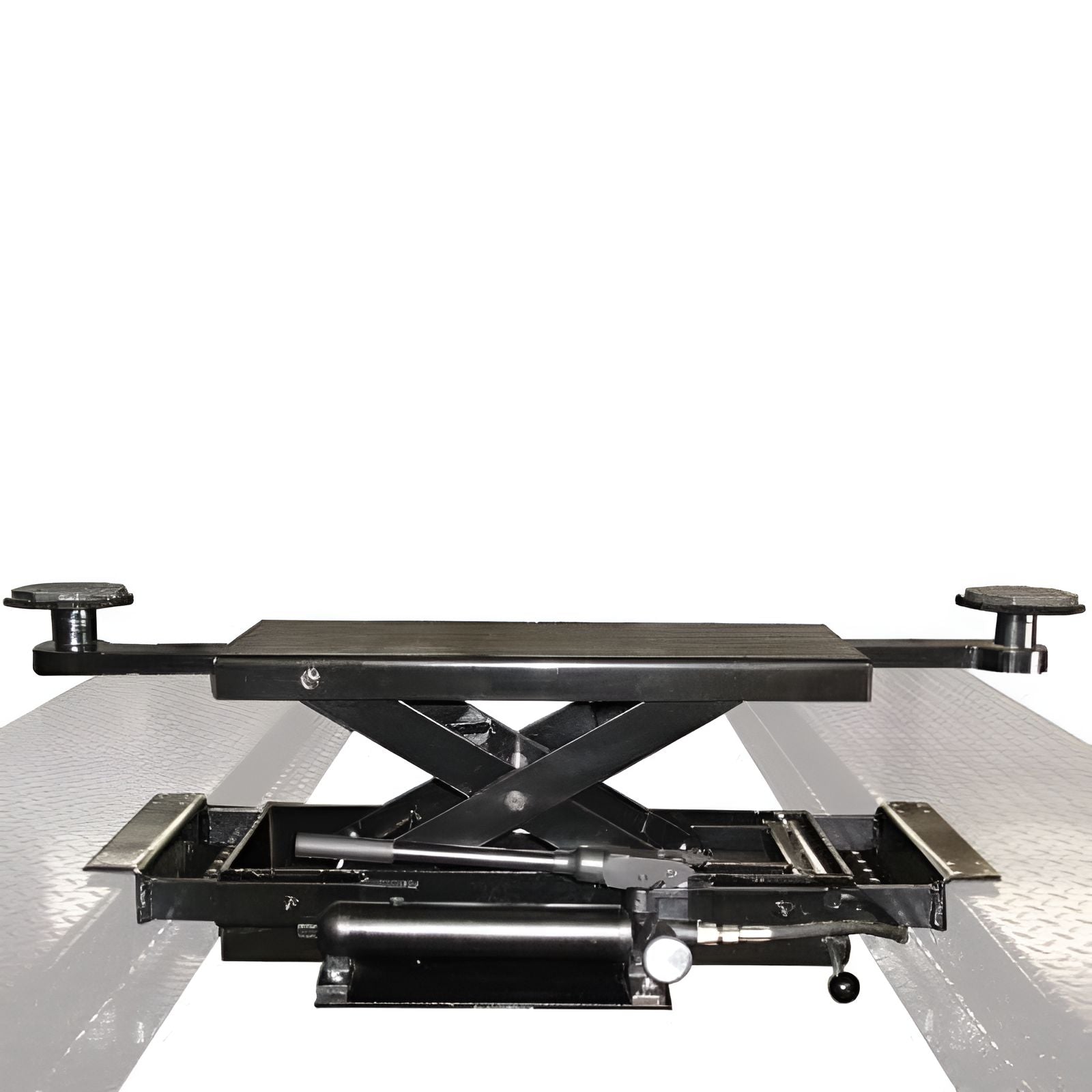

Tired of bending over backwards just to get under a car? It’s time to ditch the back pain and elevate your game with the Atlas APEX8 ALI Certified 4-post lift and RJ35 sliding bridge jacks! The APEX8 lift allows you to stack cars up to 8,000 lbs and lift them to a comfortable 72 inches, giving you ample room to work without straining your back. With runways stretching 169.5 inches, it accommodates everything from compact cars to full-size trucks. Plus, the included caster kit with polyurethane wheels lets you easily reposition the lift, so you can adapt your workspace as needed. No, we're not done yet.
it's suited to home garages using it for both service and elevated vehicle storage, professional repair shops needing a fast drive-on/drive-off workflow, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
What sets this four post lift apart within its category is the combination of rated capacity, documented specifications, and the safety engineering detailed below -- the kind of details worth checking before you commit to any four post lift.
Key Benefits

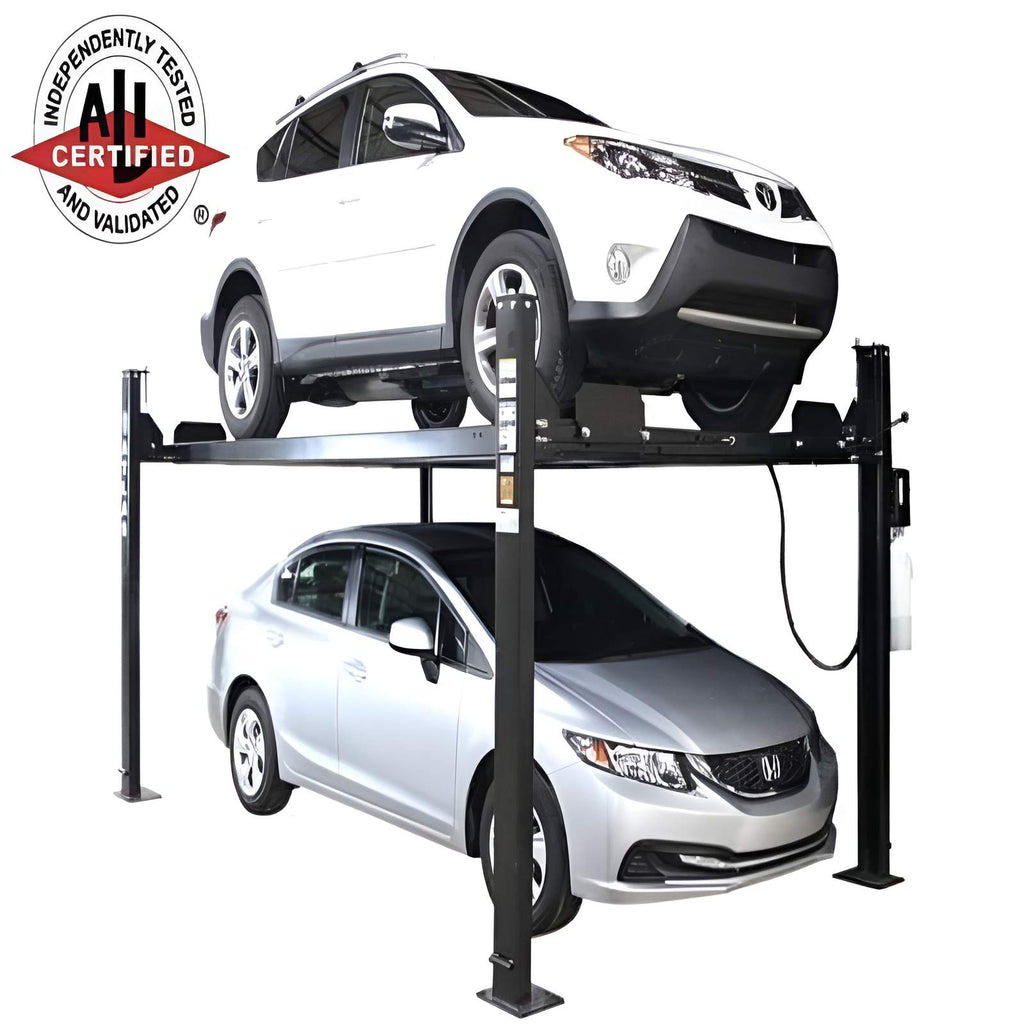

ALI Certified Lift
8,000 lb. Capacity
Free Standing/Portable Design
Powder Coat Finish

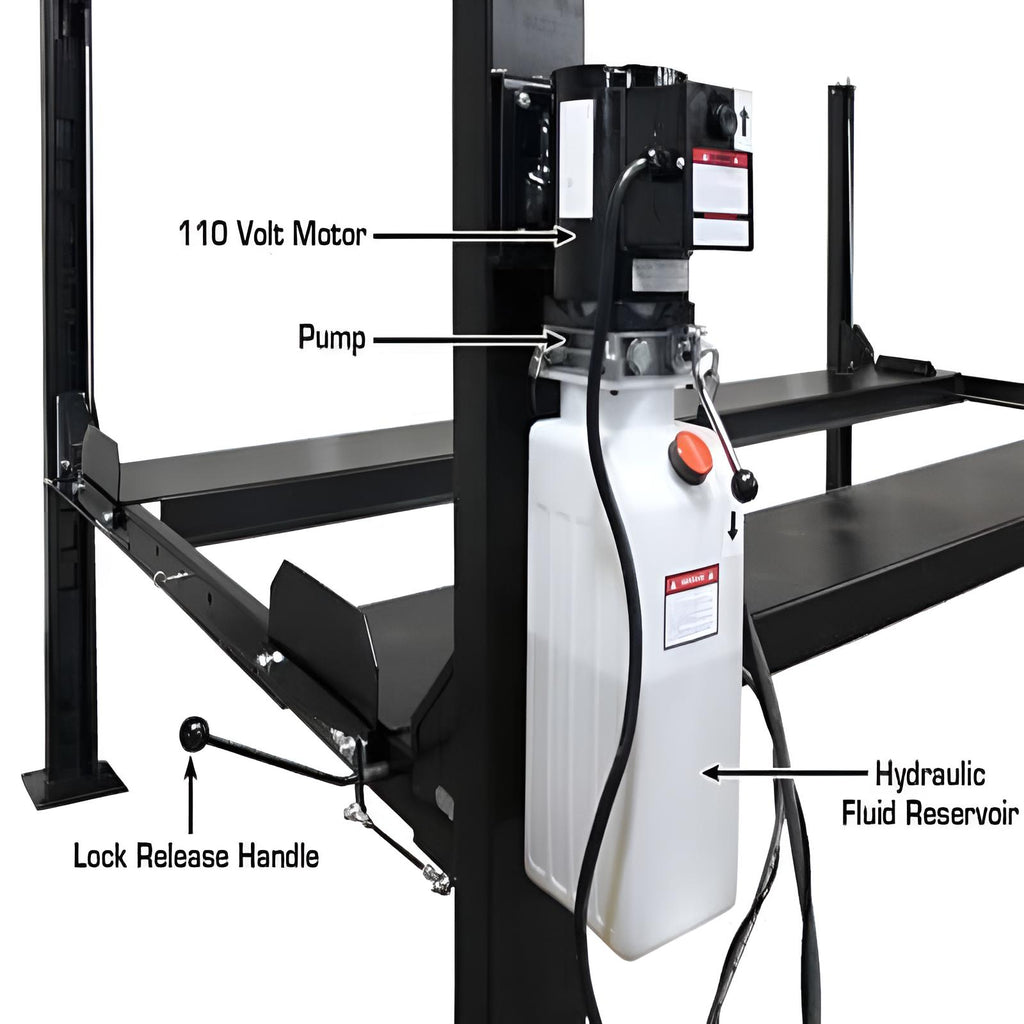

Single Point Lock Release

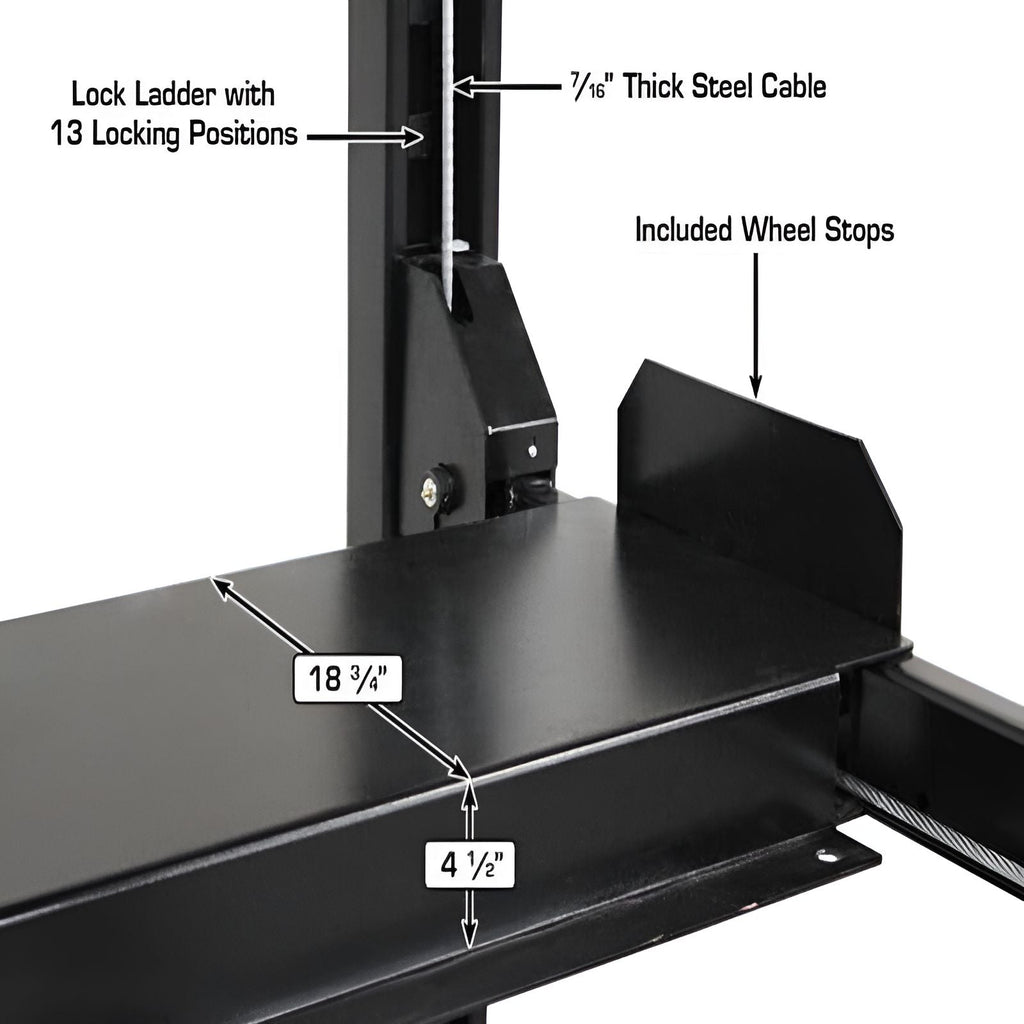

Lock Ladder Design
Double Lock Safety System
Steel Approach Ramps Included
Features Explained
Highlights that shape this lift's day-to-day performance:
ALI Certified Lift
8,000 lb. Capacity
Free Standing/Portable Design
Powder Coat Finish
Single Point Lock Release
Lock Ladder Design
Ideal Applications
Home garages using it for both service and elevated vehicle storage
Professional repair shops needing a fast drive-on/drive-off workflow
Commercial garages running higher vehicle throughput
Car collectors storing an extra vehicle above usable floor space
Fleet maintenance operations servicing a mix of vehicle types
Compatible Vehicles
Based on its specifications, this four post lift is suited to passenger cars, SUVs, and light-to-medium trucks within its rated capacity. Vehicles near the upper weight limit should be checked against their actual curb weight before use.
Technical Specifications
Specification |
Details |
Capacity |
8,000 lb. |

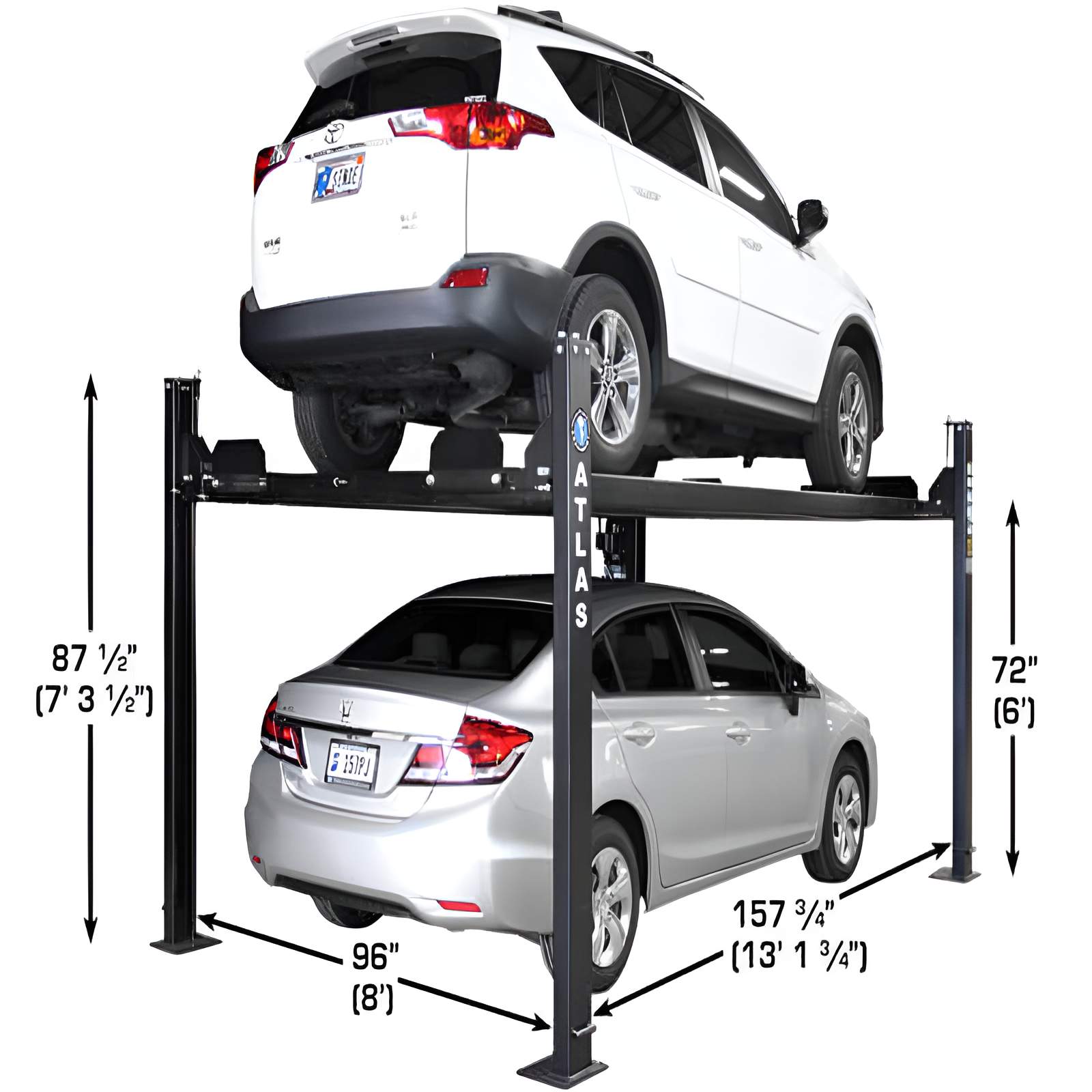

Lifting Height to Top of Runway |
72" (6') |

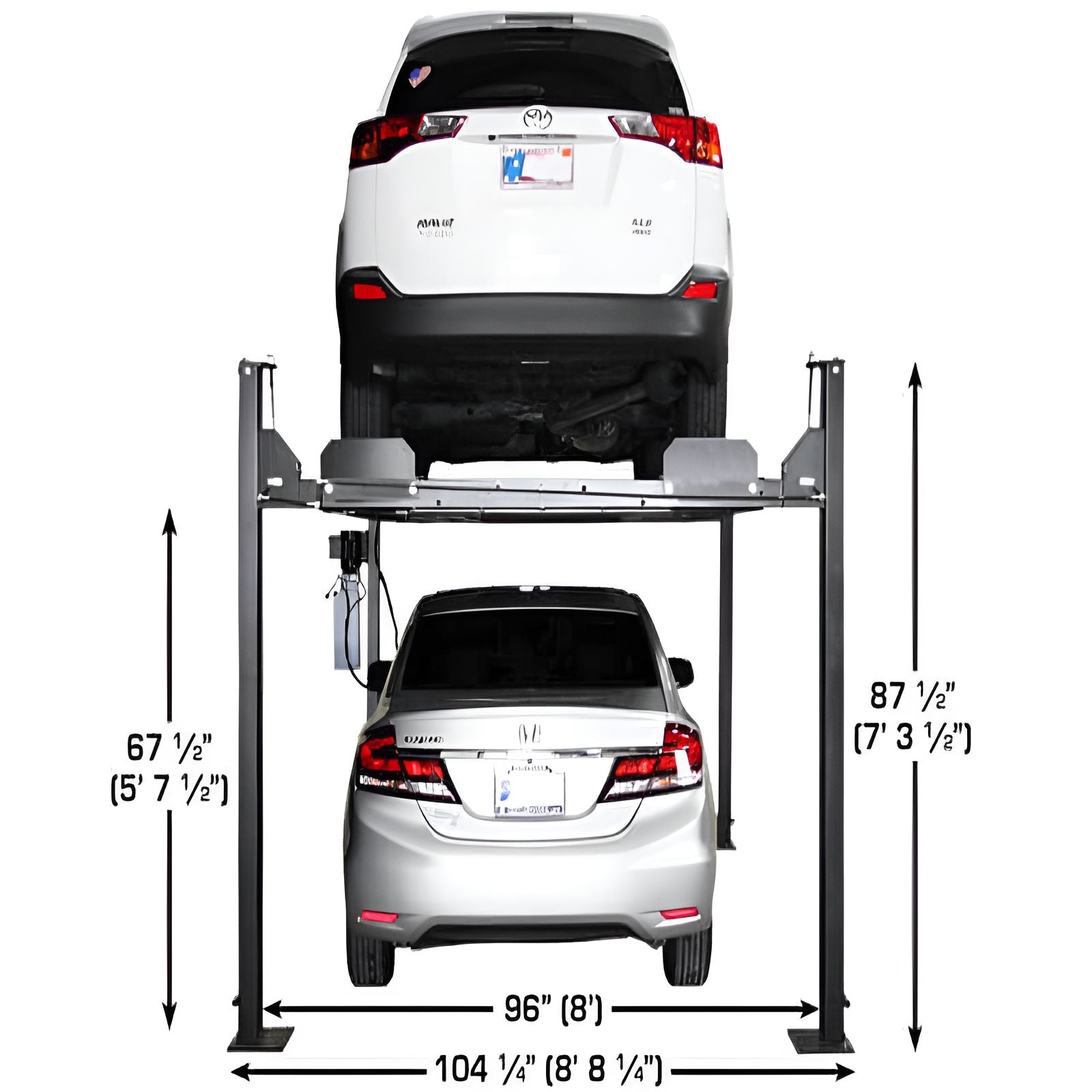

Clearance Under Runways |
67" (5' 7") |
Height of Columns (Including Nuts) |
86 5/8" (7' 2 5/8") |

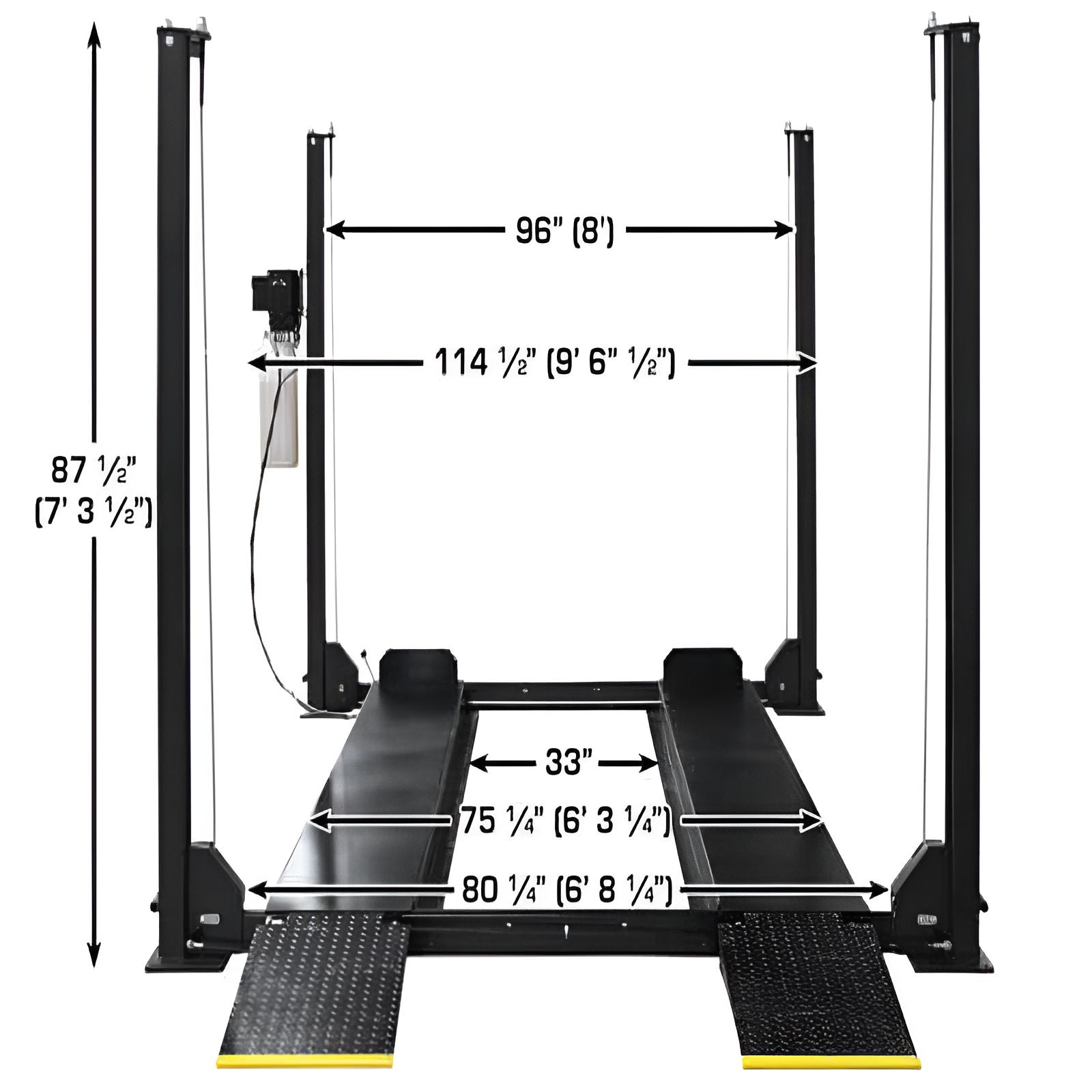

Overall Width (With Motor) |
114" (9' 6") |

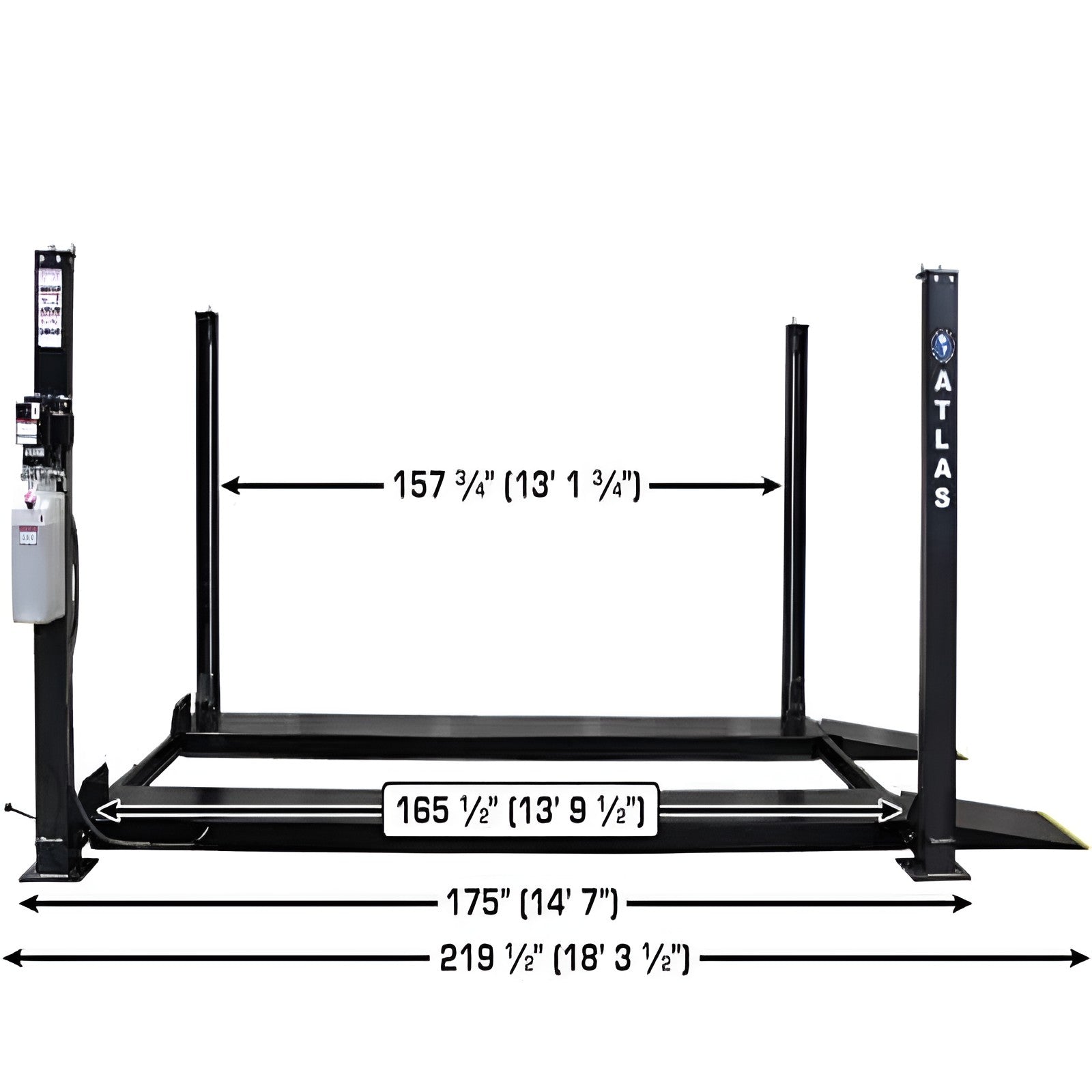

Overall Length with Approach Ramps |
207 5/6" (17' 3 5/6") |

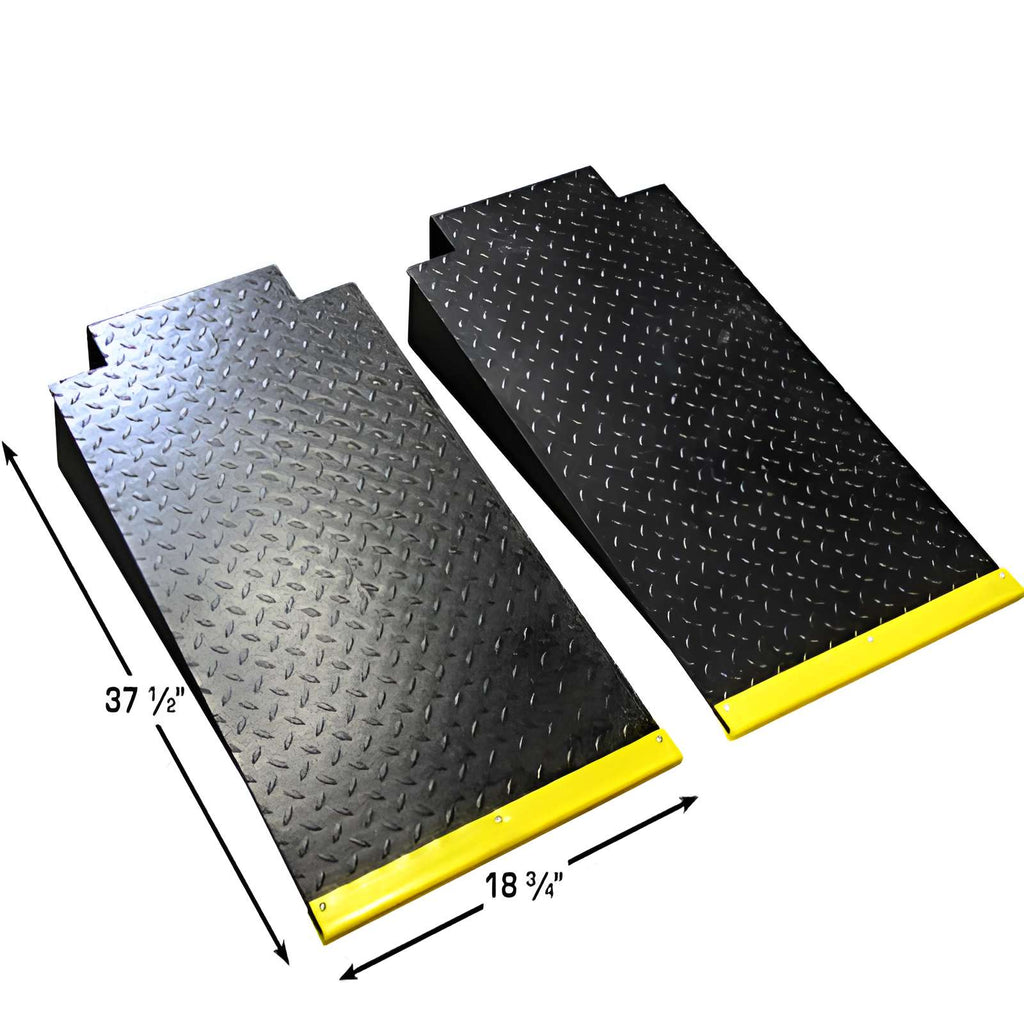

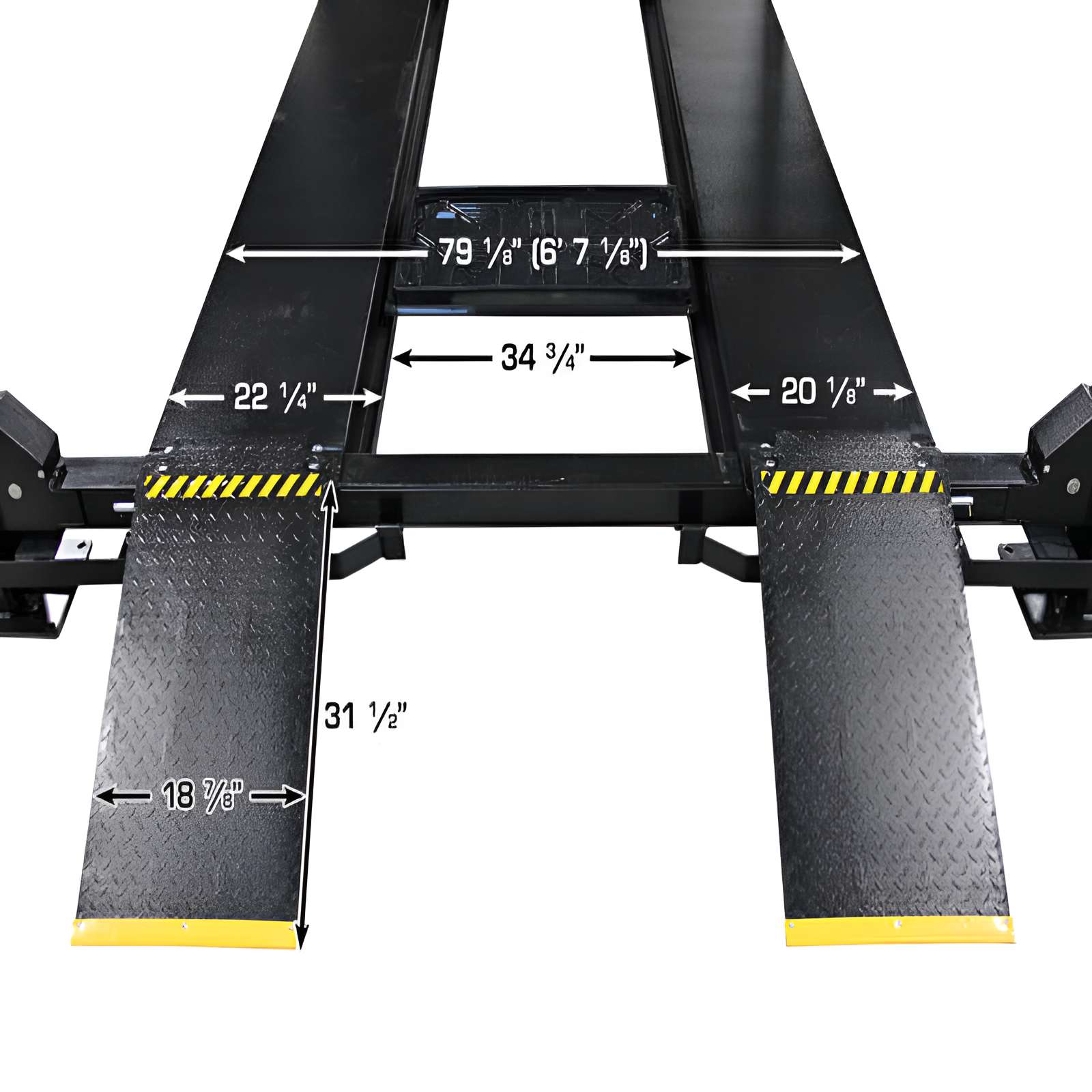

Approach Ramps |
37 1/2" (3' 1 1/2") |
Runway Width |
18 2/3" |
Runway Rail Width |
2 1/2" |

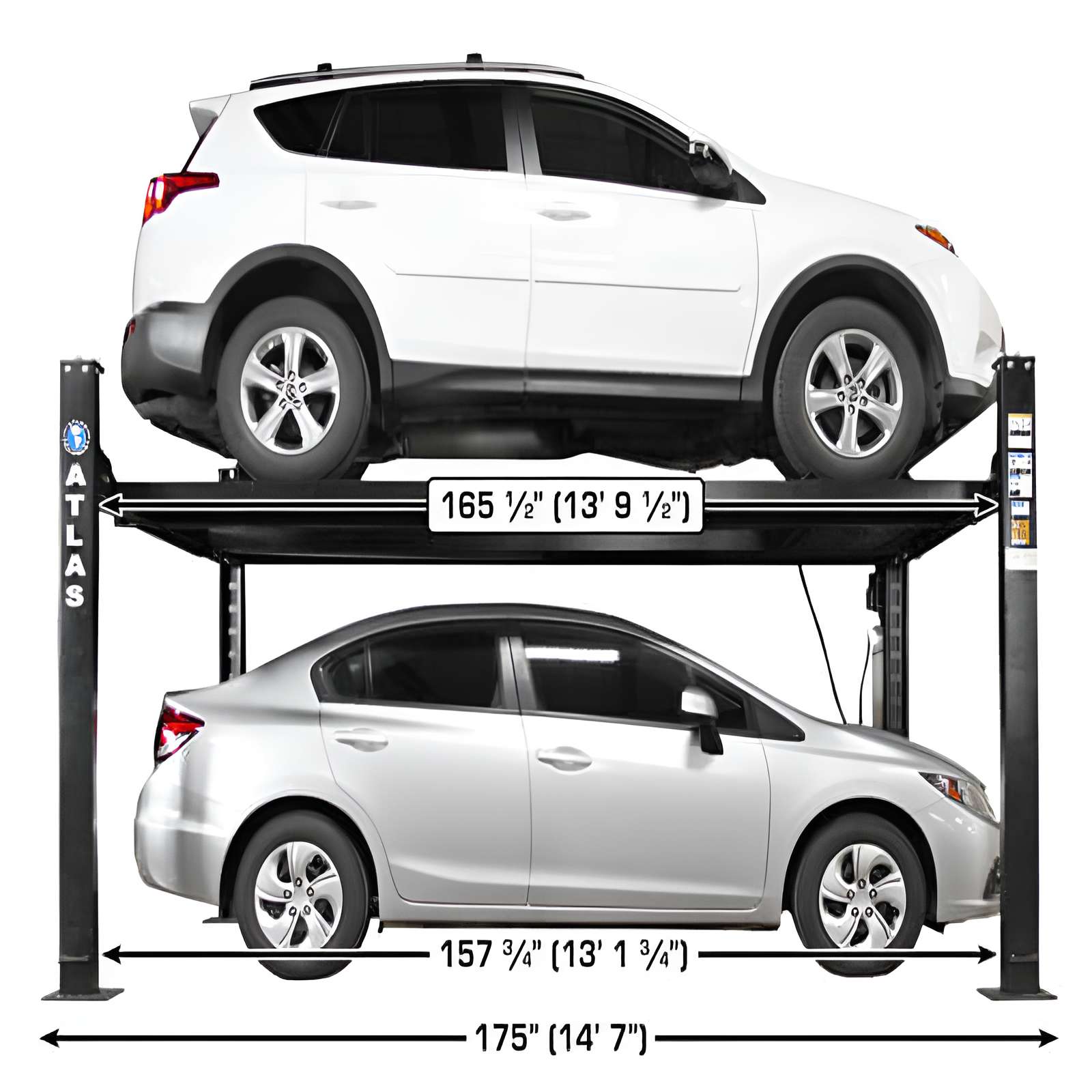

Runway Length |
169 1/2" (14' 1 1/2") |
Runway Thickness |
4 1/3" |

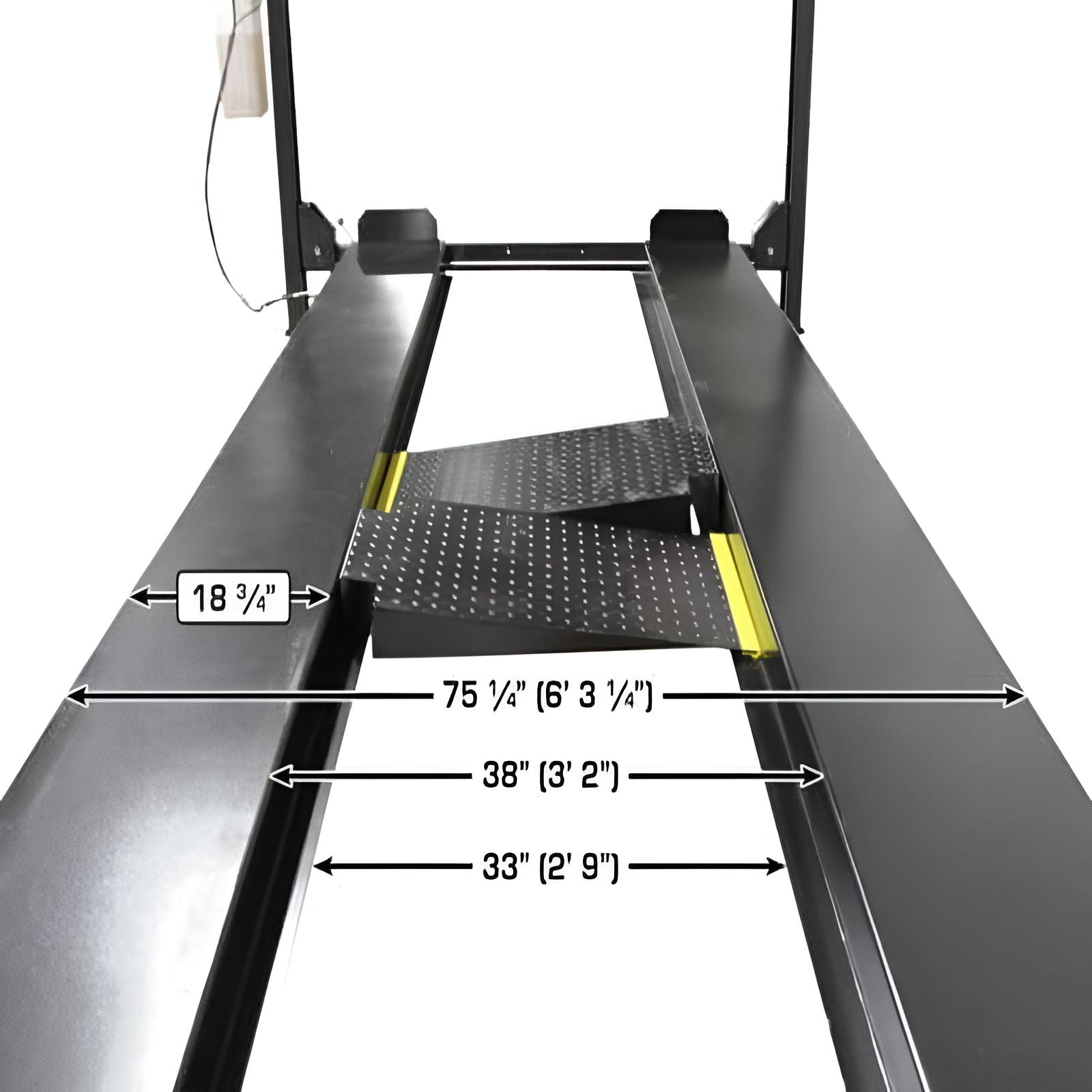

Width Between Runways |
38" (3' 2") |
Width Between Runway Rails |
33" (2' 9") |
Outside Runway to Outside Runway |
75 1/4" (6' 3 1/4") |
What's Included
86 5/8" (7' 2 5/8")
Steel Approach Ramps Included
Wheel Stops Included
Two Wheel Chocks Included

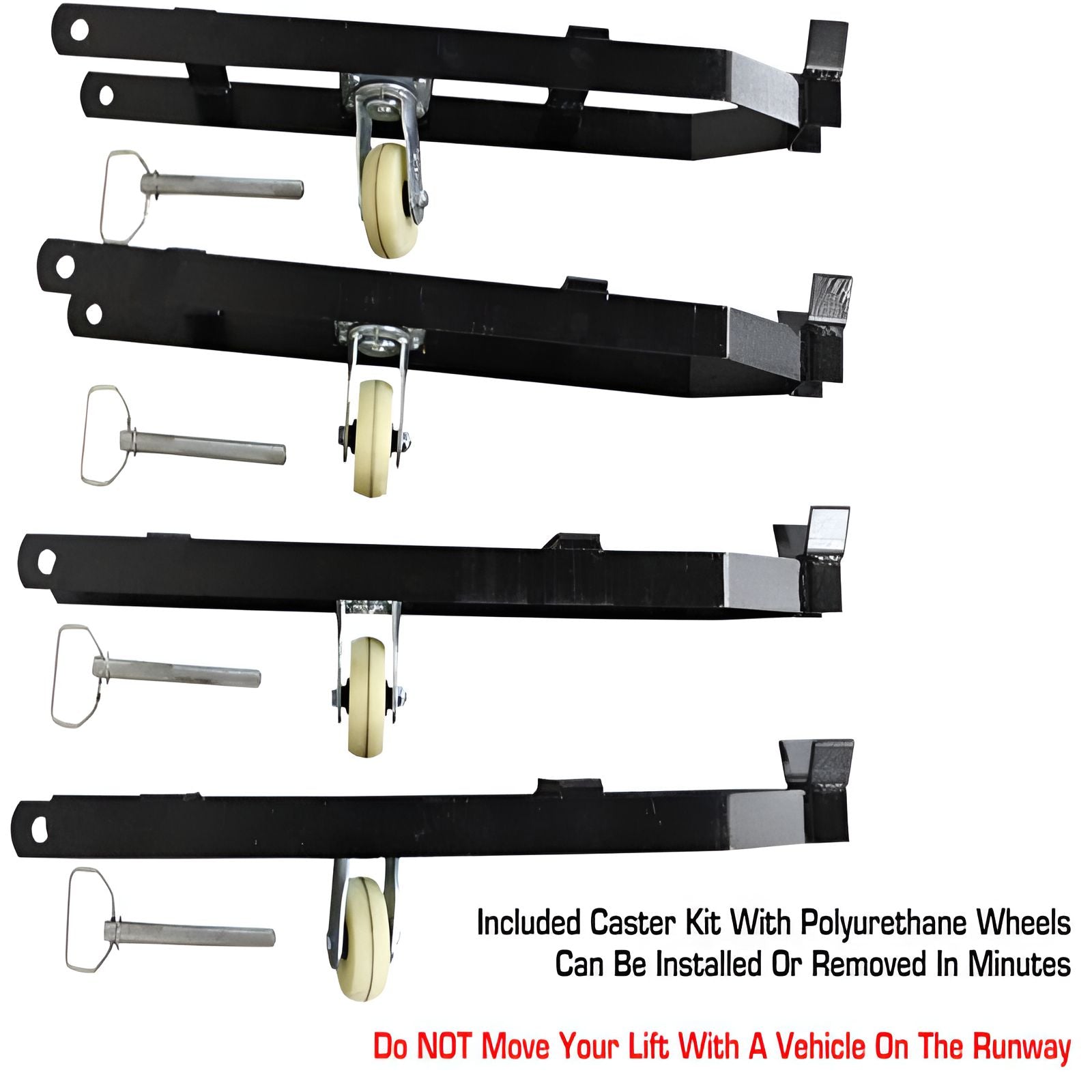

Caster Kit with Polyurethane wheels Included
Safety Features
Single Point Lock Release -- included as a built-in safeguard for safe day-to-day operation.
Lock Ladder Design -- included as a built-in safeguard for safe day-to-day operation.
Double Lock Safety System -- included as a built-in safeguard for safe day-to-day operation.
Wheel Stops Included -- included as a built-in safeguard for safe day-to-day operation.
Installation Requirements
Concrete requirements: Concrete Requirements: Minimum of 4.5"-3000psi
Electrical requirements: Confirm voltage and phase requirements with your installer before delivery.
Installation difficulty: Professional installation is recommended for anchoring, alignment, and safety-system checks.
Estimated installation time: Not specified by the manufacturer; your installer can provide a time estimate based on your site.
Shipping Information
Warehouse pickup: due to this item's size, it ships free of charge to the nearest available warehouse pickup location rather than to a home or business address.
Full details, including which locations are available, are covered in our Shipping Policy.
Questions before you order? Call +1 (623) 850-3643 or email support@triumphliftsus.com.
Warranty
This lift is covered by the manufacturer's warranty: 2 yr Hydraulic Warranty – Parts Only. Keep your invoice on hand, as it's required for any warranty service or claims.
Why Buy From Our Store
Free nationwide shipping, including free forklift delivery on qualifying orders
Secure checkout on every order
Expert customer support from a real, US-based team
Manufacturer warranty honored on every lift we sell
Fast order processing and shipment
Reliable service from a family-owned business
Trusted, name-brand automotive lift equipment
Responsive support by phone, text, or email
Frequently Asked Questions
Do I need special electrical work?See the Motor/Power specification above; an electrician can confirm compatibility with your setup.
Can I install this myself?Professional installation is recommended for correct anchoring and safety-system function.
Is there a warranty?Yes, covered by the manufacturer's warranty; terms are included with your order.
How does shipping work?This item ships free to the nearest warehouse pickup location due to its size -- see our Shipping Policy.
What's included?See the What's Included section above for the full list.
How much does it cost?Current pricing is $3,684.45 -- the price shown at checkout is always accurate.
Can I return this if it doesn't fit my space?Yes, our standard 30-day return policy applies; buyer covers return shipping.
