Amgo OHX 10 10,000lb 2 Post Car Lift
Amgo OHX 10 10,000lb 2 Post Car Lift
Amgo OHX 10 10,000lb 2 Post Car Lift

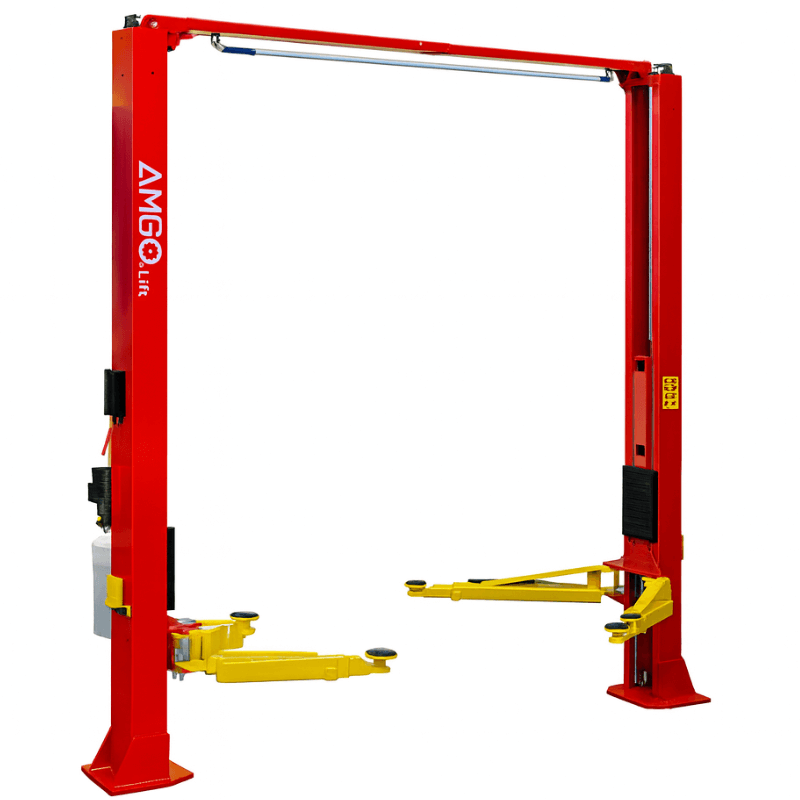

OHX-10 2 Post Car Lift by Amgo Looking for a versatile two-post lift that’s easy to install, easy to maintain, and built for everyday shop use? The AMGO OHX-10 Clear Floor Two Post Lift delivers reliable 10,000-lb lifting power with a thoughtfully engineered structure designed to simplify ownership from day one. Built with single-piece columns, a split-structure top beam, and extra-long carriages, this lift reduces installation complexity while improving long-term serviceability. Ideal for workshops and garages with ceiling heights over 12 ft, the OHX-10 also supports optional width extensions for added flexibility.
Rated for 10,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
What sets this two post lift apart within its category is the combination of rated capacity, documented specifications, and the safety engineering detailed below -- the kind of details worth checking before you commit to any two post lift.
Key Benefits
10,000-lb lifting capacity
Dual hydraulic direct-drive cylinders built to high standards
Super Asymmetric arms allow symmetric or asymmetric loading for better door clearance
Single-point manual safety lock release unlocks both columns from one side
Clear-floor design provides unobstructed floor use
Overhead safety shut-off device for maximum vehicle protection
Single-piece column design for easier installation
Self-lubricating UHMW polyethylene sliders
Features Explained
Highlights that shape this lift's day-to-day performance:
10,000-lb lifting capacity
Dual hydraulic direct-drive cylinders built to high standards
Super Asymmetric arms allow symmetric or asymmetric loading for better door clearance
Single-point manual safety lock release unlocks both columns from one side
Clear-floor design provides unobstructed floor use
Overhead safety shut-off device for maximum vehicle protection
Ideal Applications
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Compatible Vehicles
Based on its specifications, this two post lift is suited to passenger cars, SUVs, and light-to-medium trucks up to its 10,000 lb rated capacity. Vehicles near the upper weight limit should be checked against their actual curb weight before use.
Technical Specifications
Specification |
Details |
Model |
OHX-10 |
Lifting Capacity |
10,000 lbs |
Lifting Time |
57s |
Overall Height |
144″ |

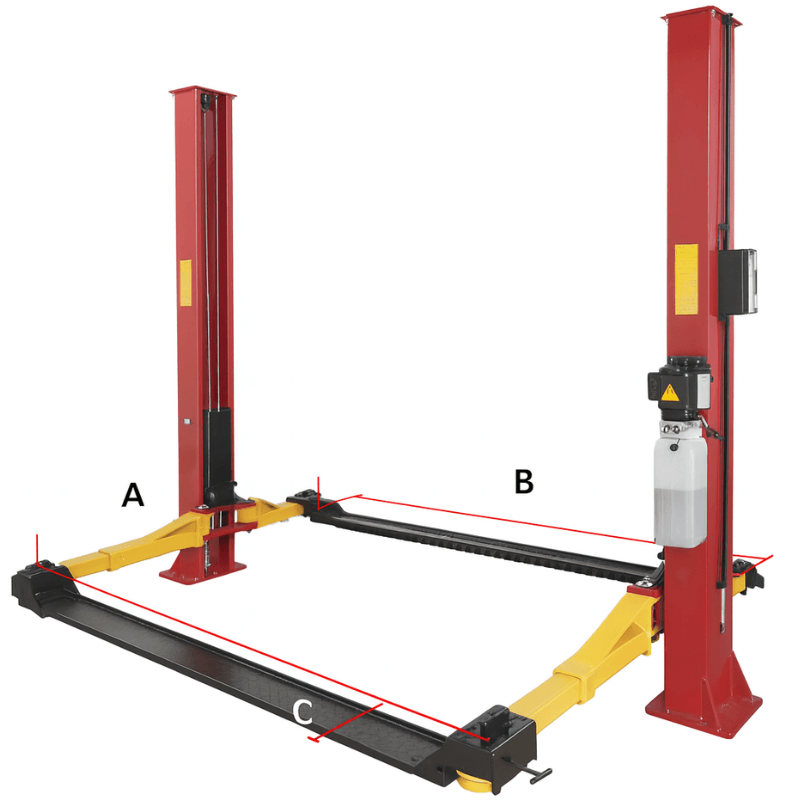

Overall Width |
134 15/16″ (140 7/8″ with width extension) |
Drive-Thru Clearance |
99 13/16″ (105 11/16″ with width extension) |
Width Between Columns |
112 1/4″ (118 1/8″ optional) |
Minimum Pad Height |
3 9/16″ |
Motor |
2.0 HP (220V) - Requires Double 30amp Breaker |
Concrete Requirements |
Minimum of 4"-3000psi |
Shipping Dimensions |
146"L x 18"W x 31"H - 1587 lbs |
LED Lights |
No. 20101 (plus extension cable 20103) |
Width Extension Kit |
No. 21004 (Adds 5-7/8" in width) |
Capacity |
9,000lb (4 wheels); 6,000lb (3 wheels) |
What's Included
Detachable toe guard and tool tray included
3″ extension adapters included
Safety Features
Single-point manual safety lock release unlocks both columns from one side -- included as a built-in safeguard for safe day-to-day operation.
Overhead safety shut-off device for maximum vehicle protection -- included as a built-in safeguard for safe day-to-day operation.
Automatic arm restraints for added safety -- included as a built-in safeguard for safe day-to-day operation.
Installation Requirements
Concrete requirements: Concrete Requirements: Minimum of 4"-3000psi
Ceiling clearance: ceiling heights over 12 ft, the OHX-10 also supports optional width extens
Electrical requirements: Confirm voltage and phase requirements with your installer before delivery.
Installation difficulty: Professional installation is recommended for anchoring, alignment, and safety-system checks.
Estimated installation time: Not specified by the manufacturer; your installer can provide a time estimate based on your site.
Shipping Information
Warehouse pickup: due to this item's size, it ships free of charge to the nearest available warehouse pickup location rather than to a home or business address.
Full details, including which locations are available, are covered in our Shipping Policy.
Questions before you order? Call +1 (623) 850-3643 or email support@triumphliftsus.com.
Warranty
This lift is covered by the manufacturer's warranty. Specific terms and coverage details are provided with your order -- keep your invoice on hand, as it's required for any warranty service or claims.
Why Buy From Our Store
Free nationwide shipping, including free forklift delivery on qualifying orders
Secure checkout on every order
Expert customer support from a real, US-based team
Manufacturer warranty honored on every lift we sell
Fast order processing and shipment
Reliable service from a family-owned business
Trusted, name-brand automotive lift equipment
Responsive support by phone, text, or email
Frequently Asked Questions
What is the weight capacity?This two post lift is rated for 10,000 lb.
Do I need special electrical work?See the Motor/Power specification above; an electrician can confirm compatibility with your setup.
Can I install this myself?Professional installation is recommended for correct anchoring and safety-system function.
Is there a warranty?Yes, covered by the manufacturer's warranty; terms are included with your order.
How does shipping work?This item ships free to the nearest warehouse pickup location due to its size -- see our Shipping Policy.
What's included?See the What's Included section above for the full list.
How much does it cost?Current pricing is $1,980 -- the price shown at checkout is always accurate.
Can I return this if it doesn't fit my space?Yes, our standard 30-day return policy applies; buyer covers return shipping.
More About This Two Post Lift
Choosing the right two post lift comes down to matching capacity, build quality, and installation requirements to how it will actually be used. The Amgo OHX 10 10,000lb 2 Post Car Lift is a two post lift, which lifts from the vehicle's frame or designated lift points -- a space-efficient choice that leaves the floor beneath the vehicle completely open for full underbody access. With a 10,000 lb capacity, it's built as serious car lift equipment rather than a bargain compromise. As auto lift equipment, it's engineered for repeatable, dependable performance rather than occasional light-duty use -- the kind of durability that separates a dependable automotive lift from equipment that cuts corners on materials or safety engineering. Combined with free nationwide shipping (or warehouse pickup on oversized models), a manufacturer warranty on every unit, and support from a real US-based team, this two post lift is a well-rounded choice for a first home garage bay or a working shop floor.
Ready to add reliable, professional-grade lifting capacity to your garage or shop? Order the Amgo OHX 10 10,000lb 2 Post Car Lift today, backed by free shipping or warehouse pickup, a manufacturer warranty, and support from our team from checkout through delivery.
