Original price was: $65,199.00.$54,270.00Current price is: $54,270.00.

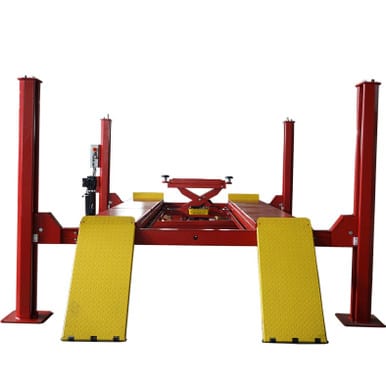

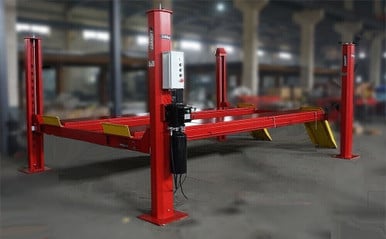

The KT-4H150 Four-Post Alignment Lift is a robust and highly capable solution built for serious automotive professionals. It delivers an impressive 15,000 LB (approximately 6,804 kg) lifting capacity, making it ideal for heavy-duty maintenance and comprehensive alignment work on commercial vehicles and large trucks. This lift is engineered with rigorous safety features and holds **CE certification**, confirming its adherence to stringent European safety standards with testing at 115% dynamic and 150% static load capacities.
A key feature of this lift is the included 6,000 LB (approximately 2,721 kg) rolling jack, which significantly enhances lifting flexibility by allowing individual axle lifting for wheel service or additional undercarriage access. The KT-4H150 is also **turntable-ready**, providing seamless integration for optional alignment turntables to facilitate full four-wheel alignment capabilities. Its design offers flexible installation options, including a **reversible power column** that can be installed at the front, rear, left, or right, allowing for optimal shop layout and workflow efficiency.
Durability is built into the KT-4H150 with **diamond plate platforms** that provide a non-skid surface for enhanced safety, complemented by adjustable lock ladders for secure positioning. Safety is further reinforced by a **single-point manual safety lock release system** with four mechanical locking devices and **secondary safety locks** at each corner, ensuring fail-safe operation. The lift is powered by a high-performance 3KW motor, available in 220V or 110V options, providing efficient and reliable lifting. With its robust construction and certified reliability, the KT-4H150 is a powerhouse addition designed to enhance the productivity and capabilities of any professional automotive shop.
- 15,000 LB (6,804 KG) Lifting Capacity: Capable of easily handling commercial vehicles and large trucks.
- CE Certified Safety: Tested at 115% dynamic and 150% static load capacities for superior reliability.

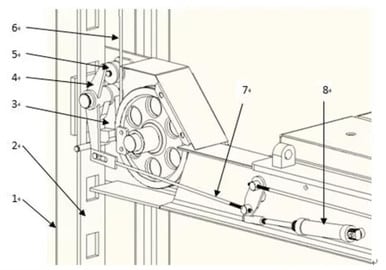

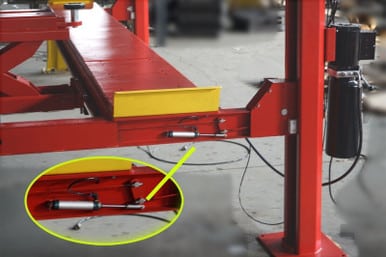

- Manual Safety Lock Release: Single-point manual system with 4 mechanical locking devices for secure positioning.
- Secondary Safety Locks: Reinforced fail-safes at each corner provide enhanced security.
- Diamond Plate Platforms: Non-skid surface with adjustable lock ladders ensures vehicle stability.
- Included Rolling Jack: A 6,000 LB capacity rolling jack for enhanced lifting flexibility and individual axle access.
- Turntable-Ready Design: Compatible with optional alignment turntables for full wheel alignment capabilities.

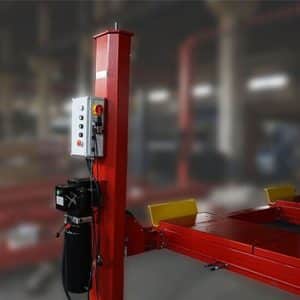

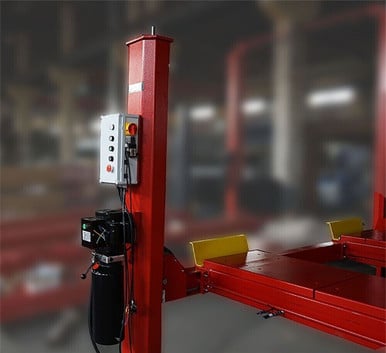

- Reversible Power Column: Allows for flexible installation (front/rear or left/right) to optimize shop layout.
- High-Performance Motor: 3KW motor with available 220V or 110V options for efficient operation.
- Durable Construction: Built for professional use and long-term reliability.

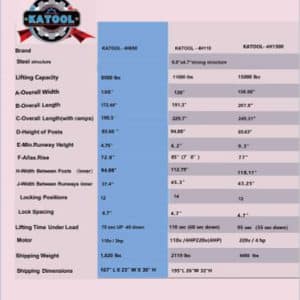

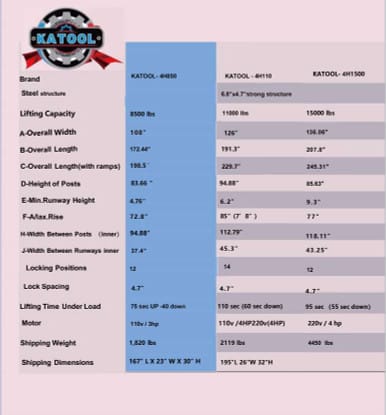

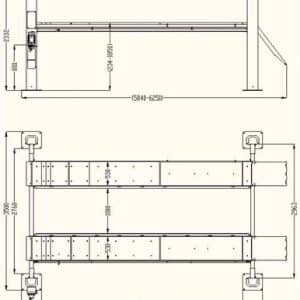

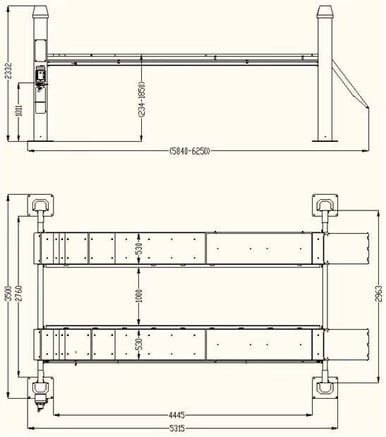

| Lift Model | KT-4H150 |
| Lifting Capacity | 15,000 lbs (6,804 KG) |
| Max Lifting Height | 92.52″ (2,350 mm) |
| Lifting Time (Up) | 95 seconds |
| Lifting Time (Down) | 55 seconds |
| Height of Posts | 85.63″ (2,175 mm) |
| Width Overall | 136.06″ (3,456 mm) |
| Length Overall (with ramps) | 245.31″ (6,231 mm) |
| Distance Between Columns | 118.11″ (3,000 mm) |
| Minimum Runway Height | 9.3″ (236 mm) |
| Motor | 3KW, 220V/60HZ/1PH (110V optional) |
| Net Weight | 4,850 lbs (2,200 KG) |
| Rolling Jack Capacity | 6,000 LB (2,721 kg) |
| Concrete Requirement | Minimum 5.9″ (150 mm) thick at 3,000 PSI (reinforced) |
| Warranty | 12-month all-parts warranty |
| Lifting Capacity | 15, 000 LB |
|---|---|
| Power / Voltage | 220V |
| Lift Type | 4-Post Lift |
| Certification | CE Certified |
