Longer Runways for Semi-Trucks and More

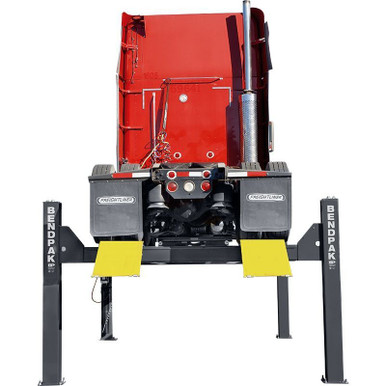

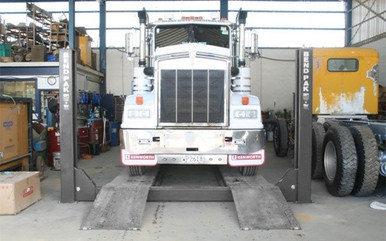

The BendPak HDS-27X is a heavy-duty four-post lift specifically designed for commercial lifting solutions involving semi-trucks, city buses, stretch limousines, and other massive municipal vehicles. With an impressive 27,000-lb. (12,247 kg) lift capacity and super-long 317.5-inch (806.5 cm) runways, this lift can easily accommodate vehicles that standard lifts cannot. Investing in specialized equipment like the HDS-27X allows workshops to service commercial fleets, a market segment with less competition, and establish dominance in the heavy-duty maintenance industry.
- **27,000 lbs. Capacity:** Designed for lifting large commercial vehicles, including semi-trucks, city buses, and more.

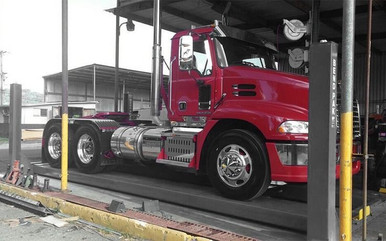

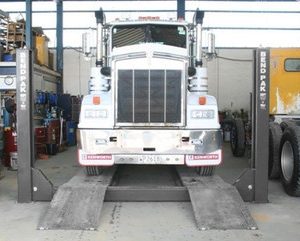

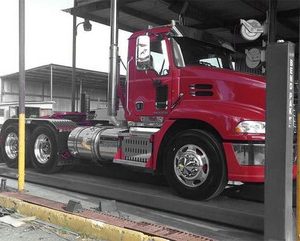

- **Extended Runways:** Massive 317.5-inch (806.5 cm) long runways provide ample space and a clean approach for oversized vehicles.
- **High Lifting Height:** Runways rise 58.25 inches (148 cm) in the air, allowing operators to work in a comfortable standing position.

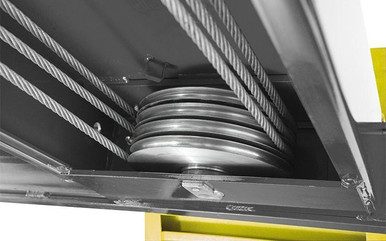

- **Dual-Hub Cable Sheaves:** Features large 12-inch (30.5 cm) diameter sheaves with 4-inch (10.2 cm) sheave axles to reduce wear and extend the lift’s lifespan.
- **Large Base Plates:** Substantial 12-inch x 12-inch (30.5 x 30.5 cm) base plates provide maximum structural integrity and stability for the columns.

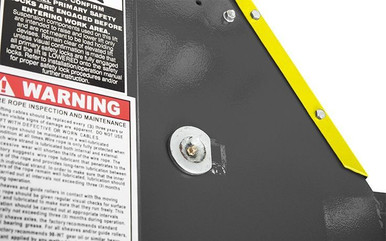

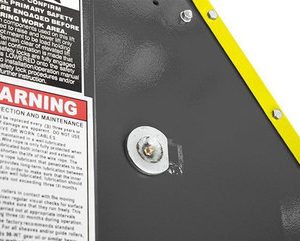

- **Spring-Loaded Safety Locks:** Multiple lock positions engage automatically as the lift rises and release instantly upon descent, controlled by a built-in flow divider to maintain level runway movement.
- **Secondary Lock System:** An additional safety mechanism that catches runways in the unlikely event of excess cable slack, keeping the vehicle level and secure.

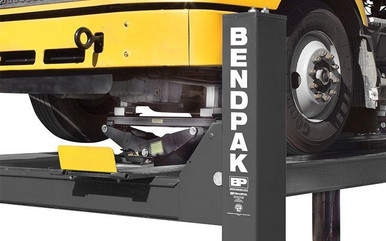

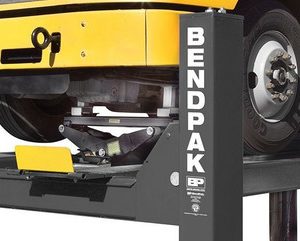

- **Optional Rolling Bridge Jacks:** Available to raise vehicle wheels above the runways, providing full access for wheel service without the need for additional space-consuming machinery.
- **ALI Certified:** Ensures compliance with rigorous safety and performance standards.
Detailed specifications for the BendPak HDS-27X can be downloaded via the manufacturer’s provided document:
Key specifications highlighted in the description include:
- **Capacity:** 27,000 lbs. (12,247 kg)
- **Runway Length:** 317.5 inches (806.5 cm)
- **Runway Rise (Lift Height):** 58.25 inches (148 cm)
- **Cable Sheave Diameter:** 12 inches (30.5 cm)
- **Cable Sheave Axle Diameter:** 4 inches (10.2 cm)
- **Base Plate Dimensions:** 12 inches x 12 inches (30.5 x 30.5 cm)
- ALI Certified Lift Search
- A Study In Lift Design: Lift Comparisons And More
- Electrical & Utility Requirements
- Concrete Specs: Minimum Floor Requirements
- Specifications Download (PDF)
- Warranty: Covered By 5-2-1 Warranty
- Balancing Safety: Finding Center Of Balance
- Best Car Lift Guide: Introduction To Car Lift Types
- Things To Know: Before Buying A Car Lift
