HDS-27

Construction, Municipal and Commercial Vehicles Welcome

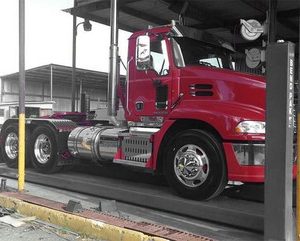

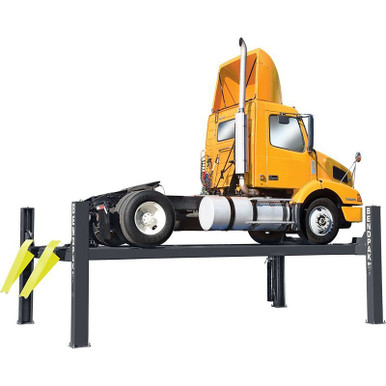

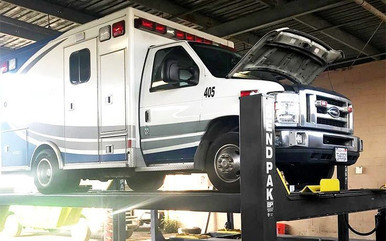

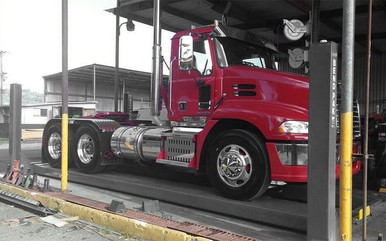

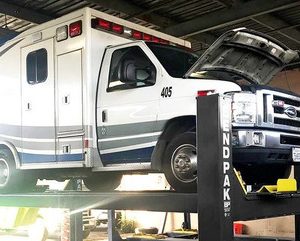

The BendPak HDS-27 represents a significant leap into heavy-duty lifting, moving beyond typical private vehicle needs. This robust four-post garage lift is engineered to handle an extensive range of massive vehicles, including construction equipment, commercial flatbed trucks, concrete mixers, garbage trucks, and buses. With a commanding 27,000-lb. (12,247 kg) lift capacity, the HDS-27 ensures that even the most substantial commercial and municipal vehicles can be serviced efficiently and safely. BendPak’s commitment to over-engineering guarantees that this truck lift will perform reliably without undue strain, helping your business maintain and service large fleets with ease.

• **27,000 lbs. Capacity:** Capable of lifting a wide variety of heavy-duty commercial and municipal vehicles.
• **Extended Runways (Optional HDS-27X):** Available with longer runways to accommodate vehicles with diverse and wide wheelbases, preventing chassis damage during loading.

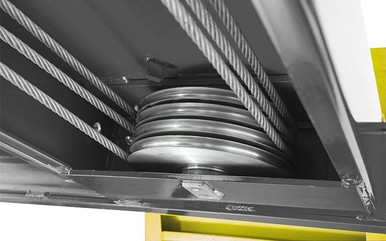

• **Dual-Hub Cable Sheaves:** Features massive 12-inch (30.5 cm) diameter sheaves and 4-inch (10.2 cm) diameter sheave axles, significantly extending the lift’s lifespan by reducing wear on critical components. Meets or exceeds ALI standards.
• **Heavy-Duty Aircraft Cable:** Equipped with four 1/2-inch (1.27 cm) diameter, 6 x 25 galvanized lifting cables, each with a 14,000-lb. (6,350 kg) breaking strength, ensuring maximum safety and resistance to rust, chemicals, and environmental factors.

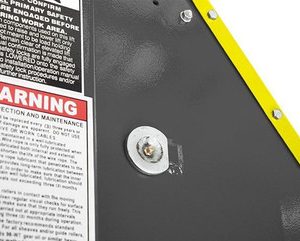

• **Built-in Lubrication:** Sheaves and sheave axles are fitted with grease nipples for automatic lubrication, minimizing periodic maintenance.
• **Flow Restrictor:** An integrated feature in the hydraulic cylinder that provides a safe, controlled slow descent, even in the rare event of a hydraulic hose rupture.
• **Large Base Plates:** Substantial 12-inch x 12-inch (30.5 x 30.5 cm) base plates provide robust support for the columns.
• **Spring-Loaded Safety Locks:** Engage automatically as the lift rises, with standard safety ladders adjustable to maintain level runways, especially useful on sloped floors.
• **Push-Button Pneumatic Lock Release:** Aircraft-quality steel and aluminum pneumatic cylinders allow for a single-push release of all locks, ensuring smooth and controlled descent.
• **Secondary Lock System:** A slack-cable lock acts as an additional safety measure in the unlikely event of cable failure, keeping the vehicle stable.
• **Integrated Design:** All working components, including cables, airlines, safety latches, and cable sheaves, are internally routed within the columns, protecting them from environmental damage and contributing to a clean aesthetic.
• **Adjustable Height Locking Positions:** Offers multiple locking heights to suit various vehicle types and operator comfort.
• **Electric-Hydraulic Power System:** Features ergonomic one-push button controls for easy raising, lowering, and system shutdown.
• **Flexible Protective Conduit:** Heavy-duty cables are encased in non-conductive, flexible tubing to prevent wear and electrical shocks.

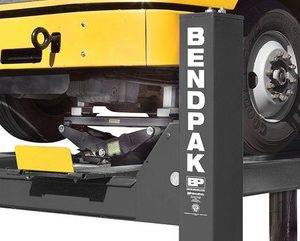

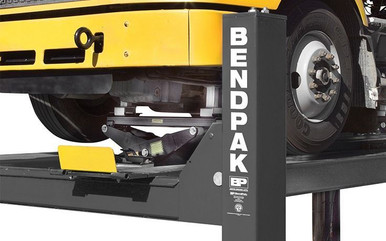

• **Optional Rolling Bridge Jacks:** Available to lift vehicle wheels off the runways for comprehensive wheel and brake service. Includes commercial-grade hydraulic pumps requiring 125 PSI and 10-20 CFM.
• **ALI Certified:** This product is certified to meet rigorous safety and performance standards. (Note: Not all BendPak models meet ANSI/ALI ALCTV-2011 or ANSI/UL 201 standards; consult www.autolift.org or BendPak for a complete list.)

Detailed specifications for the BendPak HDS-27 can be downloaded via the manufacturer’s provided document:

• Download the Latest Specifications (PDF)

Key specifications highlighted in the description include:

• **Capacity:** 27,000 lbs. (12,247 kg)
• **Cable Diameter:** 1/2 inch (1.27 cm)
• **Cable Breaking Strength:** 14,000 lbs. (6,350 kg) per cable
• **Sheave Diameter:** 12 inches (30.5 cm)
• **Sheave Axle Diameter:** 4 inches (10.2 cm)
• **Base Plate Dimensions:** 12 inches x 12 inches (30.5 x 30.5 cm)
• **Rolling Bridge Jack Hydraulic Pump Requirement:** 125 PSI and 10-20 CFM
