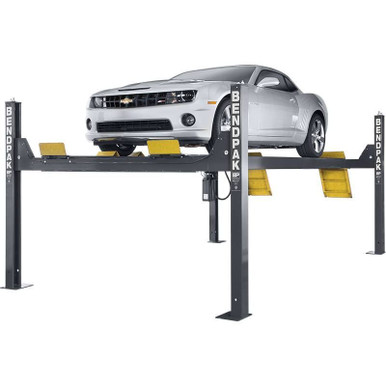

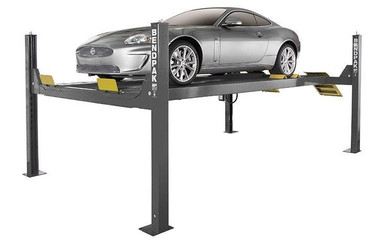

HDS-14 Four-Post Car Lift: No Such Thing as Overboard
The BendPak HDS-14 four-post lift is meticulously engineered to meet the demanding requirements of professional lifting applications. It integrates a comprehensive suite of features designed to enhance durability, safety, and productivity, solidifying BendPak’s reputation as an industry leader. While competitors might consider some components as add-ons, BendPak includes them as standard, ensuring a superior and dependable lifting experience. This commercial-grade car lift is recognized globally for its reliability and quality, allowing users to focus on their work with complete confidence.
- **14,000 lbs. Capacity:** Engineered for professional lifting applications and capable of safely supporting 14,000-lb. vehicles.
- **Extended Runways:** Designed to safely accommodate vehicles with long wheelbases, preventing wear and tear during drive-on and off.

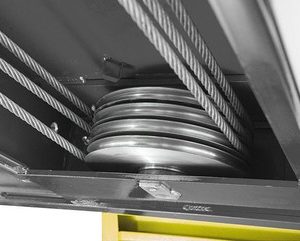

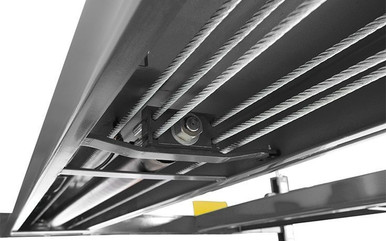

- **Dual-Hub Cable Sheaves:** Features massive 10.5-inch (26.7 cm) diameter cable sheaves and 2.25-inch (5.7 cm) diameter sheave axles to reduce stress, fatigue, and wear, significantly improving cable and critical component lifespan, leading to reduced service expenses.
- **Heavy-Duty Aircraft Cable:** Equipped with four 1/2-inch (1.27 cm) diameter, 6 x 25 stainless-steel lifting cables, each with a breaking strength exceeding 14,000 lbs. (6,350 kg). This aircraft-quality cable provides excellent abrasion resistance and fatigue prevention.
- **Flow Restrictor:** An integrated hydraulic flow restrictor ensures a controlled and safe descent, even in the unlikely event of a hose rupture.
- **Large Base Plates:** 10-inch x 12-inch (25.4 x 30.5 cm) base plates provide a robust and solid foundation for stability.
- **Spring-Loaded Safety Locks:** Automatically engage continuously during the lift’s ascent. Adjustable safety ladders allow for precise runway leveling, which is crucial for safety on sloped garage or service bay floors.

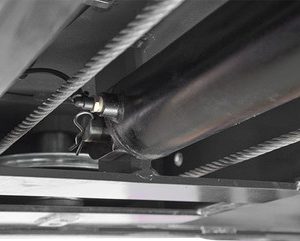

- **Push-Button Pneumatic Lock Release:** A simple push-button mechanism, utilizing aircraft-quality stainless steel and aluminum pneumatic cylinders, provides fast and trouble-free lowering operations.
- **Secondary Lock System:** Functions as a constant guard and slack-cable device, engaging to protect the lift platforms in the rare event of an unexpected cable failure.

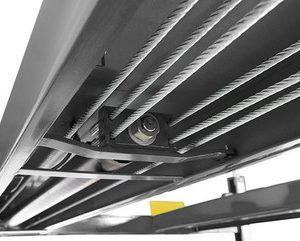

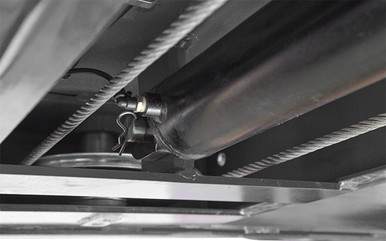

- **Integrated Design:** All lifting cables, airlines, safety latches, and sheaves are fully enclosed within the lift’s structure for protection from environmental factors, while remaining accessible for visual inspection.
- **Adjustable Height Locking Positions:** Each column features multiple height locking positions, allowing for variable-height parking and infinite leveling.
- **Electric-Hydraulic Power System:** A maintenance-free system ensures ultimate dependability, with all operator controls conveniently located for ease of use.
- **Longer Approach Ramps:** Designed with increased length to facilitate smoother loading of low ground-clearance vehicles.
- **Flexible Protective Conduit:** Hydraulic hoses and airlines are routed through flexible, non-metallic tubing, protecting against wear, damage, and electrical shocks.

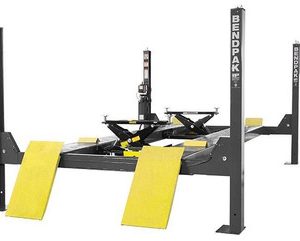

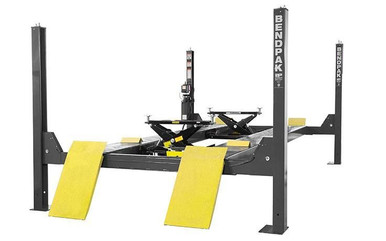

- **Optional Rolling Bridge Jacks (RJ7W):** Available 7,000-lb. (3,175 kg) capacity rolling jacks (model RJ7W) allow for raising the front or rear of a vehicle off the runways for efficient wheel and brake service. These jacks feature telescoping arms with frame contact pads, three safety-lock positions, stackable truck/van adapters, and a commercial-grade air-hydraulic pump (requiring max 125 PSI and 10-20 CFM).
- **ALI Certified:** Ensures compliance with rigorous safety and performance standards.
- **Extended Length (HDS-14X):** A longer version providing increased front-to-back clearance, ideal for limos, SUVs, and trucks.
- **Open-Front Design (HDSO14P):** Features an open front (no crossbar) for easy entry and exit beneath the vehicle, making front-end adjustments quicker and trouble-free; a must-have for busy service bays.
Detailed specifications for the BendPak HDS-14 can be downloaded via the manufacturer’s provided document:
Key specifications highlighted in the description include:
- **Capacity:** 14,000 lbs. (6,350 kg)
- **Cable Sheave Diameter:** 10.5 inches (26.7 cm)
- **Sheave Axle Diameter:** 2.25 inches (5.7 cm)
- **Lifting Cable Diameter:** 1/2 inch (1.27 cm)
- **Lifting Cable Breaking Strength:** Over 14,000 lbs. (6,350 kg) each
- **Base Plate Dimensions:** 10 inches x 12 inches (25.4 x 30.5 cm)
- **Rolling Bridge Jack Air-Hydraulic Pump Requirement:** Max 125 PSI and 10-20 CFM
- ALI Certified Lift Search
- A Study In Lift Design: Lift Comparisons And More
- Electrical & Utility Requirements
- Concrete Specs: Minimum Floor Requirements
- Specifications Download (PDF)
- Warranty: Covered By 5-2-1 Warranty
- Balancing Safety: Finding Center Of Balance
- Best Car Lift Guide: Introduction To Car Lift Types
- Things To Know: Before Buying A Car Lift
| Lifting Capacity | 14, 000 lb |
|---|---|
| Lift Type | 4-Post Lift |
| Certification | ALI Certified |
