HD-973PX

Patent Pending – Applied for in the U.S. and Abroad

Check it Out!

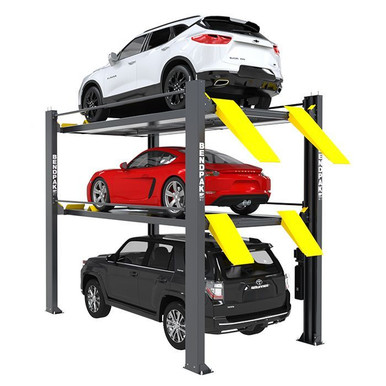

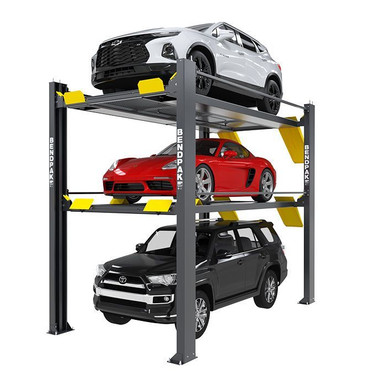

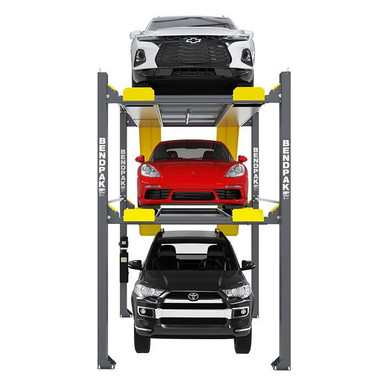

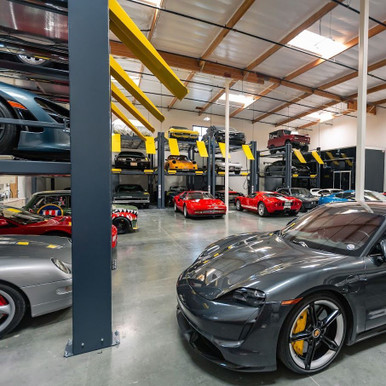

The tri-level BendPak HD-973PX is a four-post parking lift designed to maximize your parking capacity without requiring additional real estate. Each HD-973PX unit can house up to three vehicles on strengthened parking platforms, offering optimal space utilization. Compared to the HD-973P parking lift, the HD-973PX provides an additional 84 inches (213.4 cm) of overall height, making it suitable for some of the largest vehicles. This extra height, combined with an additional 10 inches (25.4 cm) of runway length, provides ample space for longer and taller vehicles, while maintaining a height that comfortably fits in most shops and garages. With the topmost platform’s weight capacity at a hefty 7,000 lbs. (3,175 kg) and the lower deck handling up to 9,000 lbs. (4,082 kg), the HD-973PX is ideal for lifting even heavy-duty vehicles like full-size trucks and SUVs.

This rugged design is suitable for both indoor and outdoor installation, instantly tripling your parking and storage capability. The user-friendly, top-of-the-line design ensures safe and efficient vehicle lifting, saving you time and worry. Standard BendPak safety features ensure your cars remain lifted until you move them, and the intuitive design allows for cycling through cars at the push of a button. With the HD-973PX, you get a lift that can park your taller and longer vehicles comfortably and safely wherever you need it most.

• **Tri-Level Parking:** Maximizes parking capacity by housing up to three vehicles in a single space.
• **Extended Height:** 84 inches (213.4 cm) additional overall height compared to the HD-973P, accommodating taller vehicles.
• **Extended Runway Length:** Additional 10 inches (25.4 cm) of runway length for longer vehicles.
• **Upper Platform Capacity:** 7,000 lbs. (3,175 kg).
• **Lower Deck Capacity:** 9,000 lbs. (4,082 kg).
• **Versatile Vehicle Accommodation:** Ideal for sedans, SUVs, and full-size trucks.
• **Indoor/Outdoor Installation:** Rugged design suitable for both indoor and outdoor environments.
• **Proprietary Design:** Shortened height columns allow the lift to fit in low ceiling spaces, with the lower space still yielding a full 70 inches (177.8 cm) of rise.
• **Independent Platforms:** Independently operated lifting platforms allow for varied vehicle heights and spacing, enabling the lowering of the bottom platform without disturbing the overhead vehicle.
• **Unmatched Protection:** Patent-pending design with multi-position safety locks spaced just four inches (10.2 cm) apart for unlimited parking height arrangements.
• **Redundant Safety Catches:** Anti-fall, spring-loaded safety catches immediately halt downward movement in case of cable failure.
• **Hydraulic Power:** Powerful hydraulic cylinder enclosed beneath each platform set, matched with high-strength lifting cables for simplicity and dependability.
• **Configurable for Drive-Thru Operation:** Allows for stacking as many as three deep for maximum efficiency.
• **Cost-Effective Construction:** Smart design requires less steel, saving buyers money while maintaining rigid safety standards.
• **Weight-Displacing Base:** Specially designed base frames distribute the load, suitable for installation on virtually any residential or commercial concrete floor (can be installed on asphalt with concrete footers).

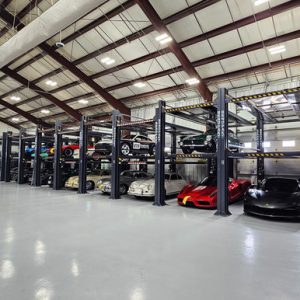

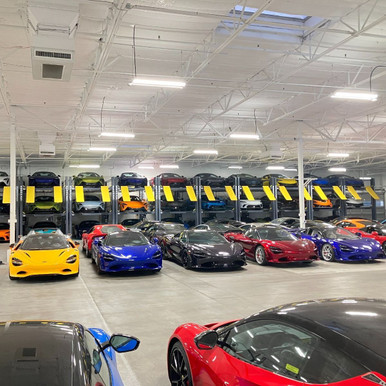

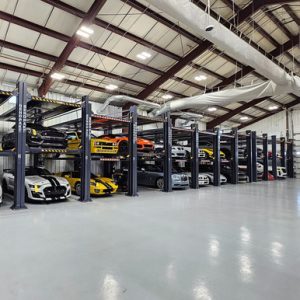

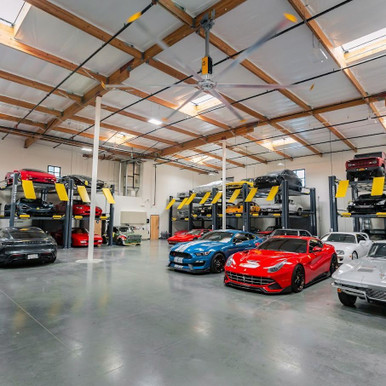

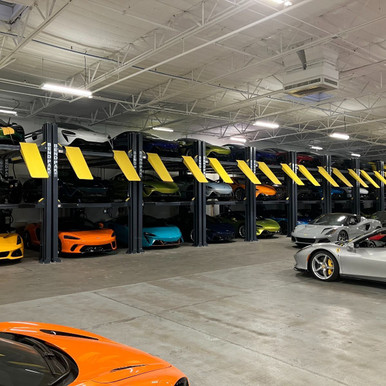

• **Configurable:** Can be configured as a stand-alone lift or combined into rows of multiple units.

Detailed specifications for the BendPak HD-973PX can be downloaded via the manufacturer’s provided document:

• Download the Latest Specifications (PDF)

Key specifications highlighted in the description include:

• **Upper Platform Capacity:** 7,000 lbs. (3,175 kg)
• **Lower Deck Capacity:** 9,000 lbs. (4,082 kg)
• **Overall Height Increase (vs. HD-973P):** 84 inches (213.4 cm)
• **Runway Length Increase:** 10 inches (25.4 cm)
• **Lower Space Rise:** 70 inches (177.8 cm)
• **Safety Lock Spacing:** 4 inches (10.2 cm)

• Check it Out! (YouTube) – This video provides an overview of how to operate the BendPak HD-973P/X Triple Stackers, specifically focusing on the process of loading and unloading vehicles. The presenter, Thomas Powers, who handles vehicle management and auto detailing at Barrett Automotive Group, demonstrates the controls and the steps involved in utilizing these three-car lifts.
