More Height in a 14,000-lb. Lift

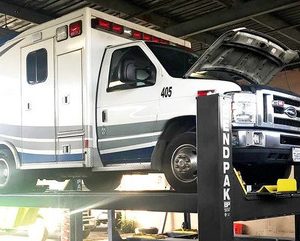

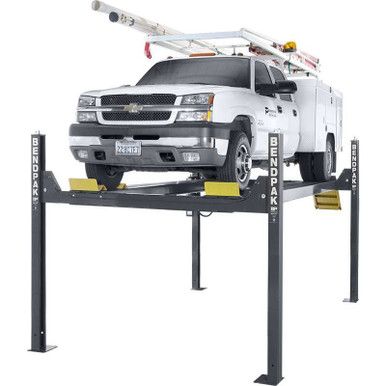

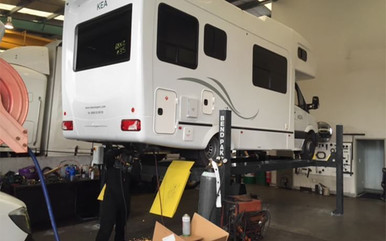

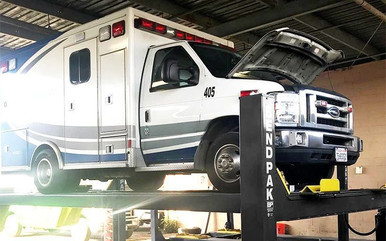

The BendPak HD-14T is a four-post car lift offering superior lifting power with an extended 82-inch (208.3 cm) rise, making it ideal for accommodating commercial fleets of trucks, vans, and large SUVs. This model allows service bays to impress customers by handling a wider variety of vehicles than the competition, regardless of their size.
- **14,000 lbs. Capacity:** Designed for heavy-duty lifting, suitable for large trucks, SUVs, and commercial vans.
- **Extended 82″ (208.3 cm) Rise:** Provides ample height for comfortable work underneath tall vehicles.
- **Extended Runways:** Long enough to handle large trucks and SUVs, with extended approach ramps to prevent damage to the vehicle’s undercarriage during loading.

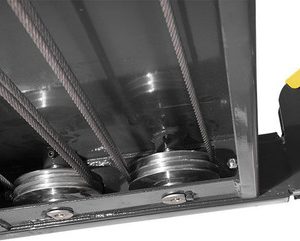

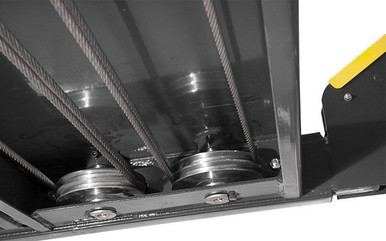

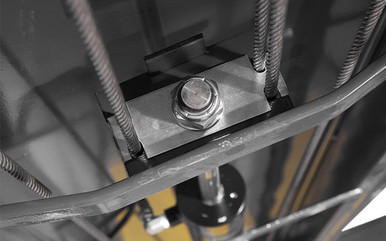

- **Dual-Hub Cable Sheaves:** Features large 6.5-inch (16.5 cm) diameter sheaves and 1.5-inch (3.8 cm) diameter sheave axles within the runway and cross tubes, reducing maintenance time and costs.
- **Heavy-Duty Aircraft Cable:** Includes four 1/2-inch (1.27 cm) diameter, 6 x 25 stainless-steel lifting cables, each with a breaking strength exceeding 14,000 lbs. (6,350 kg).
- **Built-in Lubrication:** Grease fittings on sheaves and sheave axles ensure proper and continuous lubrication of critical components.
- **Flow Restrictor:** An integrated flow restrictor ensures a slow, controlled descent in the rare event of hydraulic hose failure, maintaining runway levelness for maximum safety.
- **Large Base Plates:** 10-inch x 12-inch (25.4 x 30.5 cm) base plates provide a safe and stable foundation.

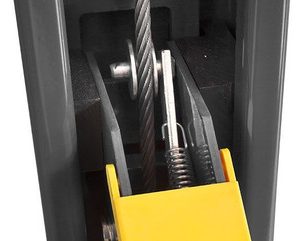

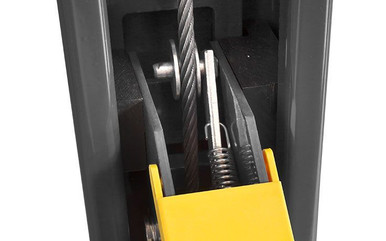

- **Spring-Loaded Safety Locks:** Automatic locks engage as the runways rise. Adjustable safety ladders ensure ramps are level, even on slightly sloped garage floors, adding to the lift’s versatility.

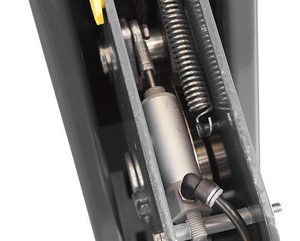

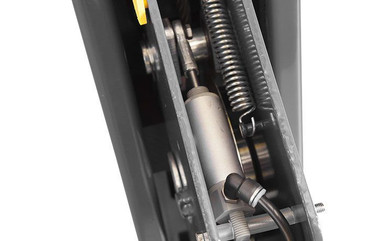

- **Push-Button Pneumatic Lock Release:** A simple push-button operation allows for easy lowering of the lift. Utilizes aircraft-quality stainless steel and aluminum pneumatic cylinders for durability.

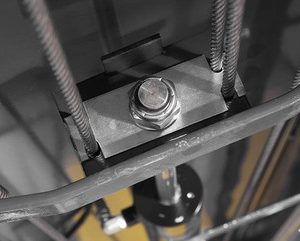

- **Secondary Lock System:** Features an essential backup slack-cable detection system, providing peace of mind by preventing catastrophic failure in the unlikely event of cable issues.
- **Integrated Design:** All internal components (cables, airlines, etc.) are hidden and protected from environmental damage and human interference.
- **Adjustable Height Locking Positions:** Multiple fully adjustable lock positions allow operators to set the working height for maximum convenience.
- **Electric-Hydraulic Power System:** A dependable, zero-maintenance system with all controls conveniently located at the operator’s fingertips.
- **Flexible Protective Conduit:** ALI-certified, non-metallic tubing protects cables and hoses from electric shocks, wear, and tear over time.
- **Optional Rolling Bridge Jacks:** Recommended 7,000-lb. (3,175 kg) capacity rolling jacks can be used to raise the vehicle’s wheels off the runways for wheel service. Two jacks can lift all four wheels simultaneously.
Detailed specifications for the BendPak HD-14T can be downloaded via the manufacturer’s provided document:
Key specifications highlighted in the description include:
- **Capacity:** 14,000 lbs. (6,350 kg)
- **Lift Rise:** 82 inches (208.3 cm)
- **Cable Sheave Diameter:** 6.5 inches (16.5 cm)
- **Sheave Axle Diameter:** 1.5 inches (3.8 cm)
- **Lifting Cable Diameter:** 1/2 inch (1.27 cm)
- **Lifting Cable Breaking Strength:** Over 14,000 lbs. (6,350 kg) each
- **Base Plate Dimensions:** 10 inches x 12 inches (25.4 x 30.5 cm)
- A Study In Lift Design: Lift Comparisons And More
- Electrical & Utility Requirements
- Concrete Specs: Minimum Floor Requirements
- Specifications Download (PDF)
- Warranty: Covered By 5-2-1 Warranty
- Balancing Safety: Finding Center Of Balance
- Best Car Lift Guide: Introduction To Car Lift Types
- Things To Know: Before Buying A Car Lift
| Lifting Capacity | 14, 000 lb |
|---|---|
| Lift Type | 4-Post Lift |
| Certification | ALI Certified |
