Original price was: $54,099.00.$45,030.00Current price is: $45,030.00.

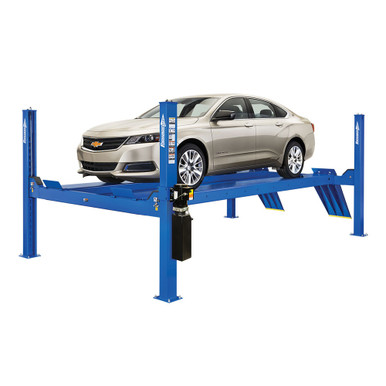

The Forward CR14 four-post lift is engineered to meet the comprehensive service needs of modern cars, vans, and trucks, boasting a robust 14,000 lbs. (6,350 kg) capacity. Its taller column design provides an impressive 79-inch (200.7 cm) rise height, offering technicians improved vehicle service access. This, coupled with multi-position lock components, enhances your shop’s flexibility.
The lift features an improved heavy-duty, high-performance cable and sheaves system, discreetly concealed under the runway for greater capacity and durability. This tucked-away system remains accessible for quick inspections and avoids snagging during work. A durable powder coat finish ensures the lift maintains its aesthetic appeal through years of service. Self-chocking approach ramps engage automatically when the lift is raised, and protective strips on the ramps prevent floor gouging. All Forward products undergo rigorous proof load testing to 1.5 times their rated capacity. This combination of high-quality products and service delivers exceptional value without compromising safety, functionality, or durability.
- **14,000 lbs. (6,350 kg) Capacity:** Designed for a wide range of cars, vans, and trucks.
- **Taller Column Design:** Provides an impressive 79-inch (200.7 cm) rise height for better service access.
- **Multi-Position Lock Components:** Enhances shop flexibility by allowing varied working heights.
- **Improved Heavy-Duty Cable and Sheaves System:** Concealed under the runway for increased capacity and durability, while remaining accessible for inspections.
- **Durable Powder Coat Finish:** Ensures long-lasting aesthetics and protection.
- **Self-Chocking Approach Ramps:** Engage automatically when the lift is raised for secure vehicle positioning.
- **Protective Strips on Ramps:** Prevents floor gouging.
- **Proof Load Tested:** All Forward products are tested to 1.5 times their rated capacity for ultimate safety.
- **Heavy-Duty Hydraulic Cylinder:** Provides reliable and powerful lifting.
- **Single Point Latch Release System:** Allows for simultaneous release of all locks for easy operation.
- **One-Piece Formed Runway Design:** Incorporates channels for rolling jacks (rolling jacks sold separately).
- **Multiple Position Latch Points:** Located in each structural leg for enhanced safety.
- **ALI Certified:** This lift is certified to meet industry safety and performance standards.
- 7,000 lbs. (3,175 kg) capacity rolling bridge jacks
- Drive-through ramps
- Internal airline kit
- Turning radius gauges
- Power unit cover
- 3-phase motor
| Specification | Value |
|---|---|
| Capacity | 14,000 lbs. (6,350 kg) |
| Rise | 78-3/4″ (2,000 mm) |
| Maximum Wheelbase | 182-1/2″ (4,635 mm) |
| Overall Length | 250″ (6,350 mm) |
| Overall Width | 131-3/4″ (3,346 mm) |
| Width Inside Columns | 116-1/4″ (2,953 mm) |
| Length Between Columns | 195-1/4″ (4,959 mm) |
| Overall Height | 90-1/2″ (2,299 mm) |
| Runway Width | 20″ (508 mm) |
| Runway Height | 7″ (178 mm) |
| Width Between Runways | 43″ (1,092 mm) or 46″ (1,168 mm) |
| Rise Time | 72 seconds |
| Voltage* | 208/230v (single phase standard) |
| Motor | 2HP |
| Minimum Bay Size | 15′ x 25′ (4,572 x 7,620 mm) |
|
* 3-phase available at additional cost |
|
- Product Manual/Brochure (PDF)
- A Study In Lift Design: Lift Comparisons And More
- Electrical & Utility Requirements
- Concrete Specs: Minimum Floor Requirements
- Warranty: Covered By 5-2-1 Warranty
- Balancing Safety: Finding Center Of Balance
- Best Car Lift Guide: Introduction To Car Lift Types
- Things To Know: Before Buying A Car Lift
| Lifting Capacity | 14, 000 lb |
|---|---|
| Power / Voltage | 230v |
| Lift Type | 4-Post Lift |
| Certification | ALI Certified |
