Dannmar D4-9 Package 9,000-lbs. Capacity ALI Certified Four-Post Lift Package

Dannmar D4-9 Package 9,000-lbs. Capacity ALI Certified Four-Post Lift Package - Image 2

Dannmar D4-9 Package 9,000-lbs. Capacity ALI Certified Four-Post Lift Package - Image 3

Dannmar D4-9 Package 9,000-lbs. Capacity ALI Certified Four-Post Lift Package - Image 4

Dannmar D4-9 Package 9,000-lbs. Capacity ALI Certified Four-Post Lift Package - Image 5

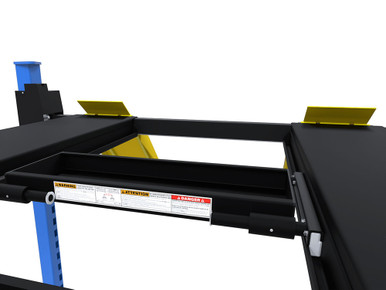

Dannmar D4-9 Package 9,000-lbs. Capacity ALI Certified Four-Post Lift Package - Image 6

Dannmar D4-9 Package 9,000-lbs. Capacity ALI Certified Four-Post Lift Package

Original price was: $7,899.27.Current price is: $7,345.16.

Description
Reviews (0)

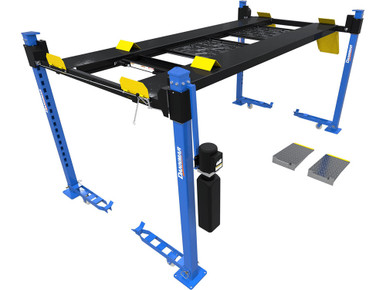

Dannmar’s D4-9 four-post lift features welded-steel construction, a long-lasting proven design, and a strong commitment to quality, safety, and value. The D4-9 four-post lift is built with the strength to lift very heavy vehicles up to 9,000 lbs. (4,082 kg) and boasts quick lifting speeds.

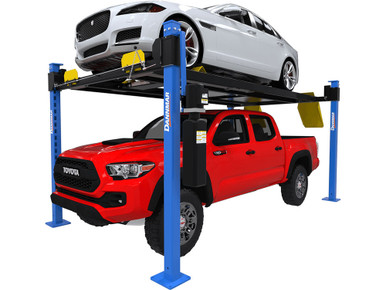

One of the D4-9’s best attributes is its ability to store a vehicle fully raised above the ground, while providing open space below. This means you gain valuable open floor space for repairs or additional storage, effectively offering both vehicle parking and ground storage within the same footprint.

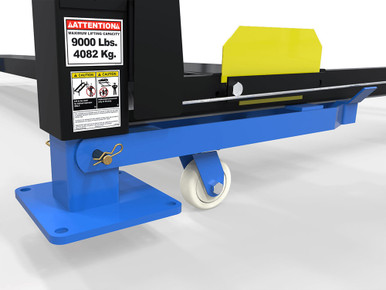

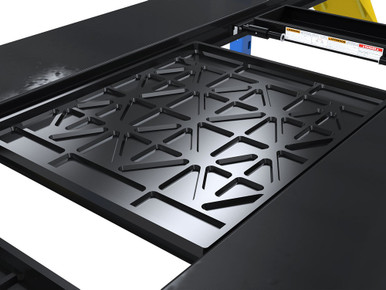

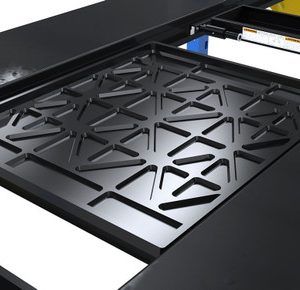

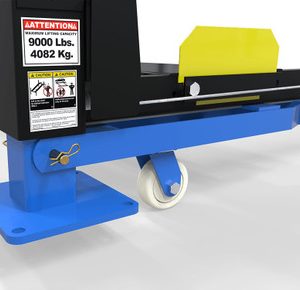

Each Dannmar D4-9 comes standard with four quick-mount casters for easy mobility across the floor. Also included are lightweight and tough polyethylene drip trays, a mobile jack tray, easily removable aluminum approach ramps, forward and rear-mounted hardened steel tire stops, and a set of hard-rubber wheel chocks.

A Fitting Idea

The D4-9 is efficiently sized to fit many home garages with limited space. Driving on is easy thanks to the lightweight, removable aluminum ramps, which also aid in avoiding undercar clearance issues. The lift’s multi-position locks further enhance flexibility. These features make Dannmar’s D4-9 design an ideal solution for concerns related to low-vehicle suspensions or shorter overhead heights. Dannmar’s D4-9 four-post car and light-duty truck lift can significantly expand your shop’s versatility.

Continuous Improvements

Dannmar has reinforced the boxed-steel columns to 4.75″ x 4.75″ (12.1 cm x 12.1 cm) for maximum strength and incredible resistance to twisting and flexing. This includes 5/8″ (1.6 cm) thick, 12″ x 12″ (30.5 cm x 30.5 cm) baseplates designed to enhance support loads on varying floor surfaces. The columns are surrounded by full-perimeter exterior steel sleeves that securely hold the lift columns, and this stability-enhancing design further reinforces the columns by cradling the steel sleeves to provide an interlock that improves overall firmness.

Multi-level locking positions

Multiple lift-parking positions allow you to engage your D4-9 four-post car lift at multiple heights, so you’re never stretching uncomfortably to work under the vehicle. Thirteen locking positions are placed every four inches (10.2 cm) to accommodate varying heights.

Heavy-Duty Aircraft Wire Rope

Every D4-9 car lift comes with four lifting wire ropes manufactured from superior-grade stainless steel, and each wire rope is rated to handle 14,000 lbs. (6,350 kg). This means the wire rope rating totals 700% of the lift’s rated capacity.

Automatic Safety Locks

Four, 3/4″ (1.9 cm) thick safety locks engage simultaneously as the D4-9 lift is raised. For safety’s sake, a secondary slack-cable lock system ensures instant back-up engagement in the unlikely event of a cable failure. At all times, locks are securely trapped by the full-perimeter cross tube sleeves and can’t become dislodged or disengaged.

Simple Operation

Easy operation and control with Dannmar’s D4-9 proven reliability, and you get a lift that delivers exceptional engineering, while getting the job done quickly—just 45 seconds to max rise!

Professionals You Can Depend On

Dannmar dealers and service providers are unsurpassed, delivering superior customer service, during and after your purchase. With every new lift you add to your fleet, Dannmar service providers make leading support programs available, including:

Genuine Dannmar OEM parts
Planned maintenance
Convenient national locations
Three-Year Warranty

When you purchase a new D4-9 four-post lift, you’re purchasing one of the best car lift models with exceptional value. Every D4-9 lift is covered by a complete warranty backed by Dannmar’s standard 3-year warranty. The D4-9 lift warranty guarantees that if any major component fails, it will be replaced. It’s that simple.

**Versatile Installation:** Designed to be either fastened to the floor or free-standing.
**Standard Accessories:** Comes with a mobile caster kit, drip trays, mobile jack tray, aluminum approach ramps, hardened steel tire stops, and hard rubber wheel chocks.
**Robust Column Construction:** Boxed-steel columns are made from structural 4.75″ x 4.75″ (12.1 cm x 12.1 cm) welded steel tubing.
**Strong Baseplates:** Columns feature 12″ x 12″ (30.5 cm x 30.5 cm) baseplates that are 5/8″ (1.6 cm) thick.
**Reliable Manual Dead-Bolt Locks:** Machined directly into the boxed-steel columns for reliability and safety.
**Automatic Safety Locks:** 3/4″ (1.9 cm) thick steel safety locks are spring-loaded for automatic and solid engagement.
**Extensive Locking Positions:** 13 positive locking positions spaced every 4 inches (10.2 cm).
**Secondary Slack-Cable Lock System:** Ensures instant back-up safety lock engagement in the event of a cable failure.
**Enhanced Stability:** Exterior steel sleeves with UHMV slides surround each column for positive contact and containment. Oversize baseplates and full-perimeter cross tube sleeves reduce lateral movement and sway when the lift is free-standing.
**Functional Runways:** Welded-steel runways feature utility rail for jack tray, drip trays, and other accessories.
**Integrated Flow Restriction:** Built-in flow restriction in the hydraulic cylinder prevents free-fall.
**Low-Profile Design:** Low-profile runways are only 5″ (12.7 cm) high to accommodate low ride-height vehicles.
**Durable Safety Lock Linkages:** Hardened steel safety lock linkages use 3/8″ (1 cm) molded carbon steel rod ends to reduce flex and twist, ensuring positive locking and smooth operation.
**Corrosion-Resistant Rod Ends:** Precision, reinforced rod ends with spherical bearings are protective coated for corrosion resistance and designed for low friction and high wear resistance.
**Thick Top Caps:** Features 5/8″ (1.6 cm) thick top caps.
**Drive-Through Capability:** Pull-out tire stops on both ends of the lift allow for drive-through functionality.
**High-Strength Lifting Cables:** Stainless steel lifting cables are rated to handle over 14,000 lbs. (6,350 kg) each.
**Simplified Installation:** Pre-assembled cables ease the installation process.

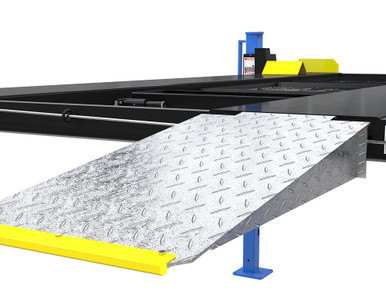

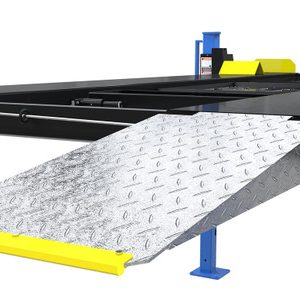

**Durable Approach Ramps:** 36″ (91.4 cm) aluminum approach ramps are gusseted to eliminate flex and bending.
**Secure Runway Attachment:** 3/4″ (1.9 cm) runway bolts provide positive attachment with an increased safety factor.
**Optional Aluminum Platforms:** Full-length aluminum platforms can be added for storing lawnmowers, ATVs, jet skis, or motorcycles.

(1) D4-9 four-post lift complete
(1) Caster Kit
(1) Set Plastic Drip Trays
(1) JP45 Sliding Jack Tray
(1) Set Aluminum Approach Ramps

Specification	Value
SKU#	5175319
Lifting Capacity	9,000 lbs. (4,082 kg)
Min. Runway Height	5” (127 mm)
Max. Rise	70” (1,778 mm)
Max. Lifting Height	75” (1,905 mm)
Height of Columns	89” (2,261 mm)
Drive-Thru Clearance	86” (2,184 mm)
Overall Width	114.5” (2,908 mm)
Width Between Columns	98” (2,489 mm)
Overall Length	203” (5,156 mm)
Outside Columns (Length)	176.5” (4,483 mm)
Width Between Runways	37.5” (953 mm)
Runway Centerline	53.75” (1,365 mm)
Outside Edge of Runways	72.5” (1,842 mm)
Runway Width	18.75” (476 mm)
Length of Runways	165.5” (4,204 mm)
Min. Wheelbase @ Rated Capacity	115” (2,921 mm)
Min. Wheelbase @ 75% Capacity	100” (2,540 mm)
Min. Wheelbase @ 50% Capacity	85” (2,159 mm)
Min. Wheelbase @ 25% Capacity	70” (1,778 mm)
Locking Positions	13 (spaced every 4” / 102 mm)
Time to Full Rise	60 seconds
Motor	110VAC, 50-60HZ, 1PH, 20A or 208-230VAC, 50-60HZ, 1PH, 25A

Every new D4-9 four-post lift is covered by a complete 3-year warranty. This warranty guarantees that if any major component fails, it will be replaced.

For more information, please refer to the product manual/brochure and other resources provided by Dannmar.
