Car lift
$2,682.00

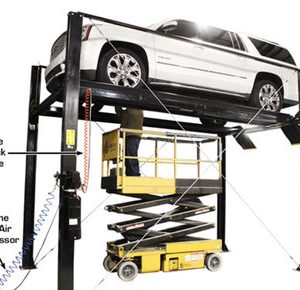

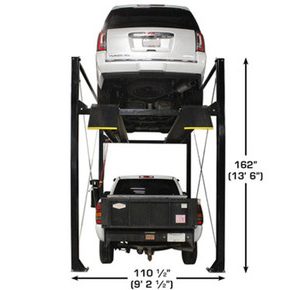

The Atlas ST-7000 Super Tall 4-Post Lift is an exceptional solution for automotive professionals and enthusiasts alike, designed to maximize vertical storage in high-ceiling garages and workshops. With a robust 7,000 lbs (3,175 kg) lifting capacity, this lift is engineered to safely elevate standard-height vehicles, allowing for the convenient storage of even extra-tall vehicles underneath. Its impressive lifting height of over 12 feet (144 inches) to the underside of the runway provides unparalleled clearance, making it ideal for stacking vehicles or performing undercarriage work with ample space.

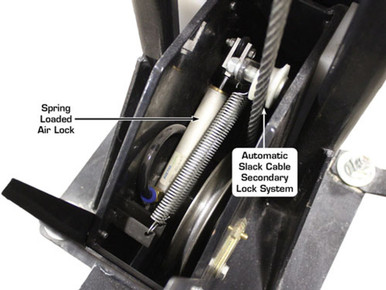

Built with the same heavy-duty runways found in the Atlas GP-9000, the ST-7000 ensures superior durability and stability. It features a versatile lock ladder design with 21 adjustable lock positions, allowing for precise customization of lifting heights during installation. Safety is paramount with this lift, which includes an air-operated, spring-activated single-point release mechanism for all four locks, conveniently located near the power unit. Furthermore, an integrated slack-cable emergency secondary lock system provides continuous standby protection, instantly activating if the aircraft cables are compromised, ensuring ultimate peace of mind. Please note: This item is currently out of stock in Ontario.
- 7,000 LB (3,175 kg) lifting capacity.

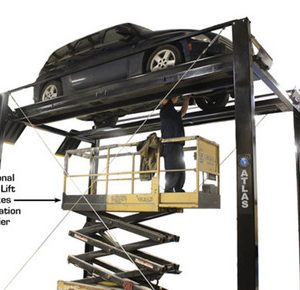

- Exceptional lifting height of over 12 feet (144 inches) for maximum vertical storage.
- Heavy-duty runways, shared with the Atlas GP-9000, for enhanced durability.

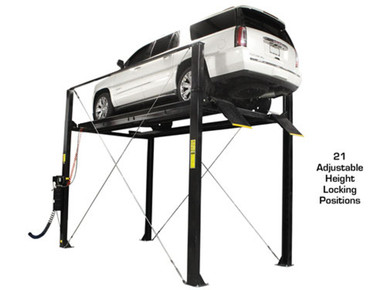

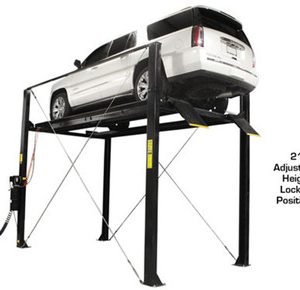

- Adjustable lock ladder design with 21 lock positions for customizable height settings.

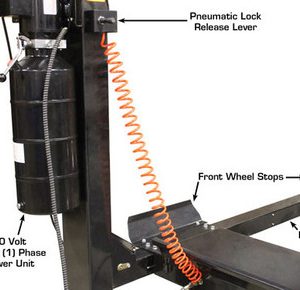

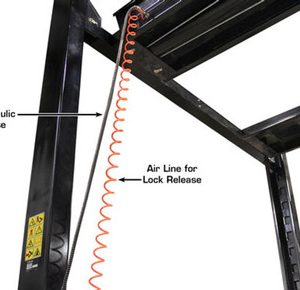

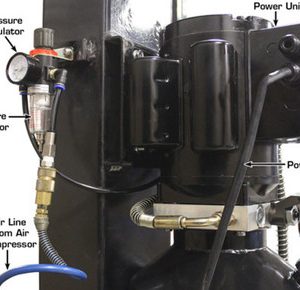

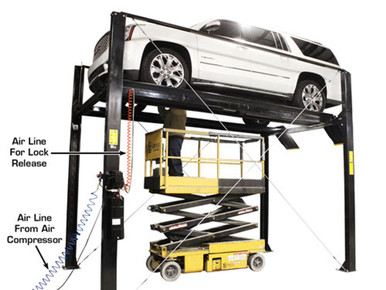

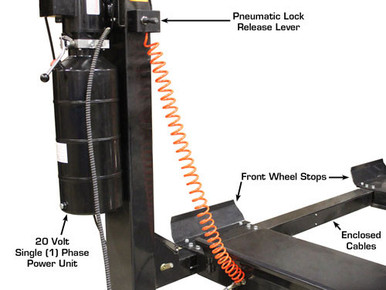

- Air-operated single-point release mechanism for quick and easy lock disengagement (requires compressed air).

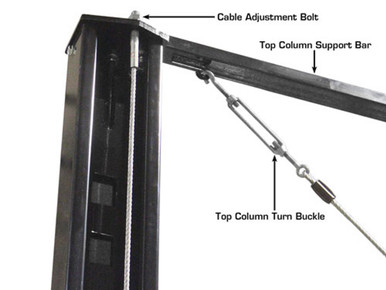

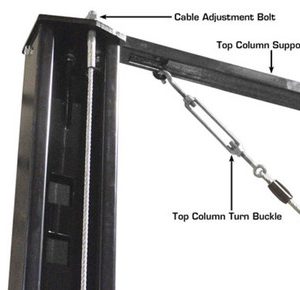

- Integrated slack-cable emergency secondary lock system for superior safety.
- Durable Atlas Powder Coat Finish for long-lasting protection.

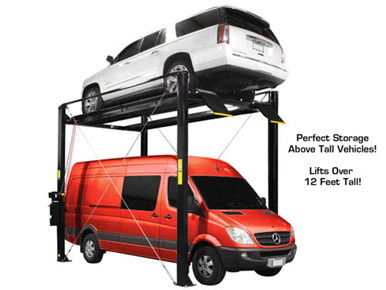

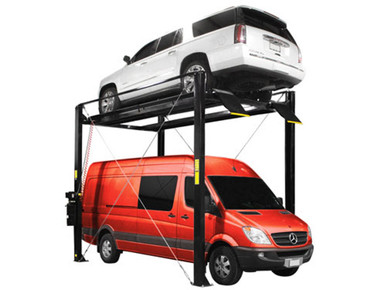

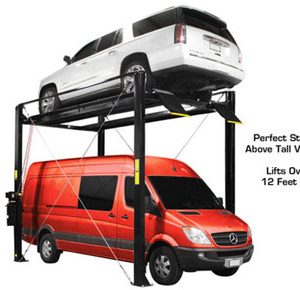

- Perfect for storing vehicles over extra-tall vehicles.

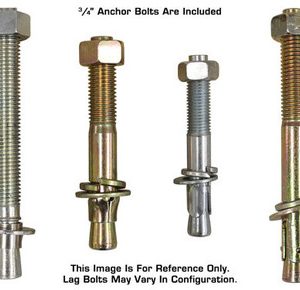

- Includes anchor bolts for secure floor mounting.
- Includes approach ramps for easy vehicle loading.
- Must be bolted to the floor for stability.
- Reinforced runways for increased strength and longevity.
- Dual Lock Safety System for enhanced security.
- Backed by a 2-year structural and 1-year hydraulic warranty.
- Designed for professional mechanics and car enthusiasts.
| Capacity | 7,000 LB |

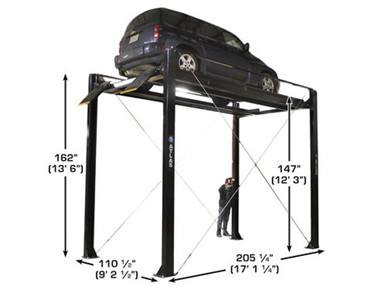

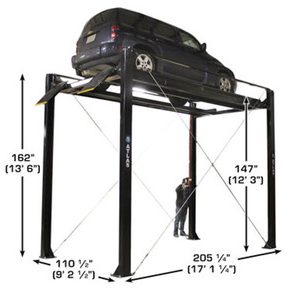

| Lifting Height to Top of Runway | 147″ (12′ 3″) |

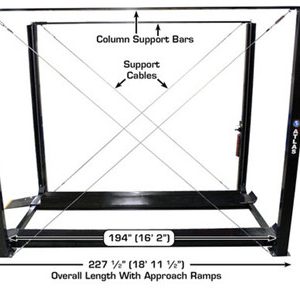

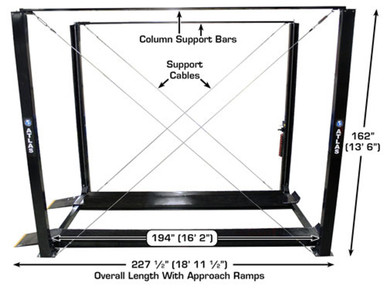

| Overall Length with Approach Ramps | 227 ½” (18′ 11 ½”) |
| Overall Length without Approach Ramps | 205 ¼” (17′ 1 ¼”) |
| Length Between Columns | 185″ (15′ 5″) |

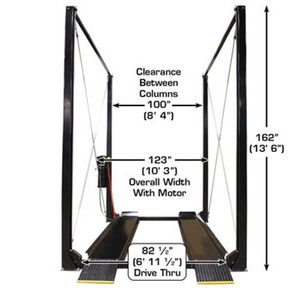

| Overall Width (with motor) | 123″ (10′ 3″) |
| Overall Width (without motor) | 110 ½” (9′ 2 ½”) |

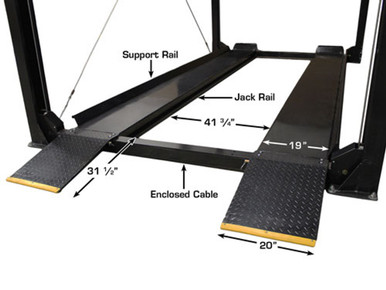

| Approach Ramp Length | 31 ½” (2′ 7 ½”) |
| Runway Overall Width | 19″ |
| Runway Length | 194″ (16′ 2″) |
| Runway Thickness | 4 ½” |
| Width Between Runways | 45″ (3′ 9″) |
| Width Between Runway Rails | 41 ¾” (3′ 5 ¾”) |
| Runway Outside to Outside | 83″ (6′ 11″) |

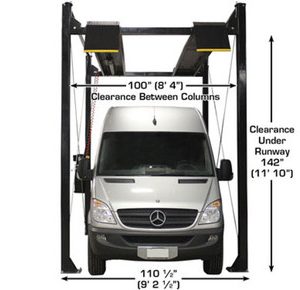

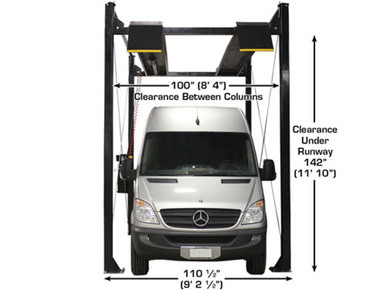

| Clearance Under Runways | 142″ (11′ 10″) |
| Column Size | 7 ½” x 4 ½” |

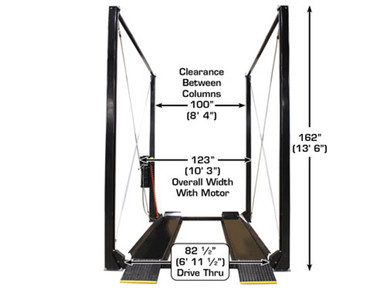

| Clearance Between Columns | 100″ (8′ 4″) |

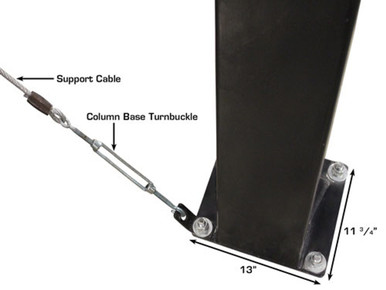

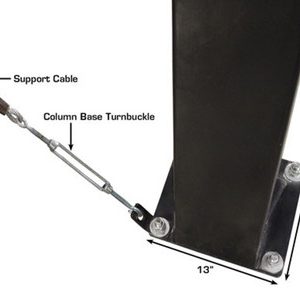

| Column Base | 11 ¾” x 13″ |

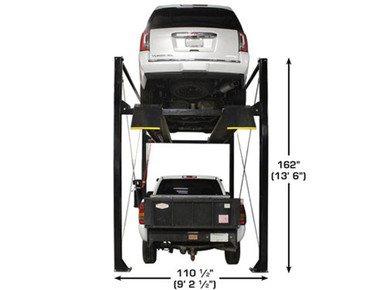

| Column Height | 162″ (13′ 6″) |
| Maximum Wheelbase | 182″ (15′ 2″) |
| Drive Thru (Outside of Tire to Outside of Tire) | 82 ½” (6′ 10 ½”) adjustable 7 ½” |
| Cable Diameter | .625″ (5/8″) |
| Steel Gauge | 5 Gauge (.2″ / 1/5″ / 5mm) |
| Motor | 220V +/- 5% (209-231volts) 1 phase. A 30 amp breaker is required. |
| Oil Requirement | 6 gallons AW32/AW46 |

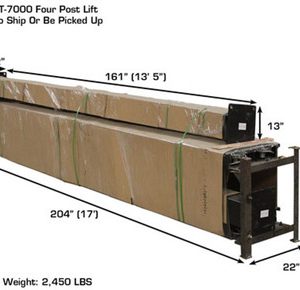

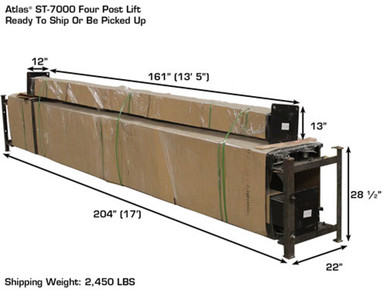

| Shipping Weight | 2,450 LBS. |
