Car lift
$35,540.00

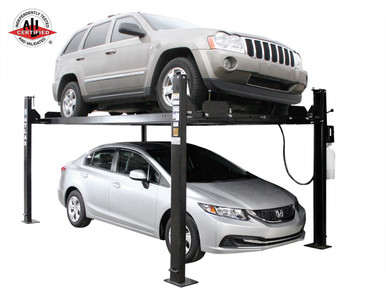

The Atlas APEX8-EXT is an ALI Certified version of the popular Atlas Garage PRO8000-EXT, designed for homeowners and restoration shops. It allows users to double their space by stacking cars and is not recommended for commercial repair shops. This lift is almost 200 pounds heavier than comparable lifts and includes a free caster kit with polyurethane wheels for portability. With ALI certification, the APEX8 offers excellent value in the four-post hobbyist product line.
- ALI Certified
- 8,000 lb. Capacity
- Atlas Powder Coat Finish

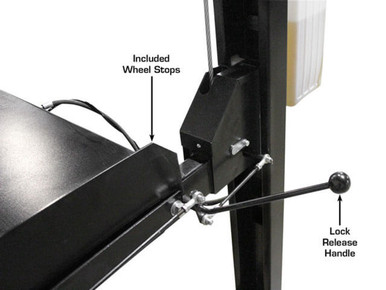

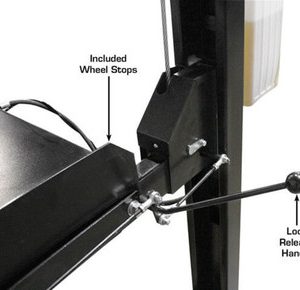

- Single Point Release

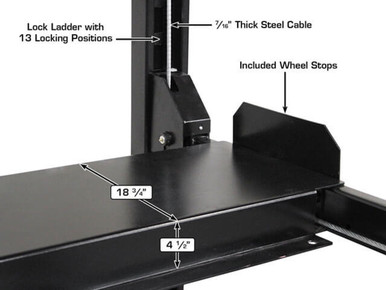

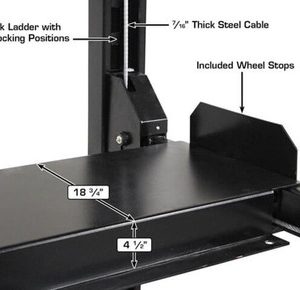

- Ladder Lock Design
- Dual Locking Safety System
- Optional Anchor Bolts (Sold Separately)

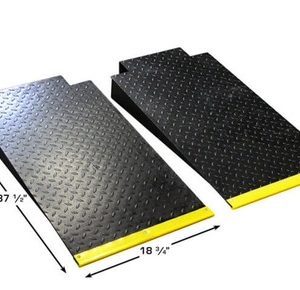

- Steel Approach Ramps (Included)

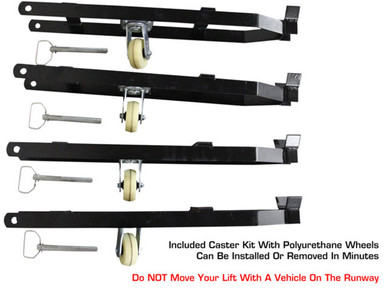

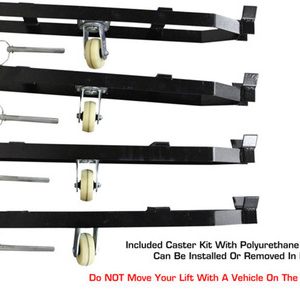

- Caster Kit with Polyurethane Wheels (Included)
- Drip Trays (Included)
- Jack Trays (Not Included)
- Four Wheel Stops (Included)

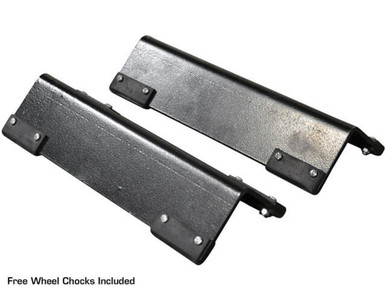

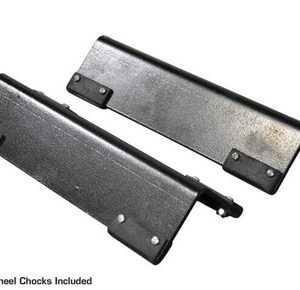

- Two Rubber Wheel Chocks (Included)
- Perfect for storing or working on vehicles
| Capacity | 8,000 LB. |
| Lifting Height | 84 1/4″ (7′ 1/4″) |
| Overall Width (without motor) | 104 1/2″ (8′ 8 1/2″) |
| Overall Width (with motor) | 115″ (9′ 7″) |
| Length Between Columns | 157 1/2″ (13′ 1 1/2″) |
| Overall Length with Approach Ramps | 206 3/4″ (17′ 2 3/4″) |
| Overall Length without Approach Ramps | 175″ |

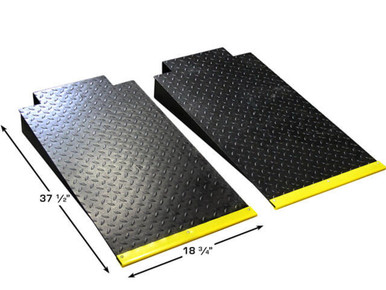

| Approach Ramps | 37″ (3′ 1″) |
| Overall Runway Width | 21 1/4″ (with rails) or 18 3/4″ (drive surface) |
| Runway Length | 165 3/4″ (13′ 9 3/4″) |
| Runway Thickness | 4 1/2″ |
| Width Between Runways | 37″ (3′ 1″) |
| Width Between Runway Rails | 31 1/2″ (2′ 7 1/2″) |
| Outside of Runway to Outside of Runway | 74 5/8″ (6′ 2 5/8″) |
| Clearance Under Runways | 79″ (6′ 7″) |

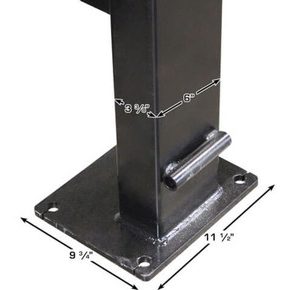

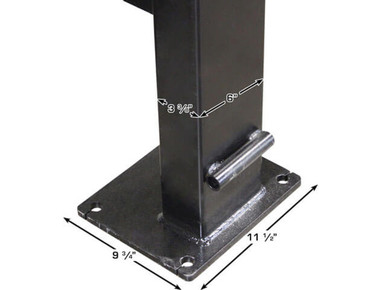

| Column Size | 9.65″ |
| Clearance Between Columns | 94 1/2″ (7′ 10 1/2″) |
| Column Base | 9.65″ |
| Column Height | 99.21″ |
| Maximum Wheelbase | 153 1/2″ (12′ 9 1/2″) |
| Drive Thru (Outside of tire to outside of tire) | 80 1/2″ (6′ 8 1/2″) |
| Cable Diameter | .350″ |
| Steel Gauge | Gauge 6 (.1875″/ 3/16″ / 4.75mm) |

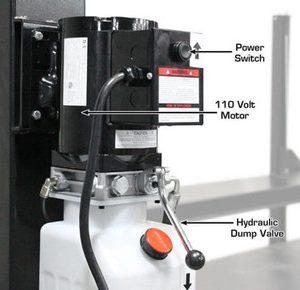

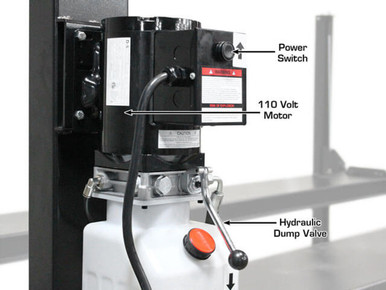

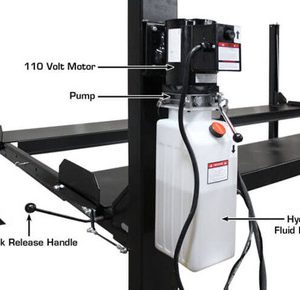

| Motor | 110 Volt – A 30 Amp Breaker is required |
| Oil Requirement | 3-5 gallons AW32/AW46 |

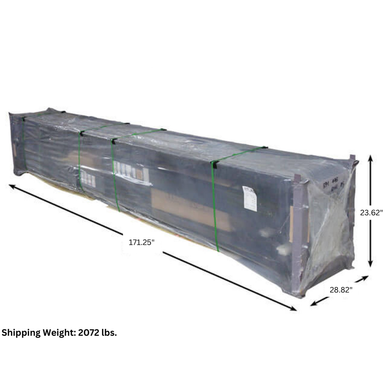

| Shipping Weight | 2,072 LB. |
| Shipping Dimensions | 171.25 x 23.62 x 28.82 |
