$4,160.00

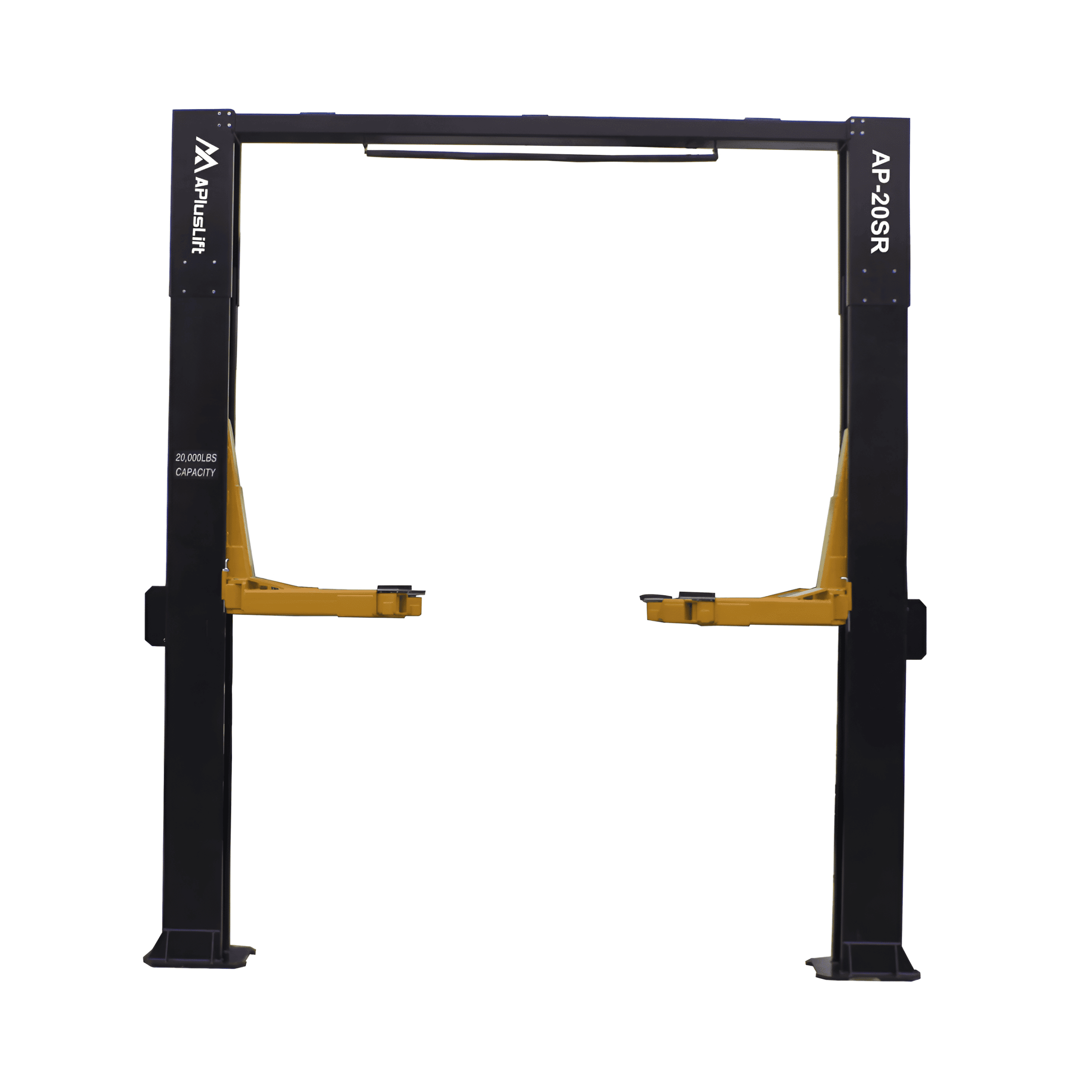

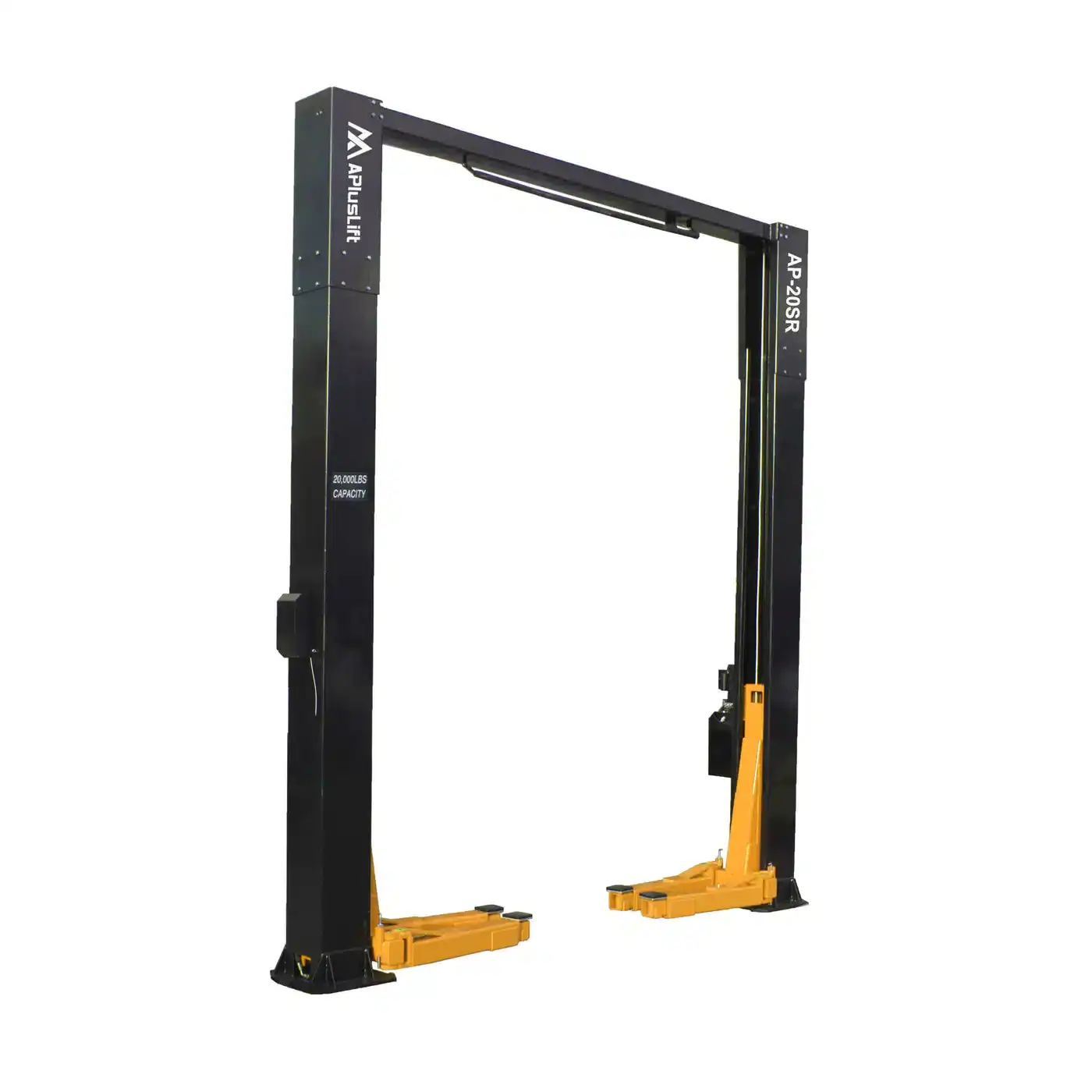

APlusLift AP-20SR 20,000 LB 2-Post Overhead Car Lift
The APlusLift AP-20SR is a professional-grade 2-post overhead car lift engineered for heavy-duty vehicles,
including trucks, commercial vehicles, SUVs, and passenger cars. With an impressive
20,000 lb lifting capacity, it provides safe, efficient, and reliable lifting for demanding automotive operations.
Built with an all-robot welded steel frame and powder-coated finish, the AP-20SR ensures long-lasting durability and
corrosion resistance. CE certified, it features dual direct-drive hydraulic cylinders, a single-point safety lock release,
symmetrical 2-stage arms, dual truck adapters, rubber door guards, and ultra-high molecular self-lubricating nylon sliders
for smooth carriage movement. It is backed by an industry-leading 3-year warranty on all parts.
Key Features
- 20,000 lb lifting capacity for heavy-duty vehicles, trucks, commercial vehicles, and SUVs
- Single-point safety lock release for quick and convenient lowering
- CE certified: 115% dynamic, 150% static load tested
- All robot-welded steel construction for precision and durability
- Durable powder-coated finish for corrosion resistance
- Direct-drive dual hydraulic cylinders for balanced and smooth lifting
- Symmetrical 2-stage arms (37″ – 59 1/16″ reach)
- Includes two sets of truck adapters (2 3/4″ & 5 1/2″)
- Double seal rings for hydraulic system longevity
- Heavy-duty 3/8″ cables and 3″ pulleys for improved synchronization
- Ultra-high molecular self-lubricating nylon sliders for smooth carriage movement
- Automatic arm lock restraints and rubber door guards for safety
- Built-in relief valve and up-limit switch for overload and stroke protection
- Industry-leading 3-year parts warranty

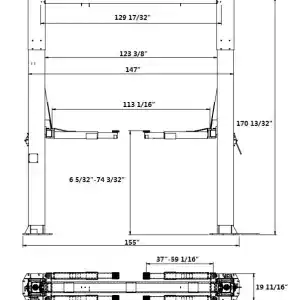

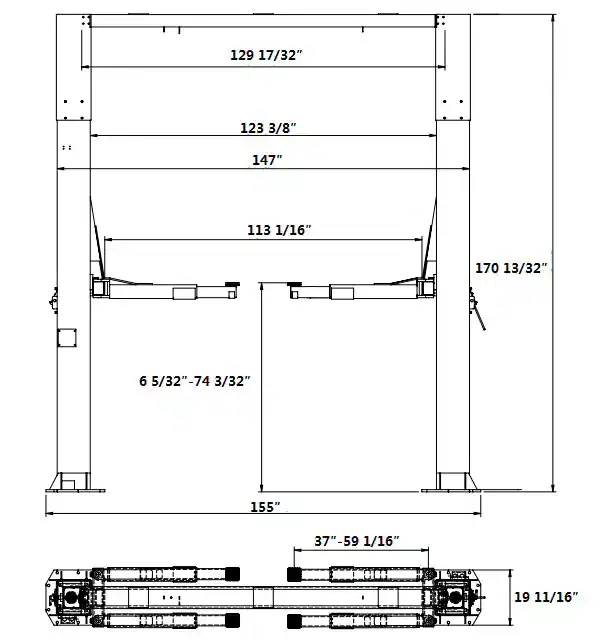

Technical Specifications
| Model | AP-20SR |
| Lifting Capacity | 20,000 lbs (9,072 kg) |
| Overall Height | 170 13/32″ |
| Overall Width | 155″ |
| Max Lift Height (with adapters) | 79 19/32″ |
| Max Lift Height (without adapters) | 74 3/32″ |
| Min Pad Height | 6 5/32″ |
| Drive-Through Width | 113 1/16″ |
| Column-to-Column Width | 123 3/8″ |
| Column Size (L x W) | 12 7/32″ x 11 13/16″ |
| Arm Reach | 37″ – 59 1/16″ |
| Motor | 220V Single Phase, 3HP |
| Hydraulic Oil | 5.3–6 gallons AW32/AW46 (not included) |
| Time to Full Rise | 75 seconds |
| Arm Assembly | Symmetrical 2-stage |
| Shipping Weight | 2,900 lbs |
| Shipping Dimensions | 145 11/16″ x 32 11/16″ x 28 15/16″ |
| Concrete Requirement | ≥13″ thick, ≥C25 strength |
| Warranty | 3 years on all parts |
Included Accessories
- 2 sets of truck adapters (4pcs 2 3/4″ & 4pcs 5 1/2″)
- 4 adjustable drop-in pads
- 10 anchor bolts
- 10 shims
Shipping Information
Free Shipping: Ships at no extra cost.
Estimated Delivery: 7–21 business days.
Tracking info provided via email.
Warranty & Returns
Includes a 3-year parts warranty. Returns accepted within 30 days of delivery per our return policy.
| Lifting Capacity | 20, 000 LB |
|---|---|
| Power / Voltage | 220V |
| Lift Type | 2-Post Lift |
