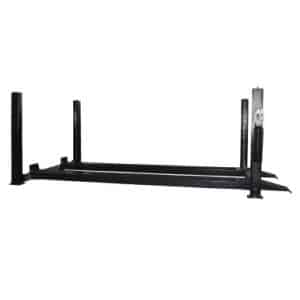

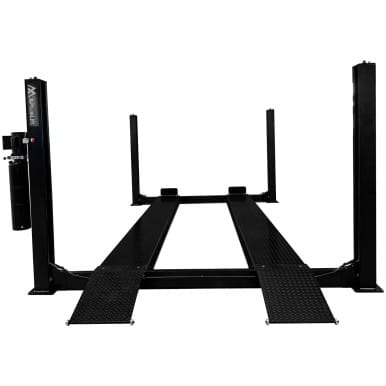

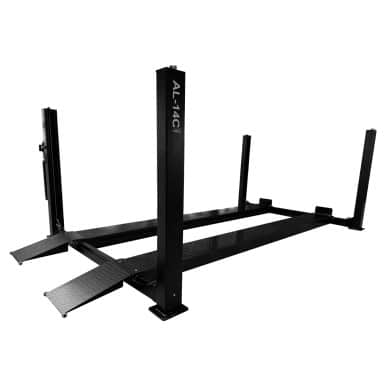

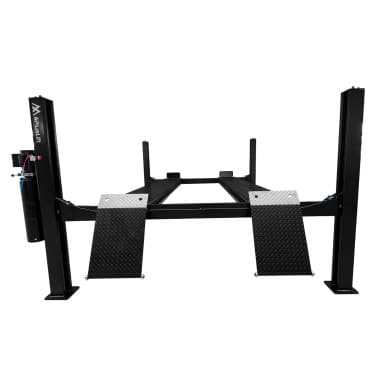

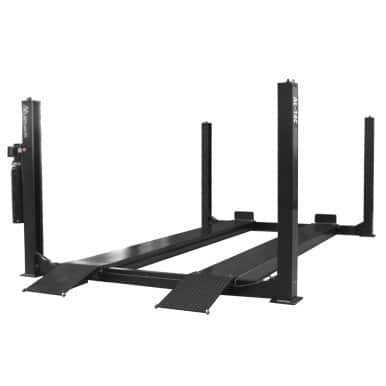

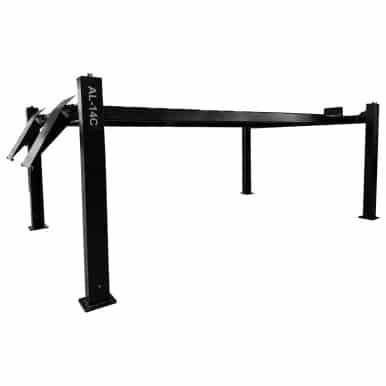

The APlusLift AL-14C (also known as HW-14AL) is a robust 4-post lift meticulously designed and built to commercial-grade standards, promising many years of reliable service in demanding automotive environments. With an impressive 14,000 LB (approximately 6,350 kg) lifting capacity, this lift is perfectly suited for a wide range of heavy-duty vehicles, including trucks, large SUVs, and commercial vans, while also providing excellent capabilities for standard cars.
Constructed with superior quality materials and exceptional workmanship, the AL-14C features a durable powder-coated finish, ensuring superior resistance against corrosion and extending its lifespan. This time-tested car lift model, with a design refined over 30 years, guarantees reliability and safety. It boasts generous dimensions for comfortable operation: an overall length of 243 1/2 inches, an overall width of 134 3/8 inches, and an overall height of 83 inches. The lift provides a substantial lifting height of 77 11/32 inches, offering ample clearance for under-vehicle access, and a drive-through width of 106 9/32 inches for easy vehicle positioning.
The AL-14C package includes two free approach ramps, facilitating smooth and easy vehicle loading. It also features heavy-duty 15/32″ diameter cables, engineered to reduce stress during the synchronization process and significantly increase cable life. Powering the lift is a reliable 220V Single Phase 3HP 10A motor (with a recommended 30A breaker), providing a lifting time of approximately 100 seconds. For optimal stability, a minimum concrete thickness of 4″ at 3000psi is required for installation. This lift is versatile, suitable for parking, storage, and a variety of service tasks, making it an invaluable asset for any busy commercial shop or large private garage.
- 14,000 LB Lifting Capacity: Commercial-grade capacity for heavy-duty vehicles, trucks, and SUVs.
- Industry-Leading 3-Year Warranty: Extended coverage for peace of mind.
- Time-Tested Design: Proven car lift model refined over 30 years for reliability.
- Powder Coated Finish: Provides superior corrosion resistance for extended durability.

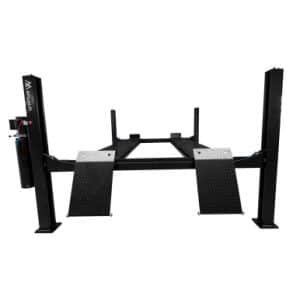

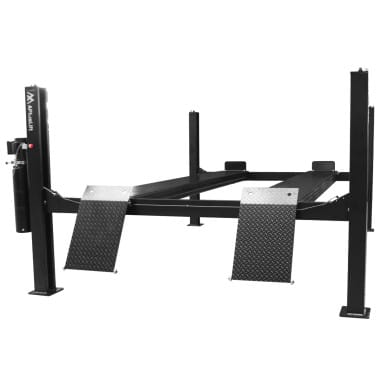

- Free Approach Ramps Included: Facilitates easy and smooth vehicle loading.

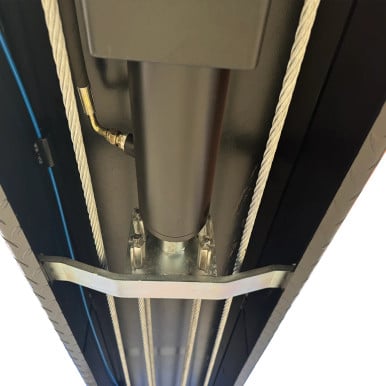

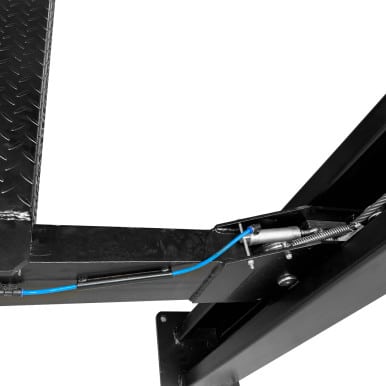

- Heavy-Duty Cables: 15/32″ diameter cables reduce stress and increase lifespan.
- Versatile Use: Ideal for parking, vehicle storage, and general service/maintenance.
- High Lifting Height: 77 11/32″ offers ample under-vehicle access.

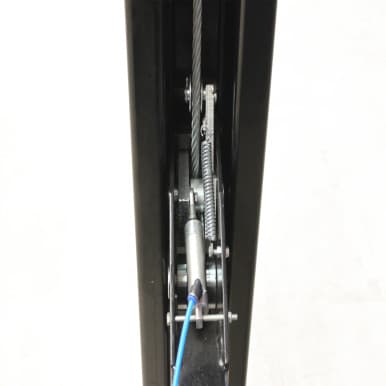

- 10 Lock Positions: Provides flexible working heights for various tasks.

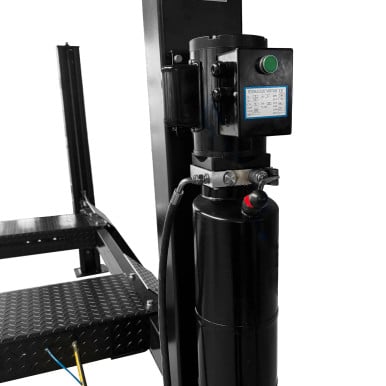

- Efficient Motor: 220V Single Phase 3HP 10A motor for reliable performance.
- Designed to Commercial Standards: Built for rigorous use in professional settings.
| Model | AL-14C (HW-14AL) |
| Warranty | 3 Years (36 Months) |
| Lifting Capacity | 14,000 LB (6,350 kg) |
| Overall Length | 243 1/2″ (618.5 cm) |
| Overall Width | 134 3/8″ (341.3 cm) |
| Drive Through Width | 106 9/32″ (270.0 cm) |
| Overall Height | 83″ (210.8 cm) |
| Lifting Height | 77 11/32″ (196.4 cm) |
| Clearance Under Runway | 70 27/32″ (180.0 cm) |
| Runway Size | 203 15/16″L x 20″W (518.0 cm L x 50.8 cm W) |
| Width Between Runways | 43″ Inside-Inside, 83″ Outside-Outside (109.2 cm Inside-Inside, 210.8 cm Outside-Outside) |
| Runway Gauge Steel | 15/64″ (approx. 5.95 mm) |

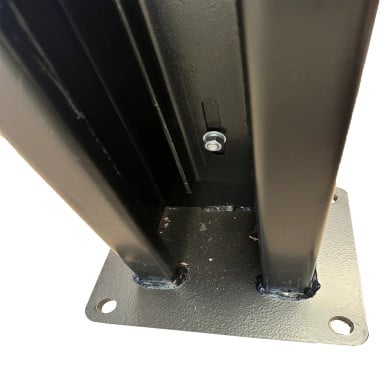

| Column Cross Section | 7 11/16″L x 6″W (19.5 cm L x 15.2 cm W) |
| Removable Approach Ramps Size | 27 31/32″L x 20 3/32″W (71.0 cm L x 51.0 cm W) |
| Lock Positions | 10 Positions: 20 15/32″, 25 19/32″, 31 1/2″, 37 13/32″, 43 5/16″, 49 7/32″, 55 1/8″, 61 1/32″, 66 15/16″, 72 27/32″ |
| Lifting Time | 100 seconds |
| Motor | 220V Single Phase 3HP 10A (recommend a 30A breaker) |
| Hydraulic Oil | 4.3-5 gallons AW32/AW46 (Not Included) |
| Concrete Thickness Requirement | 4″ 3000psi |
| Shipping Weight | 3,000 LB (1,360 kg) |
| Shipping Package Size | 214″L x 25″W x 31″H (543.6 cm L x 63.5 cm W x 78.7 cm H) |
| Usage | Parking/Storage/Service |
| Finish | Powder Coated Finish with Superior Corrosion Resistance |
| Cables | Heavy duty 15/32″ diameter cables |
| Parts Included | 2 Removable Approach Ramps |
| Lifting Capacity | 14, 000 LB |
|---|---|
| Power / Voltage | 220V |
| Lift Type | 4-Post Lift |
14 reviews for APlusLift 14,000LB 4-Post Heavy Duty Lift AL-14C
Add a review
Related products
Car lift
Car lift
Katherine Gomez –
After months of research, I pulled the trigger on this lift and couldn’t be happier. The build quality is top-notch — heavy gauge steel, clean welds, and a powder coat that looks like it’ll last. Raised my SUV for the first time and had zero concerns about stability.
John Hill –
Really happy with the quality and performance of this lift. Took almost a month to arrive though, which was frustrating. Once installed, it works flawlessly. Would give 5 stars if shipping was faster.
Timothy Reed –
The lift itself is fantastic — heavy duty, smooth operation, great safety features. But assembly was a real project. Plan for a full weekend with help. Once it’s up, though, it’s perfect.
Kenneth Watson –
Bought this primarily for double parking in my garage but ended up using it for service work too. The clearance underneath is great and the approach ramps make driving on easy. My wife can even load her car up without issues.
Gregory King –
Went from a cluttered single-car garage to a fully functional two-car setup thanks to this lift. Park one car on top, work on another below. The installation guide could be better, but the product itself is outstanding.
Dorothy Johnson –
The lift itself seems solid and works well now that it’s assembled. But the installation was a nightmare — poor instructions, some bolt holes didn’t align perfectly, and I had to fabricate a couple of spacers. If you’re handy, you can make it work.
Carolyn Cook –
Six months in and this lift has been flawless. Use it at least twice a week for various projects. The hydraulic pump is quiet, the locks engage cleanly, and the runways have plenty of length for my extended cab truck.
Michael Roberts –
The lift is excellent quality and works great. However, the installation manual is poorly translated and some diagrams are hard to follow. YouTube helped fill in the gaps. Product itself deserves 5 stars.
Ashley Sanchez –
Overall a very solid four-post lift. Build quality is great and it feels very safe. Only reason for 4 stars is the instructions could be much better — had to figure out a few steps on my own. But the lift itself is excellent.
Sharon Kelly –
I was nervous spending this much on a home garage lift, but this thing is built like a tank. The anti-slip runway surface gives me confidence and the caster kit makes it easy to reposition. Already done three oil changes and a brake job with it.
Samuel Moore –
Really like this lift overall. Sturdy, safe, and well-built. The only thing keeping it from 5 stars is the hydraulic fluid wasn’t included and the manual didn’t specify the type clearly. Minor issue for an otherwise great product.
Jack Johnson –
I run a small side business doing maintenance for friends and family. This lift handles everything from sedans to light trucks without breaking a sweat. The powder coat finish still looks new after months of use.
Gregory Nguyen –
Finally got tired of crawling under my vehicles on a creeper. This lift changed everything. Setup was straightforward following the manual, and the quality of the steel and hardware is impressive. Hydraulic system is smooth and quiet.
Joseph Martin –
Great build quality and solid performance. The approach ramps could be a little longer for low-clearance vehicles, but otherwise this is an outstanding lift for the price.
