$4,650.00
Patent Pending – Applied for in the U.S. and Abroad
See it in Action!
The Easy Triple

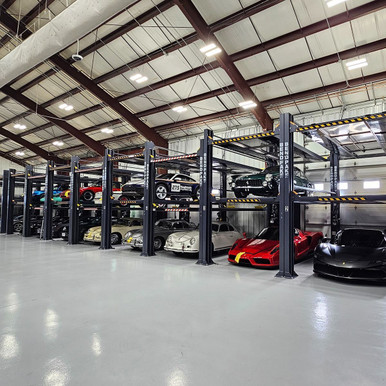

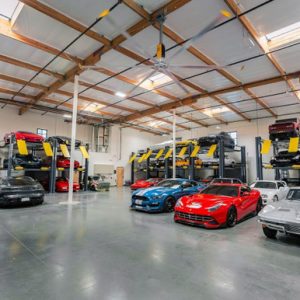

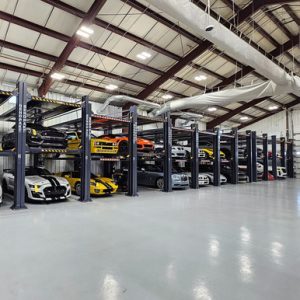

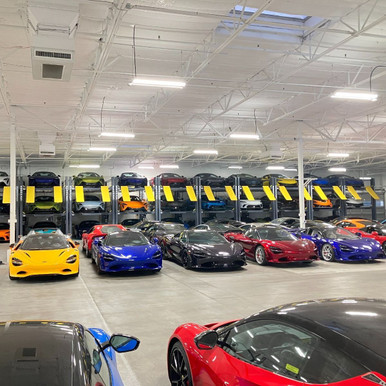

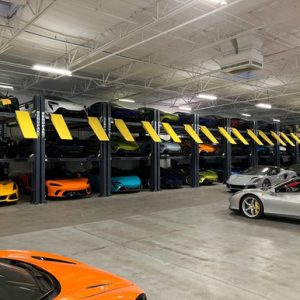

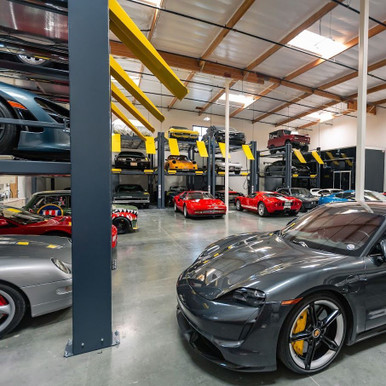

The BendPak HD-973P is a patent-pending four-post parking lift that offers a cost-effective solution to triple the capacity of typical parking areas. Designed for both indoor and outdoor use, this lift allows the storage of three vehicles in a single parking space. The upper platform can accommodate vehicles weighing up to 7,000 lbs. (3,175 kg), while the lower deck can handle up to 9,000 lbs. (4,082 kg), making it perfect for sedans, SUVs, and full-size trucks.
Unlike most triple-stacking parking lifts that are often too tall for many shops and garages, the HD-973P is uniquely engineered to fit in more spaces. Its secret lies in a specially designed structure that lacks cumbersome mechanisms projecting high over the top of the lift, effectively reducing overall height while maintaining a safe, stable, and revolutionary design.
Although shorter in stature than most tri-level systems, the lower space still provides a full 70 inches (177.8 cm) of rise.
- **Triple Parking Capacity:** Stores three vehicles in a single parking space.
- **Upper Platform Capacity:** 7,000 lbs. (3,175 kg) for the upper platform.
- **Lower Platform Capacity:** 9,000 lbs. (4,082 kg) for the lower deck.
- **Proprietary Design:** Shortened height columns allow it to fit in low ceiling spaces where other systems cannot, while still providing 70 inches (177.8 cm) of rise in the lower space.
- **Independent Platforms:** Unlike typical multi-level stackers, the HD-973P features independently operated lifting platforms, allowing for varied vehicle heights and spacing in either upper or lower parking spaces. This means you can lower the bottom platform without disturbing the overhead vehicle.
- **Unmatched Protection:** Patent-pending design with multi-position safety locks spaced just four inches (10.2 cm) apart, allowing for almost unlimited parking height arrangements.
- **Redundant Safety Catches:** Anti-fall, spring-loaded safety catches immediately halt downward movement of either platform in the unlikely event of cable failure.
- **Hydraulic Power:** A powerful hydraulic cylinder is enclosed beneath each platform set, matched with high-strength lifting cables for simplicity and dependability.
- **Configurable for Drive-Thru Operation:** Allows for stacking as many as three deep for maximum efficiency and better use of space.
- **Cost-Effective Construction:** Smart design requires less steel, offsetting much of the extra cost typically associated with high-rise parking lifts, while upholding rigid safety standards.
- **Weight-Displacing Base:** Specially designed base frames distribute the load, making it suitable for installation on virtually any residential or commercial concrete floor, and even on asphalt with concrete footers.
- **Configurable:** Can be configured as a stand-alone lift or combined into rows of multiple units.
Detailed specifications for the BendPak HD-973P can be downloaded via the manufacturer’s provided document:
Key specifications highlighted in the description include:
- **Upper Platform Capacity:** 7,000 lbs. (3,175 kg)
- **Lower Platform Capacity:** 9,000 lbs. (4,082 kg)
- **Lower Space Rise:** 70 inches (177.8 cm)
- **Safety Lock Spacing:** 4 inches (10.2 cm)
