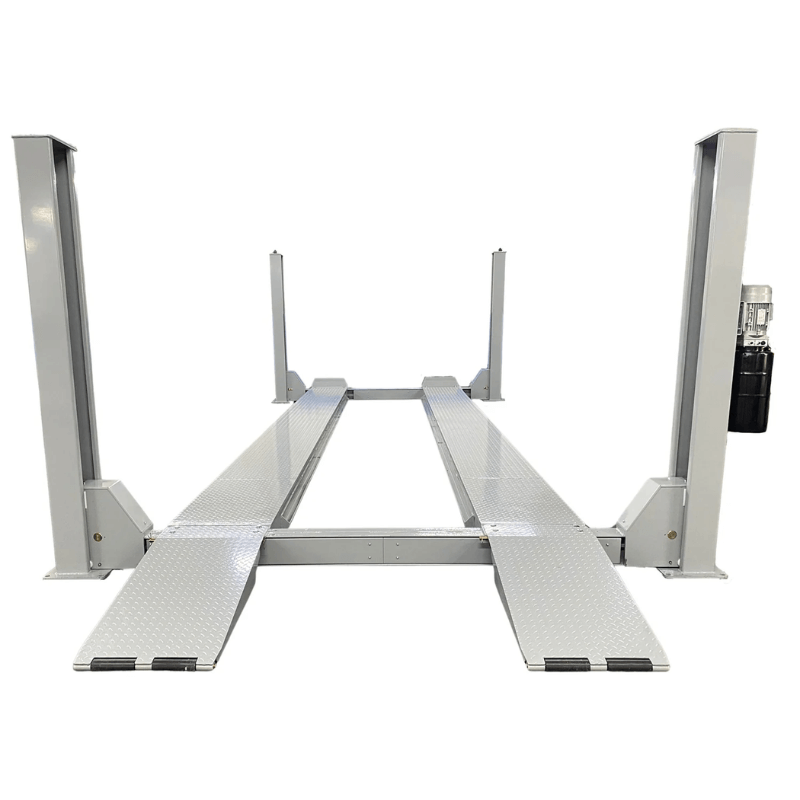

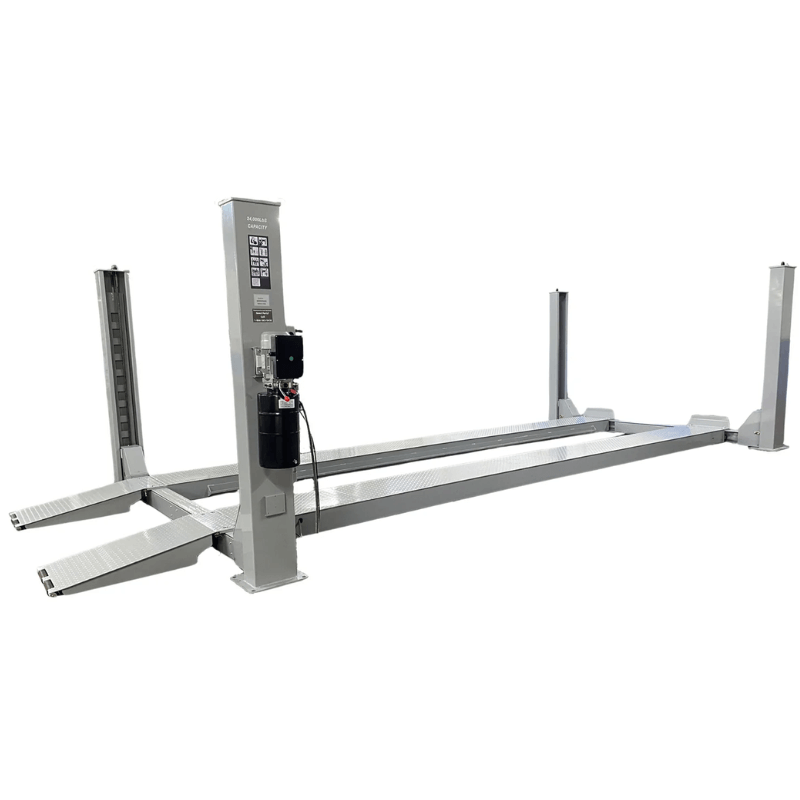

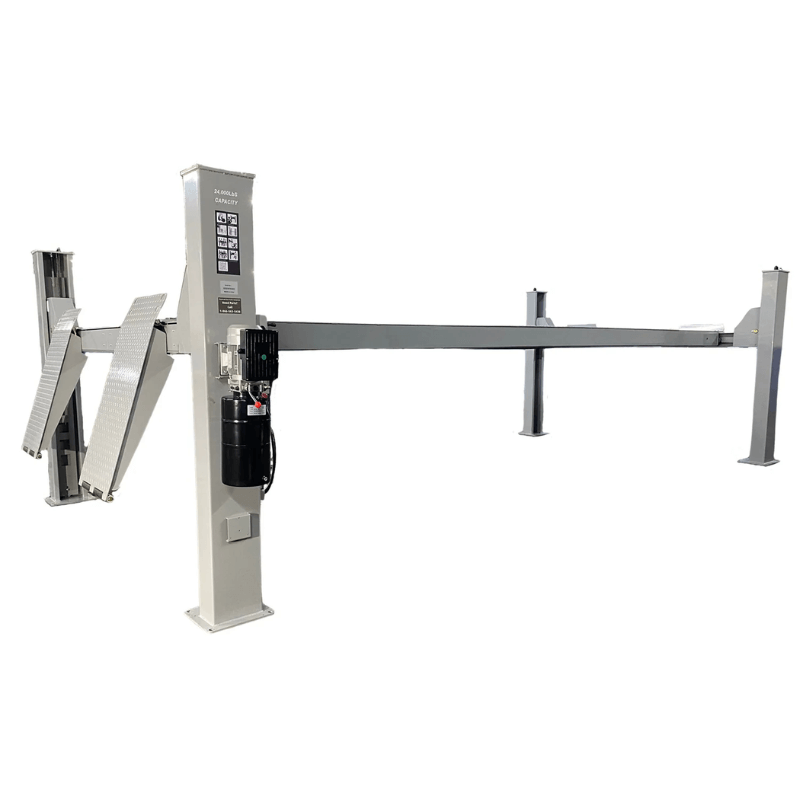

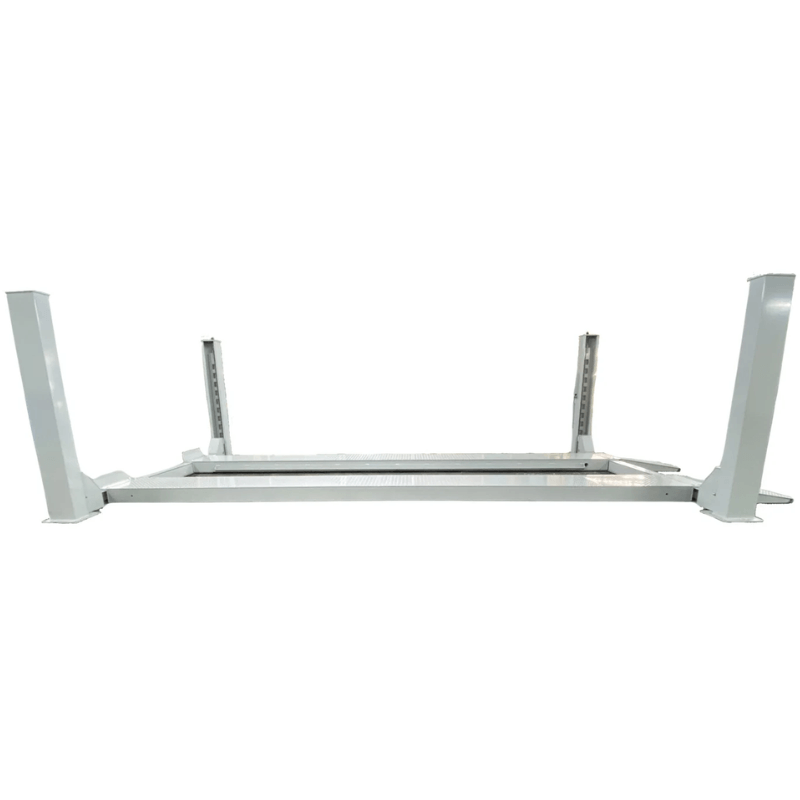

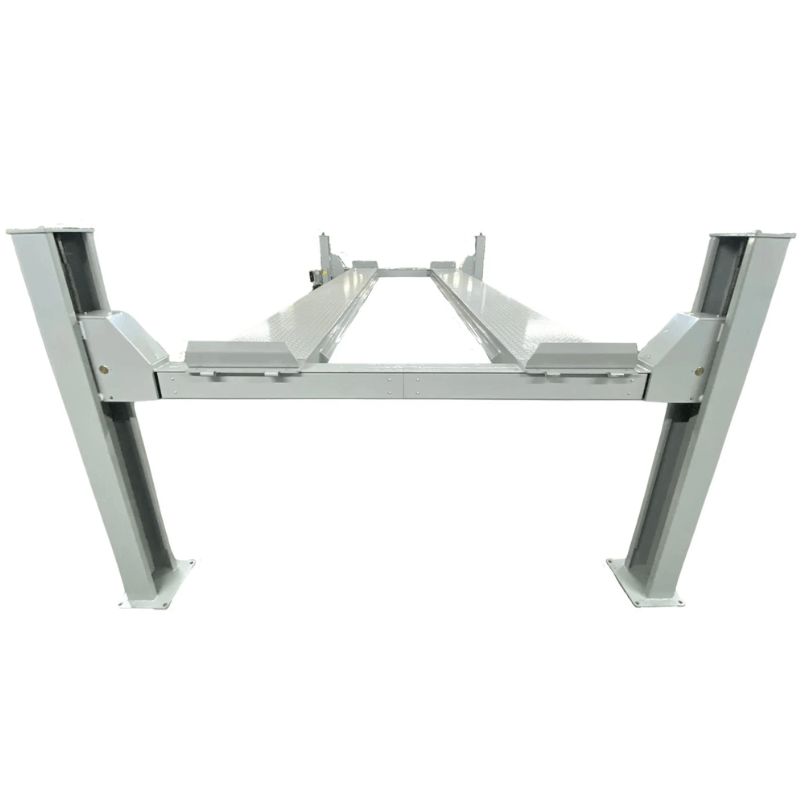

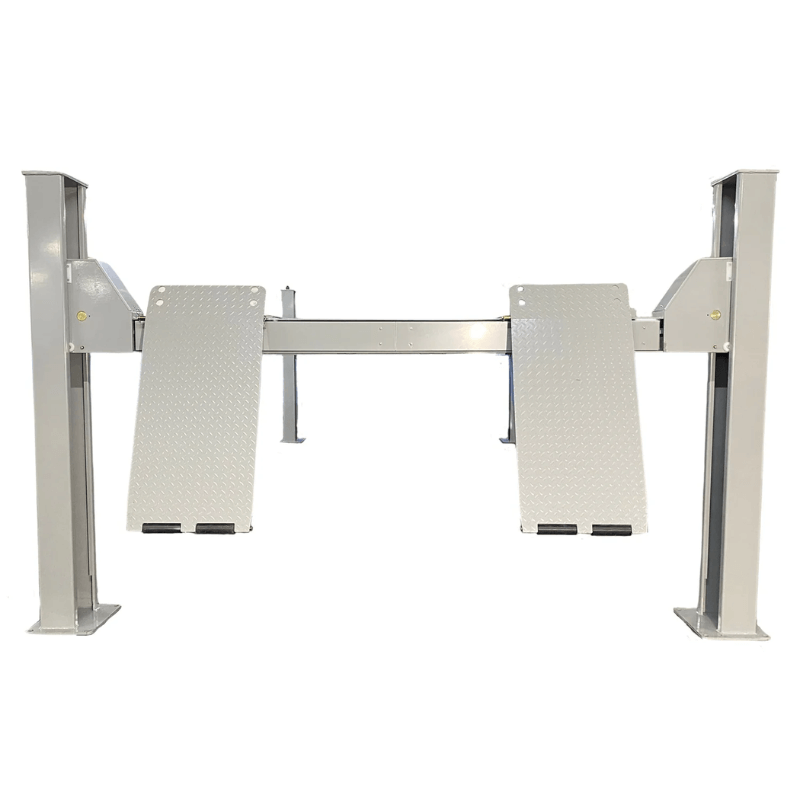

Triumph NTR-16 16,000 lb 4 Post Car Lift

NTR-16 16,000 lb 4 Post Car Lift by Triumph

Say hello to the Triumph NTR-16, your new heavy-duty shop hero! With a 16,000 lb lifting capacity, this beast doesn’t flinch, whether you’re lifting a pickup or a fully-loaded commercial van. Its maximum height of 74.4 inches gives you plenty of clearance, and the 12 lock positions let you secure the lift exactly where you need it. The adjustable runway spacing ensures compatibility with a wide range of vehicles, while the rugged construction promises long-lasting, dependable performance.

But it’s not just about brute strength—this lift brings some serious brains too. The 220V single-phase system keeps things running smoothly, while the 7.5-inch minimum runway height makes it easy to load low-clearance vehicles. With 161 inches of overall width and a runway length of over 224 inches, the NTR-16 offers plenty of space to get things done comfortably. Whether you’re a pro in a bustling garage or an enthusiast working on your latest project, this lift ensures you’re equipped to handle anything that rolls in.

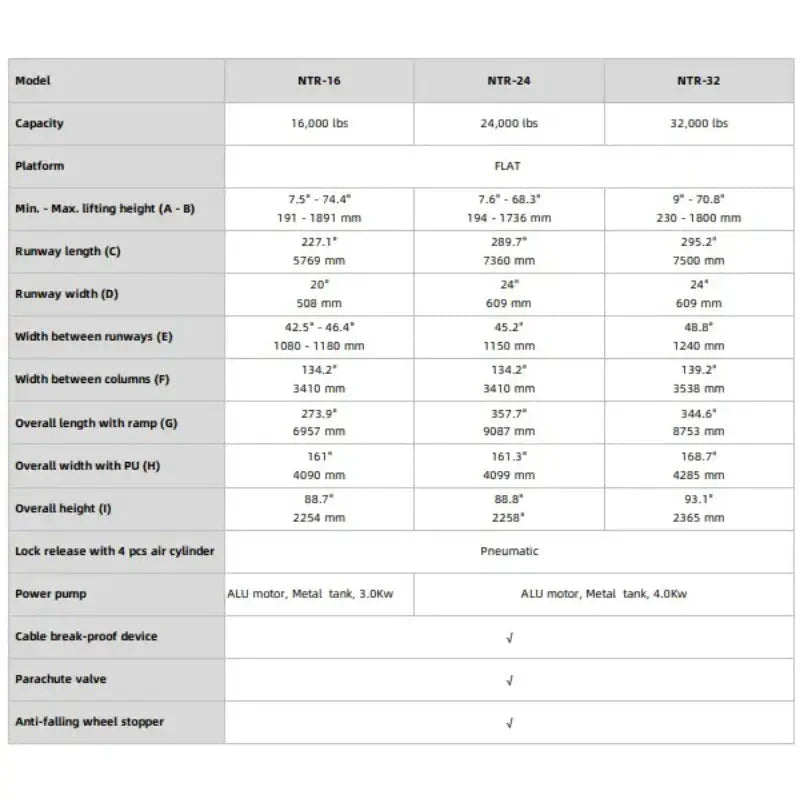

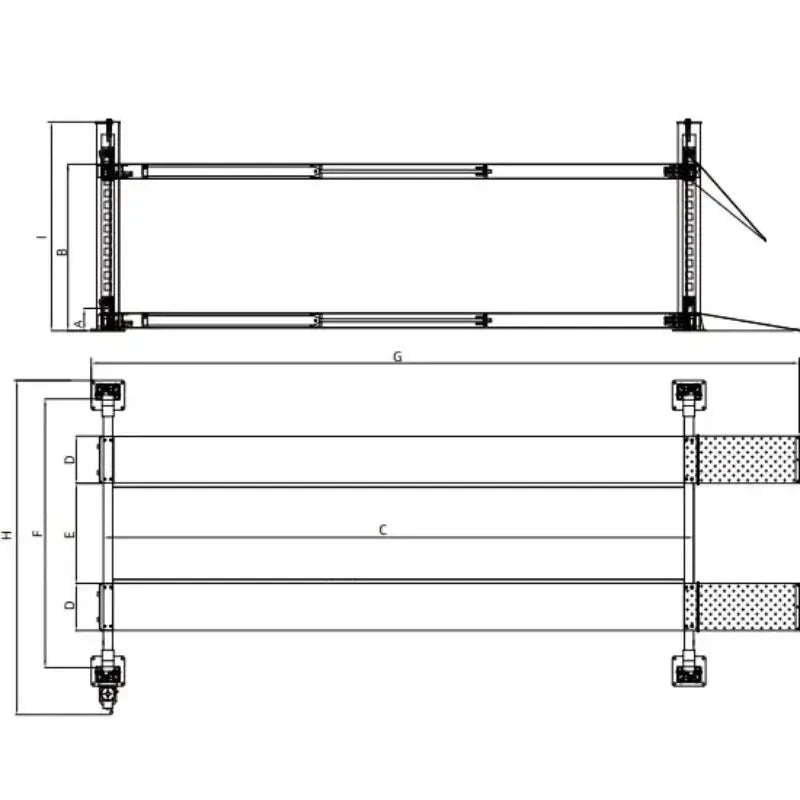

4 Post Car Lift NTR-16 Specifications

• Lifting Capacity: 16,000 lbs

• Overall Height: 88.7"

• Overall Length (Without Ramps): 235"

• Overall Length (With Ramps): 273.9"

• Overall Width: 161" (base plate to base plate)

• Minimum Height: 7.5"

• Maximum Lifting Height: 74.4"

• Runway Length: 224.5"

• Runway Width: 20"

• Width Between Runways: 42.5" – 46.4"

• Width Between Columns: 134.2"

• Drive-Thru Clearance: 114"

• Lock Positions: 12

• Electrical Requirement: 220V, Single Phase

• Shipping Weight: 3,112 lbs

• Hydraulic Fluid Requirement: AW32

NTR-16 16,000lb 4 Post Car Lift Special Features:

• Heavy-duty steel construction for long-term durability

• 12 locking positions for secure and adjustable lifting heights

• Wide runways to accommodate various vehicle sizes

• Adjustable runway spacing for flexible vehicle positioning

• Efficient 220V single-phase power system

• Compact yet spacious design for large vehicles without sacrificing access

• Precision-engineered for smooth lifting and stability

• Easy-to-use controls for operator convenience

• Ideal for commercial vehicles, light trucks, and general service use

• Buy as a Combo NTR-16 + (2) RJ-9000 Combo

NTR-16 Manual

No documents

Triumph NTR-16  With (2) RJ-9000 Optional Item Sold Separately

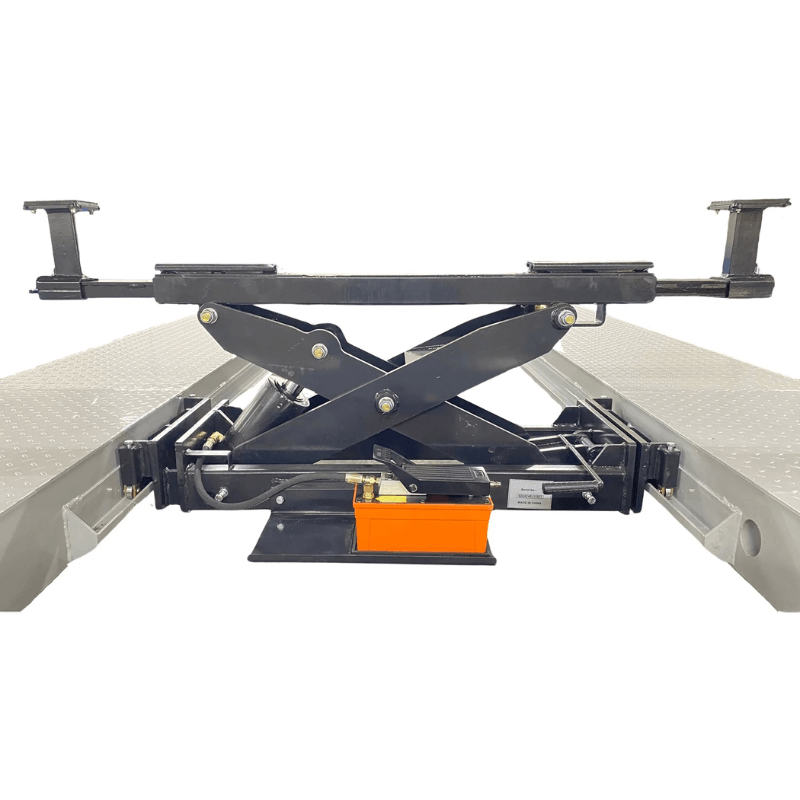

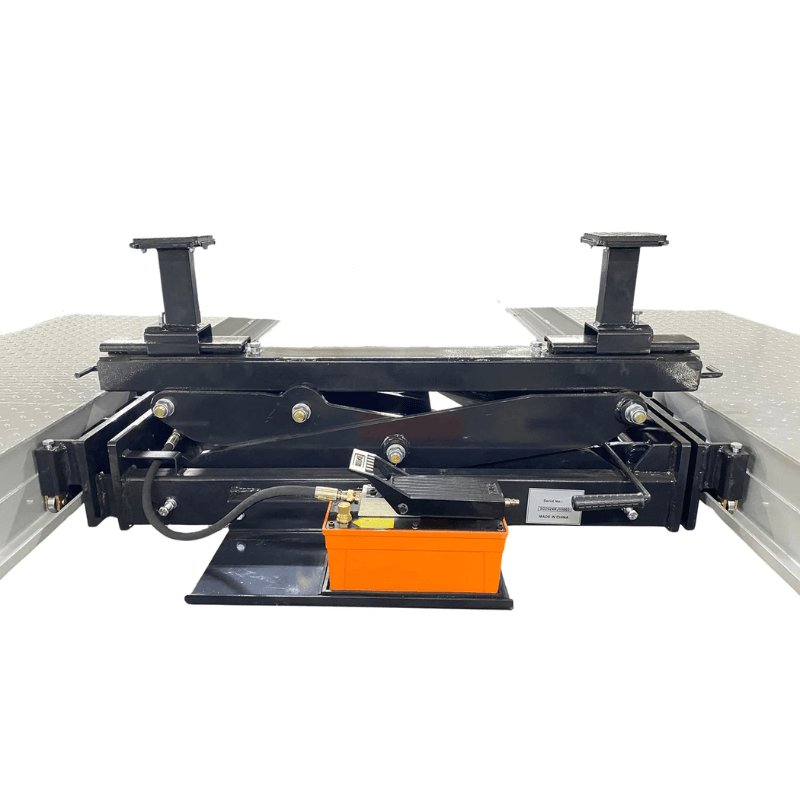

• RJ-9000 Rolling Bridge Jack
