Triumph NTO-10A, 10,000 lb 2 Post Lift

NTO-10A 10,000 lb 2 Post Lift by Triumph

Struggling to find a reliable, high-capacity lift for your garage that won't break the bank? Meet the Triumph NTO-10A 10,000 lb Two Post Auto Lift—a robust and versatile solution that brings professional-grade features to both commercial and home setups. With a 10,000 lb capacity, this lift is perfect for a range of vehicles, from compact cars to heavy-duty trucks. The three-stage arms provide extended reach for various vehicles, while the single-point lock release ensures smooth, efficient operation, allowing you to move through jobs faster and safer.

Built for efficiency and safety, the NTO-10A includes an overhead bar that keeps cables and hoses out of the way, reducing tripping hazards and keeping your workspace clear. The lift is powered by a 3 HP motor with a quick 40-second lift time, giving you the power and speed to maximize productivity. Designed to fit into most garages with its compact base plate size and overhead style. This lift offers a perfect balance of speed, safety, and functionality to transform how you work on vehicles.

NTO 10A Specifications:

• Capacity: 10,000 lbs

• Overall Height: 145"

• Overall Width: 133"

• Lifting Height: 72"

• Distance Between Posts: 107"

• Drive-Thru Width: 96"

• Lowered Height: 4.5"

• Base Plate Size: 18" x 17"

• Truck Adapters: Yes

• Lock Release: Single Point

• Electric Safety Cutoff: Yes

• Lift Time: 40 seconds

• Voltage: 220 Volt (30amp Breaker)

• Horsepower: 3 HP

• Concrete Requirements: Minimum of 4"-4000psi

• Style: Overhead


• Hydraulic Fluid Requirement: AW32


• Pallet Dimension: 149" x 19" x 38" – 1,511 lbs.

Triumph NTO10000A, 10,000 lb 2 Post Lift Special Features:

• Single Point Lock Release – streamlines the lifting process

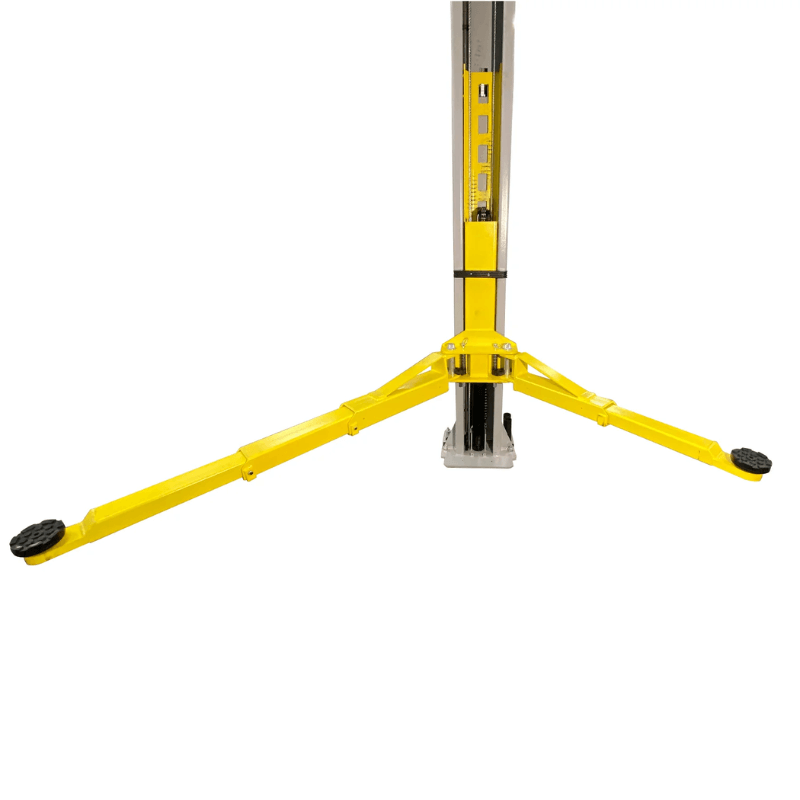

• Three-Stage Arms – enhances reach for various vehicles

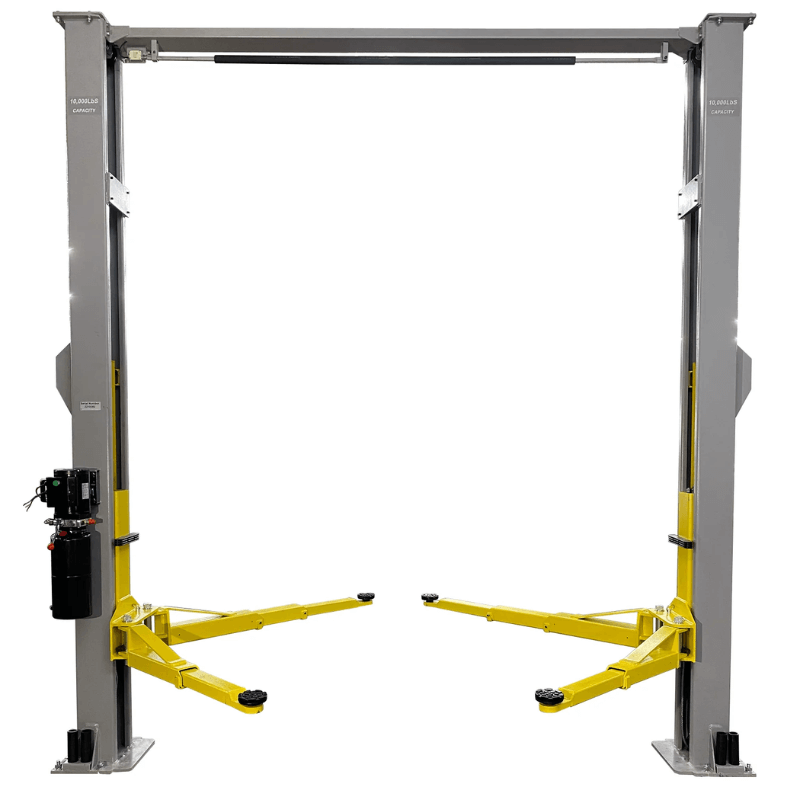

• Overhead Bar – keeps the floor clear by routing cables and hoses above

• Power Unit/Motor Included – comes with all necessary mounting hardware for easy setup

• Electric Safety Cutoff – ensures safety during operation

• Certification – CE Certified and built in ISO9001 quality-certified factories

• Warranty – 1 year parts only

NTO-10A Manual

   Triumph NTO-10A Installation Instruction
