Triumph NT 16, 16,000lb 2 Post Lift

NT-16 16,000 lb 2 Post Lift by Triumph

Unlock the full potential of your workshop with the NT-16 Two Post Auto Lift. This powerhouse effortlessly hoists up to 16,000 lbs, transforming your space into a high-performance maintenance hub. With its 120" height and expansive 142" width, the NT-16 accommodates even the most imposing vehicles, while its swift 40-second lift time keeps your workflow humming.

Engineered for precision and safety, the NT-16 boasts ISO 9001 and CE certifications, along with an electrical override automatic safety shut-off. Its generous 114" between-post spacing and 100" drive-through width ensure easy vehicle positioning, while the included truck adapters expand your service capabilities. From its robust 20"x20" base plates to its free mounting hardware, every detail of the NT-16 is designed to take your automotive projects to new heights - 72 inches, to be exact.

NT 16 Triumph Specifications:

• Lifting Capacity: 16,000 lbs

• Overall Height: 120"

• Overall Width: 142"

• Arms: Symmetric

• Maximum Lifting Height: 72"

• Distance Between Posts: 114"

• Drive-Thru Width: 100"

• Lowered Height: 7"

• Base Plate Size: 20" × 20"

• Lift Time: 40 seconds

• Power Supply: 220V AC, 3 HP

• Concrete Requirements: Minimum of 6"-3000psi

• Shipping Weight: 2,000 lbs

• Pallet Dimensions: 120" × 33" × 22"

• Hydraulic Fluid Requirement: AW32

NT-16, 16,000 lb 2 Post Lift Special Features:

• 16,000 lb lifting capacity for heavy-duty applications

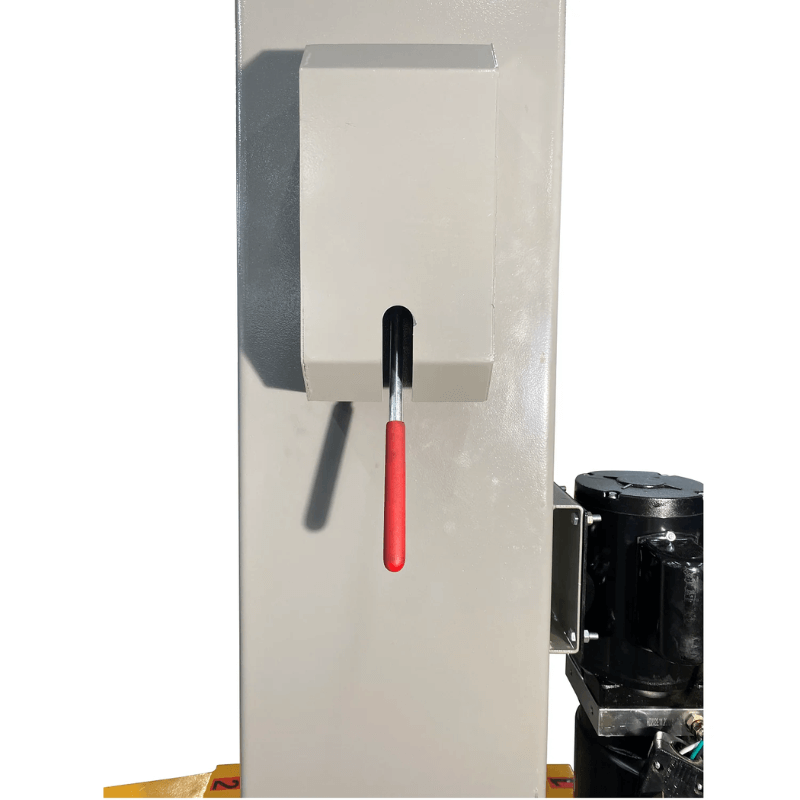

• Electrical override with automatic safety shut-off

• Fast 40-second lift time for efficient operation

• Designed for installation on 3,000 PSI concrete floors

• Mounting hardware included

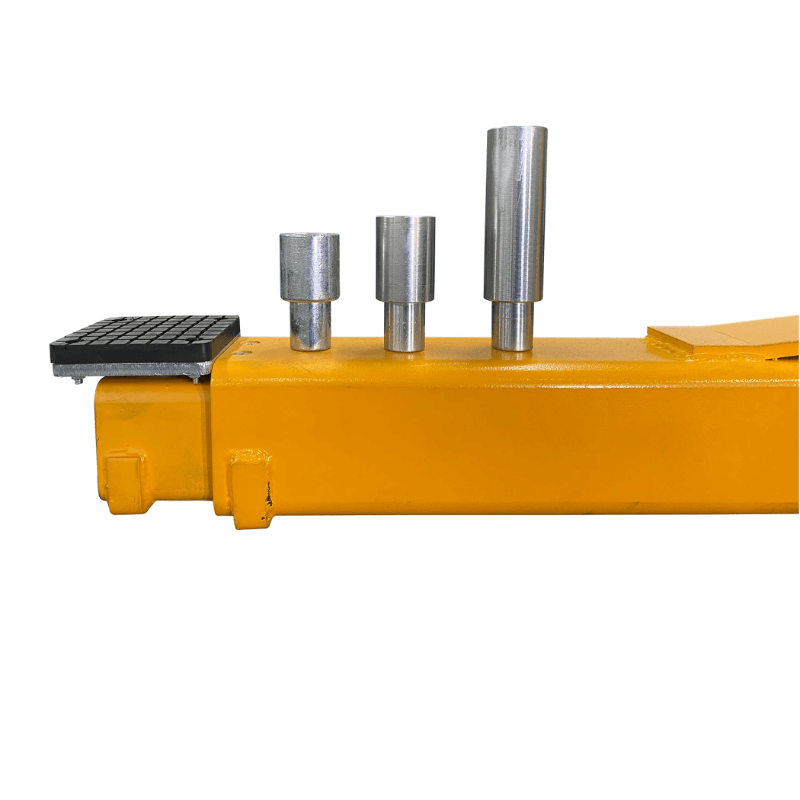

• Truck adapters included

• Warranty: 1-year parts only

NT-16 Manual

   Triumph NT-16 Product Manual
