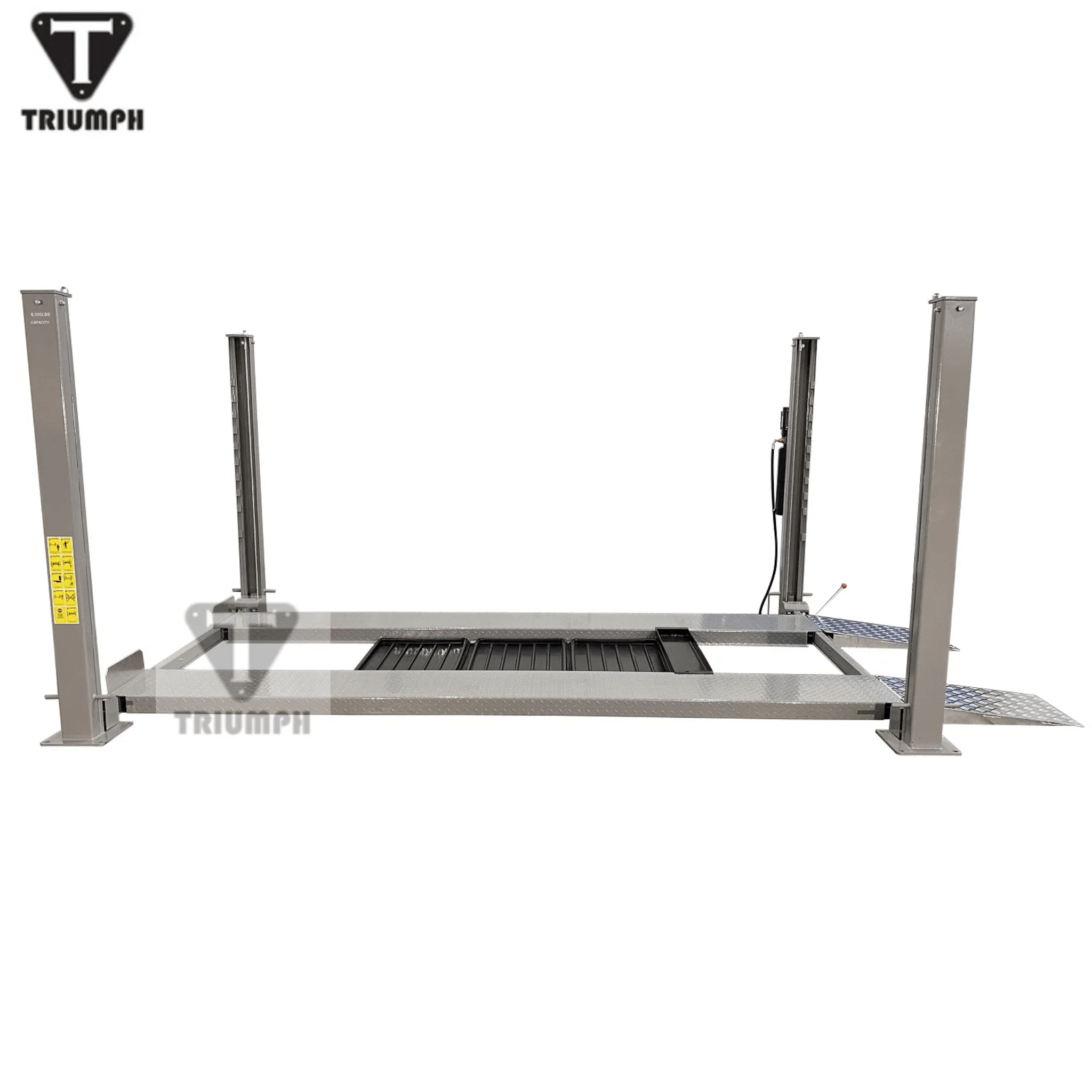

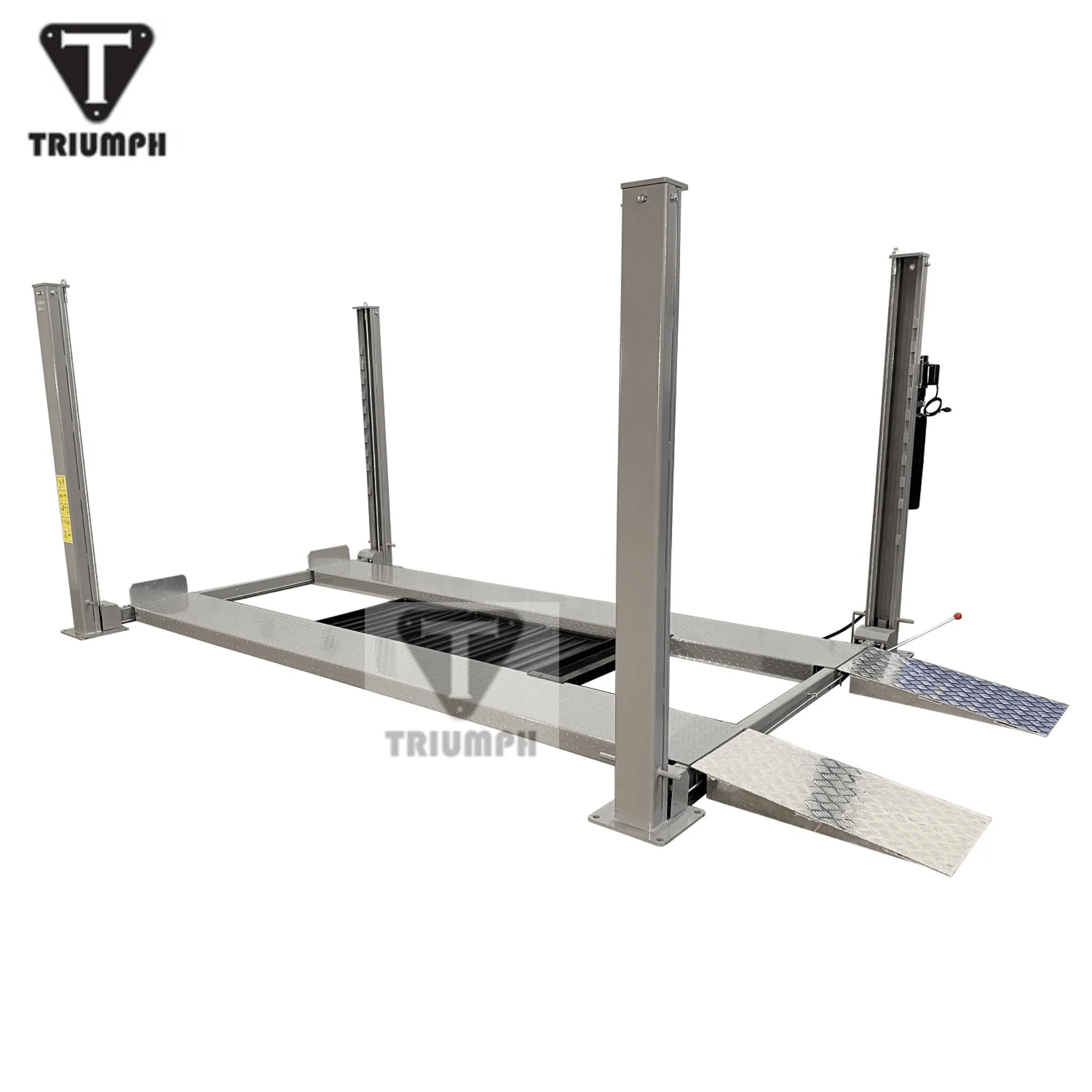

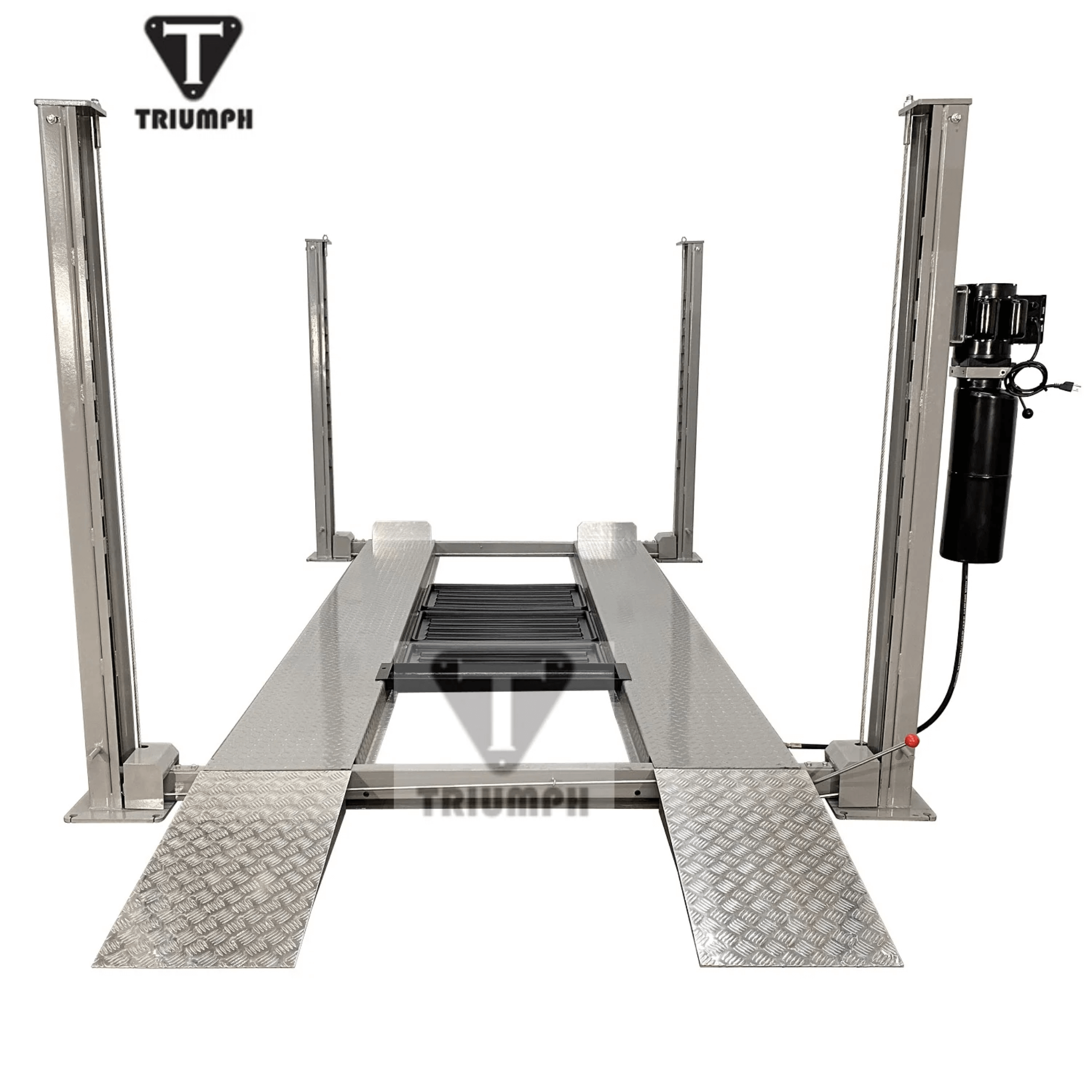

Triumph NSS-8XLT 8,000lb 4 Post Lift, Extra Long & Tall

NSS-8XLT 8,000 lb Vehicle Storage Lift by Triumph

Is your single-story garage cramping your style like a Lincoln Navigator on Italy's tight streets? The NSS-8XLT 8,000 lb capacity Parking Lift by Triumph is your ticket to the HOV lane of home garages.

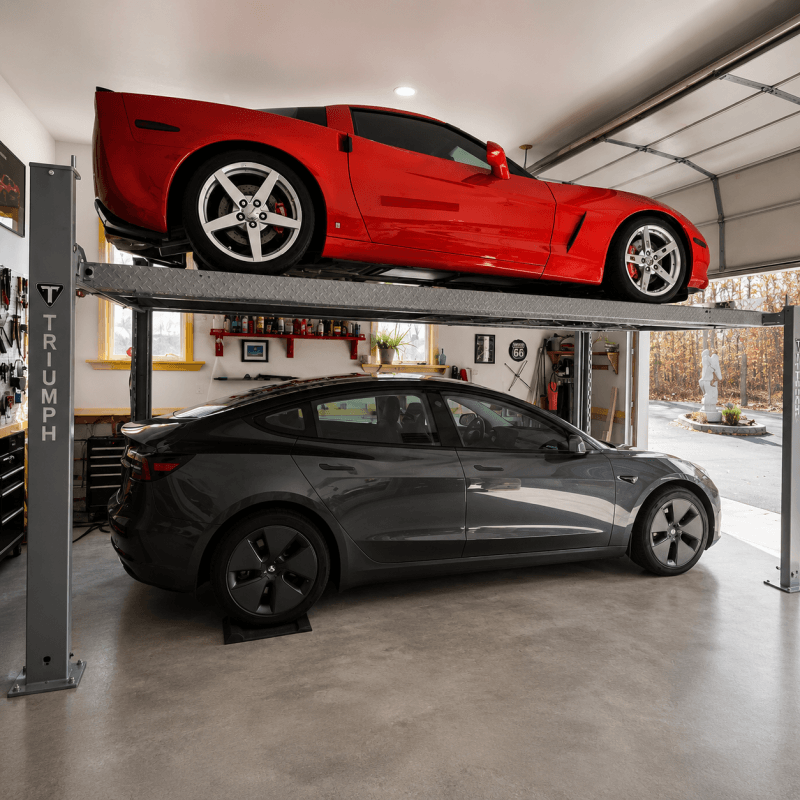

This heavy-duty four-post auto lift doesn't just double your parking space - it transforms your humble garage into a two-story automotive haven, perfect for the car enthusiast who refuses to choose between their daily driver and weekend cruiser.

With a jack tray for easy maintenance, three drip trays to protect the bottom vehicle and keep things cleaner than a showroom floor, and a caster kit for mobility that would make a NASCAR crew chief jealous, the NSS-8XLT is more versatile than LeBron James.

Standing 94 inches tall with an 82-inch lift height, this is a solid lift that can accommodate everything from a Mazda MX-5 to a Chevy Silverado Dually. Add in 10 locking positions, a single-point lock release for safety, and a flat rate shipping fee to the lower 48, and you've got a garage upgrade that's more thrilling than finding the keys to a Mustang II in your birthday card.

Triumph NSS-8XLT 8000lb Vehicle Lift Specifications

• Capacity: 8,000 lbs
• Overall Height: 94"
• Overall Length (without ramps): 180
• Overall Length (including ramps): 190" (extra length design)
• Overall Width (base plate to base plate): 112"
• Overall Width with Motor: 120"
• Lift Height: 82.5"
• Height Under Runway: 79"
• Runway Thickness: 3.5"
• Drive-Thru Width: 99"
• Runway Width: 18"
• Between Runways: 37"
• Lowered Height: 5"
• Locking Positions: 10
• Base Plate Size: 12" x 12"
• Lock Release: Single Point
• Lift Time: 40 seconds
• Motor: 3 HP
• Voltage: 110 Volts (30 amp breaker)
• Pallet Dimensions: 184" x 21" x 29" - 1,695 lbs (shipping weight)

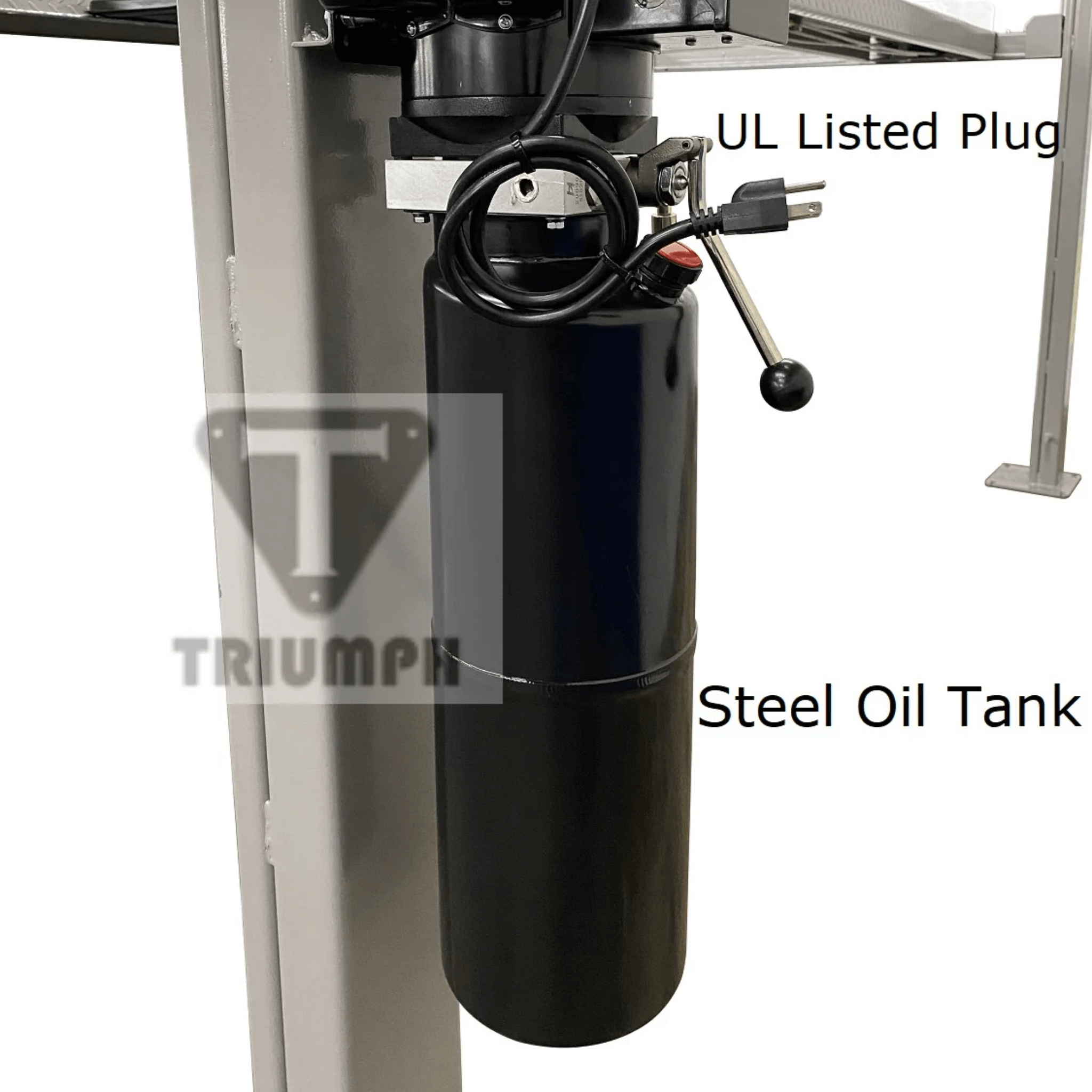

• Hydraulic Fluid Requirement: AW32

Triumph XLT 4 Post Lift Special Features

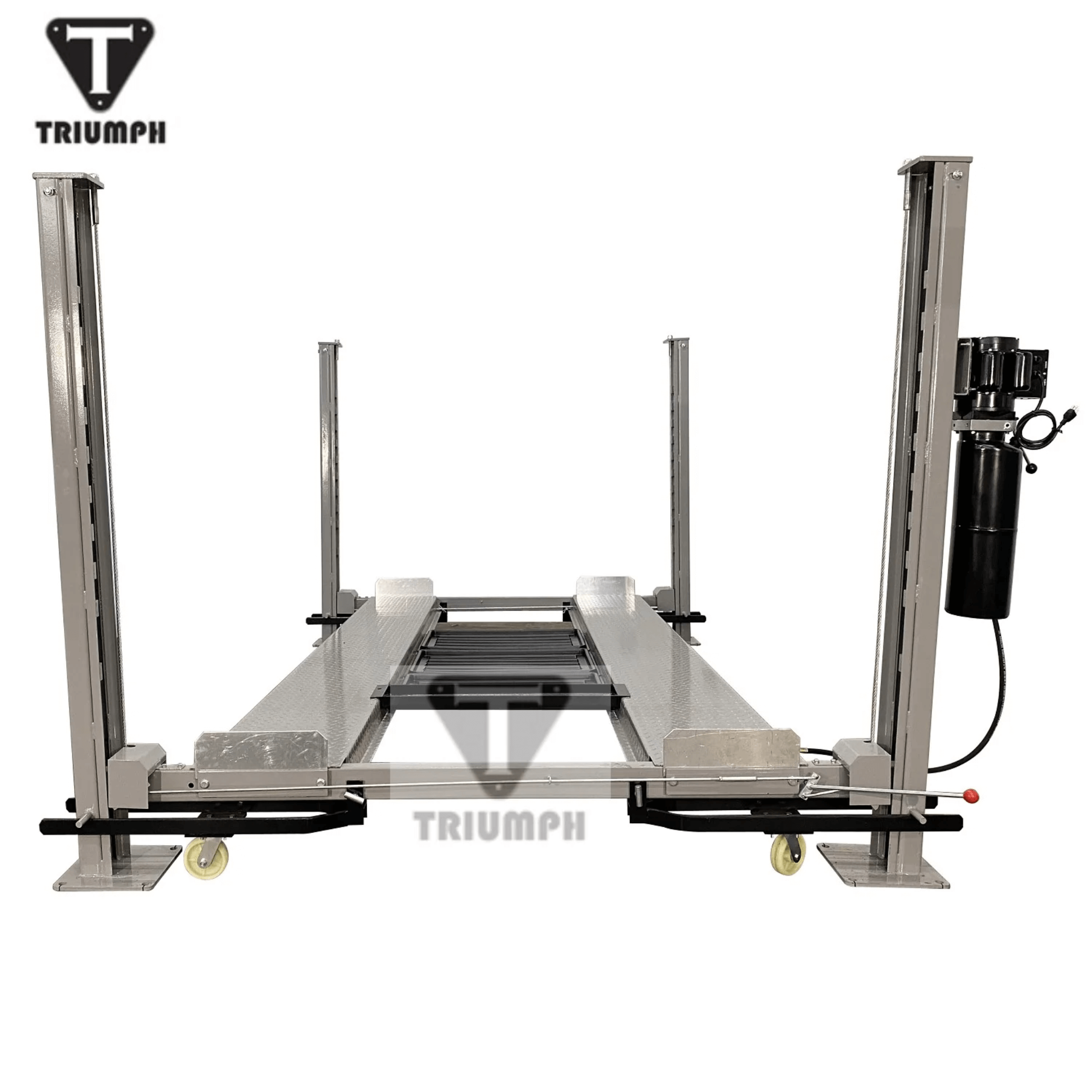

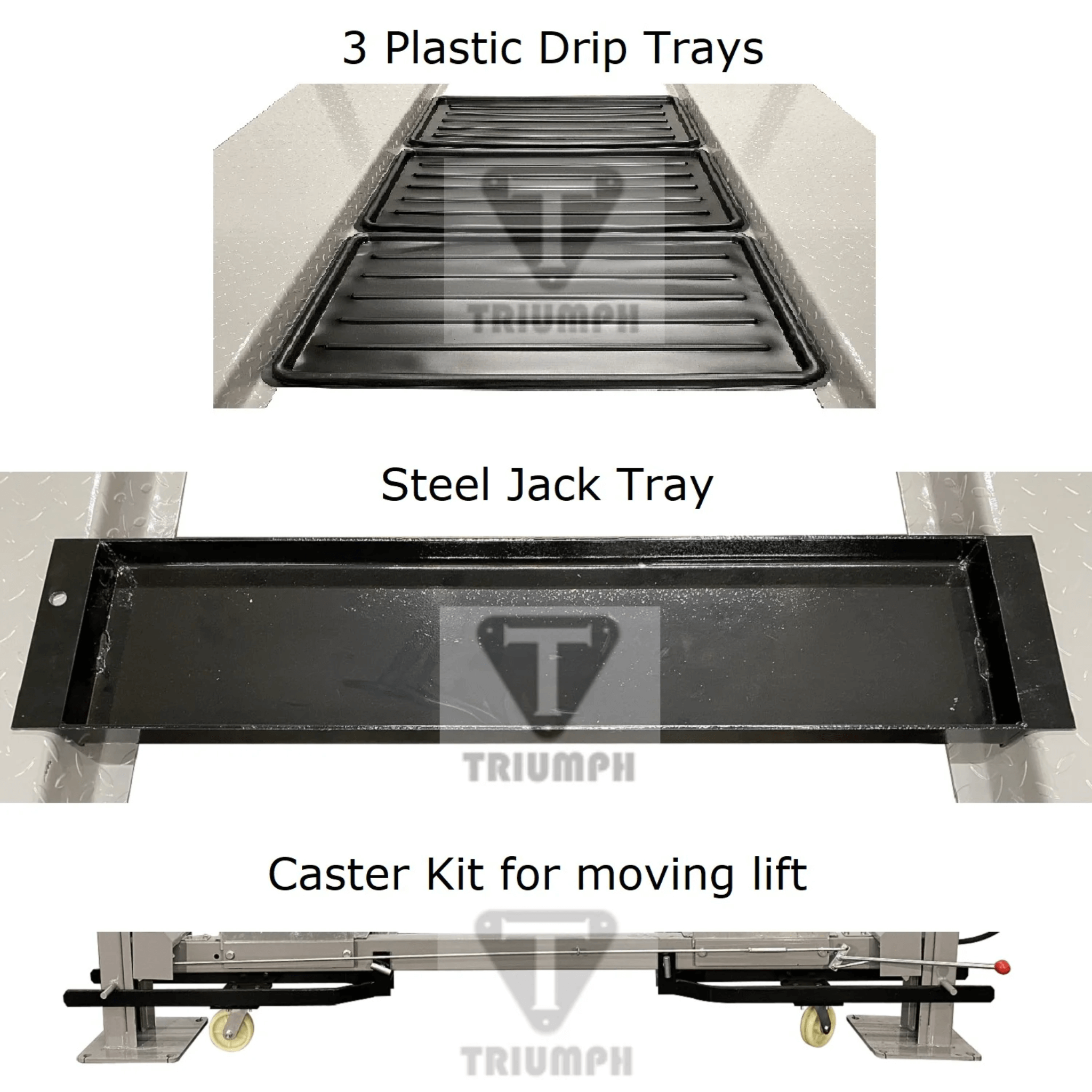

• Includes Caster Kit – for easy mobility around the garage
• Jack Tray – allows the use of a bottle jack or floor jack for lifting one end of the vehicle
• Three Drip Trays – prevent fluids from the top vehicle from dripping onto the lower vehicle
• Automatic Locking – engages at 10 different positions for secure operation
• Portable and Easy to Set Up – convenient for both storage and service needs
• Standard Color: Grey

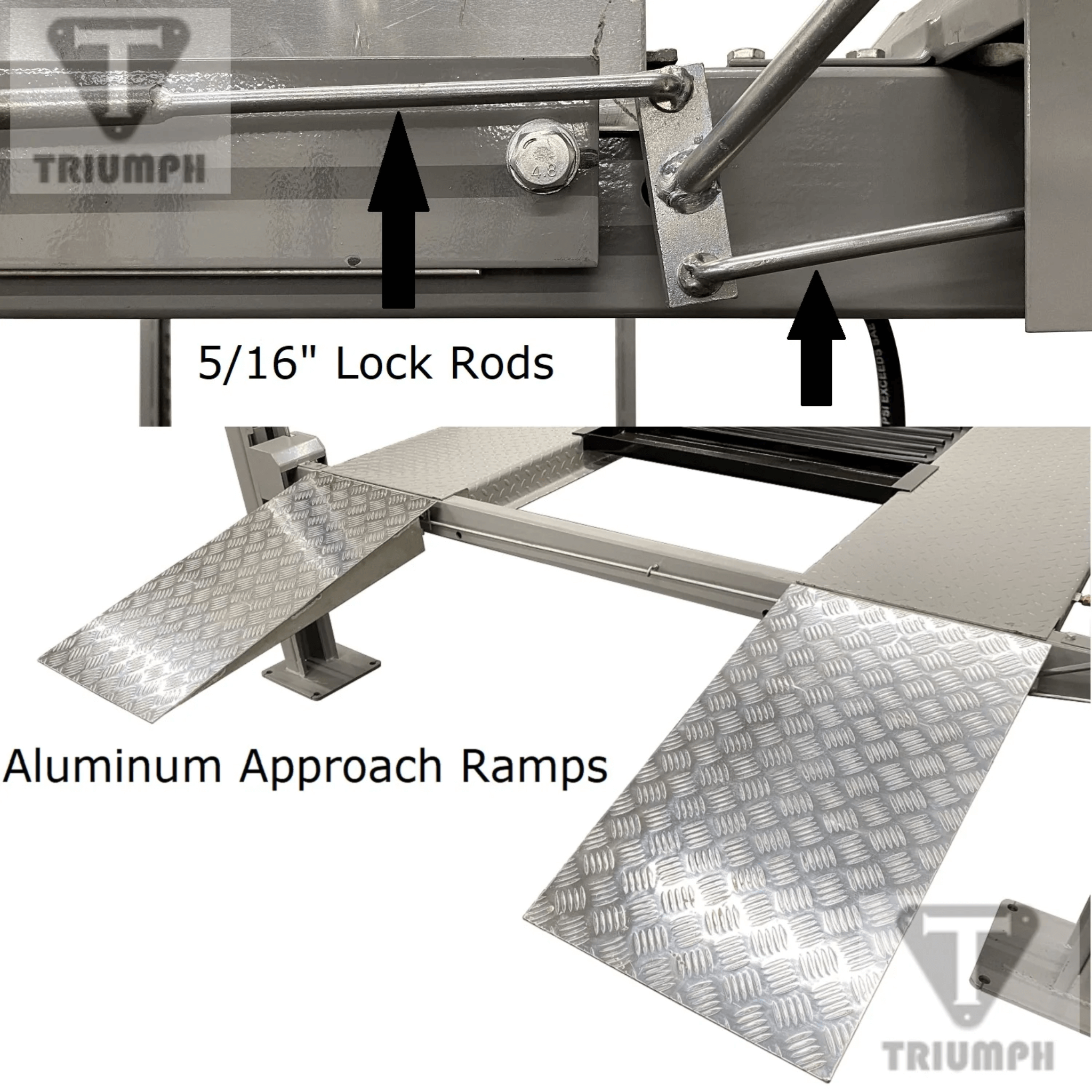

• Aluminum Ramps - make for easy removal
• Warranty – 1 year parts only
• Certification – CE Certified and built in ISO9001 quality-certified factories

• Optional Item (Sold Separately)
• Triumph NSS-8 Storage Lift Bridge Jack SJ35

Order a good-quality lift and experience a worry-free operation.

NSS-8XLT Manual:

Triumph NSS-8XLT Lift Manual
