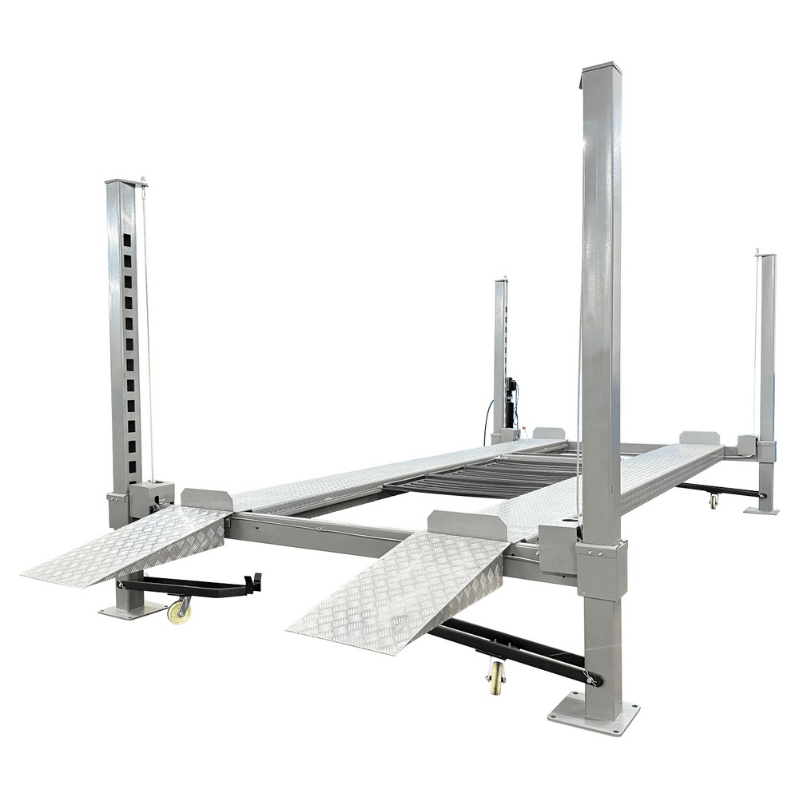

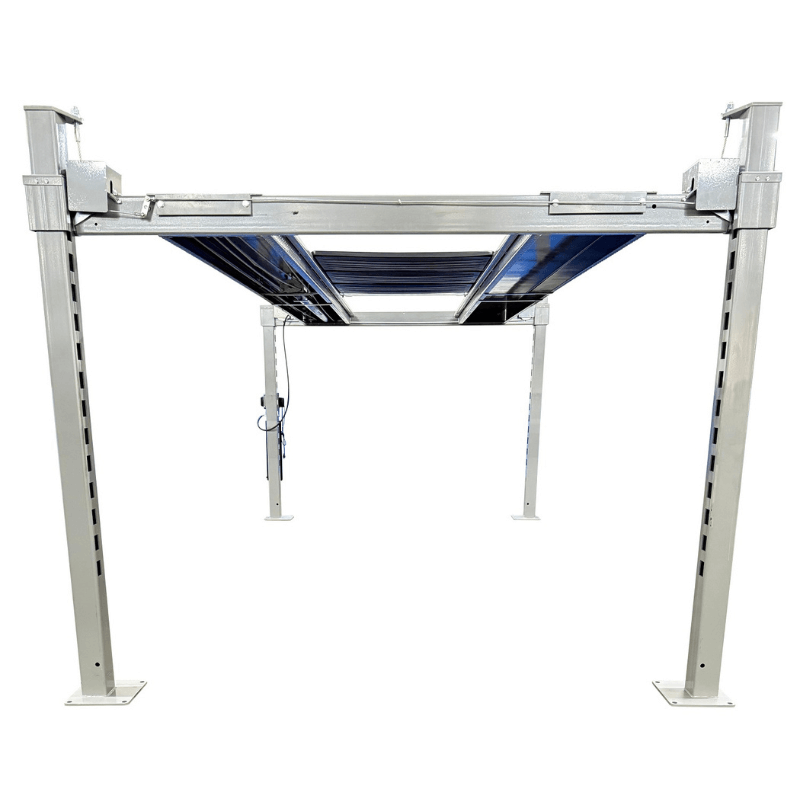

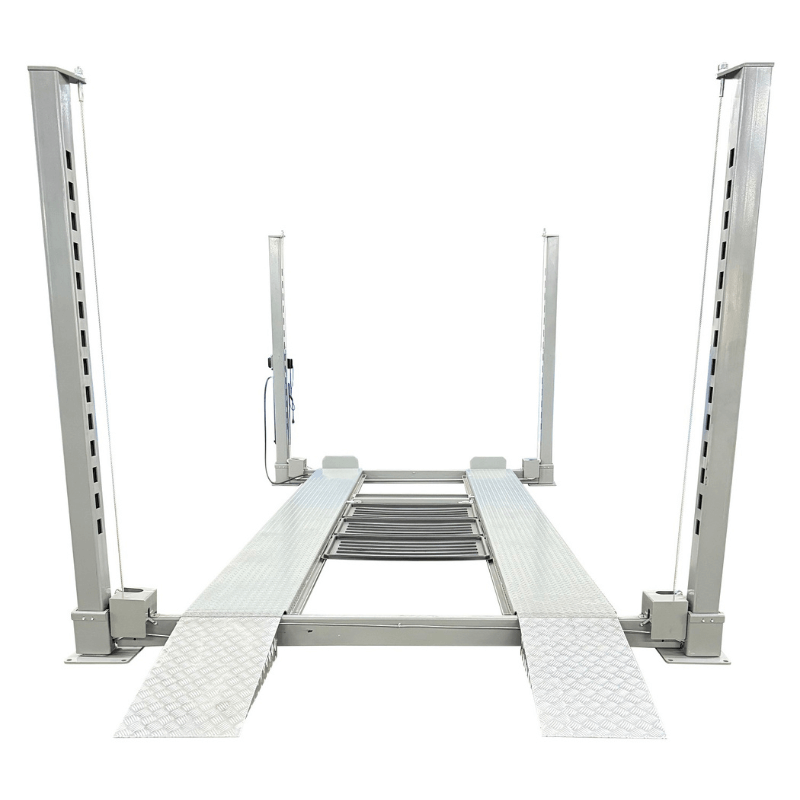

Triumph NOS10000 10,000lb 4 Post Lift

NOS10000 10,000lb 4 Post Lift by Triumph

The Triumph NOS10000 Four Post Car Lift delivers heavy-duty performance with a rugged outside slider design, providing superior stability and strength. Built for both professional shops and serious enthusiasts, this lift combines service functionality with convenient long-term storage capabilities, making it one of the most versatile solutions in its class.

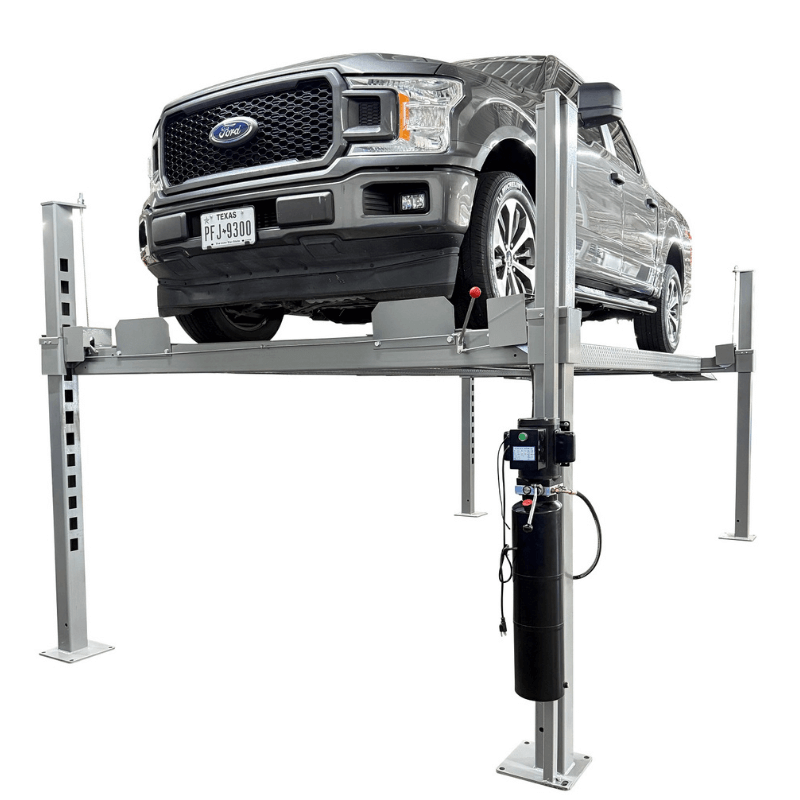

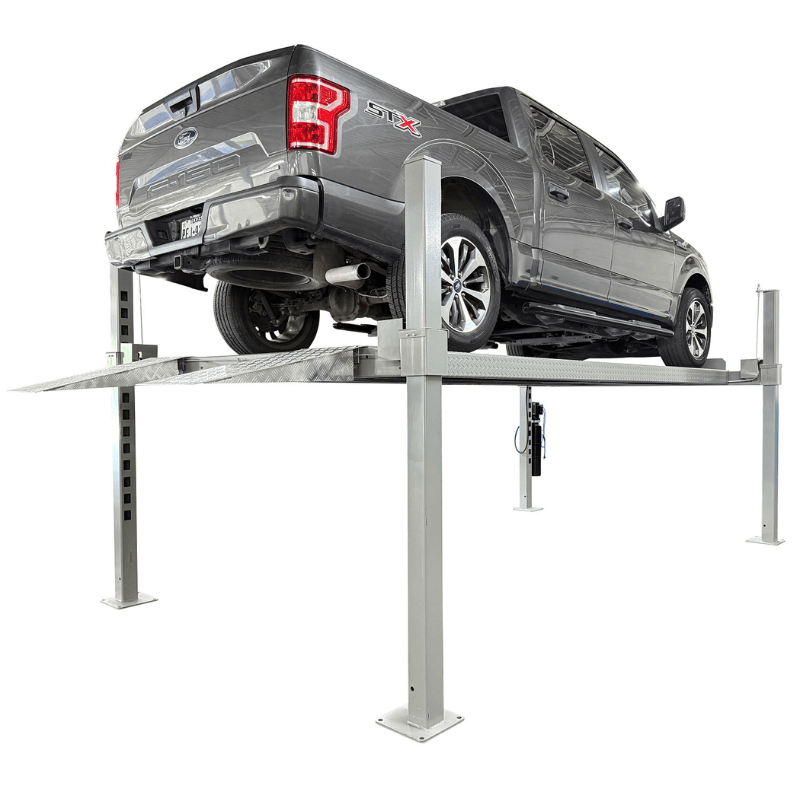

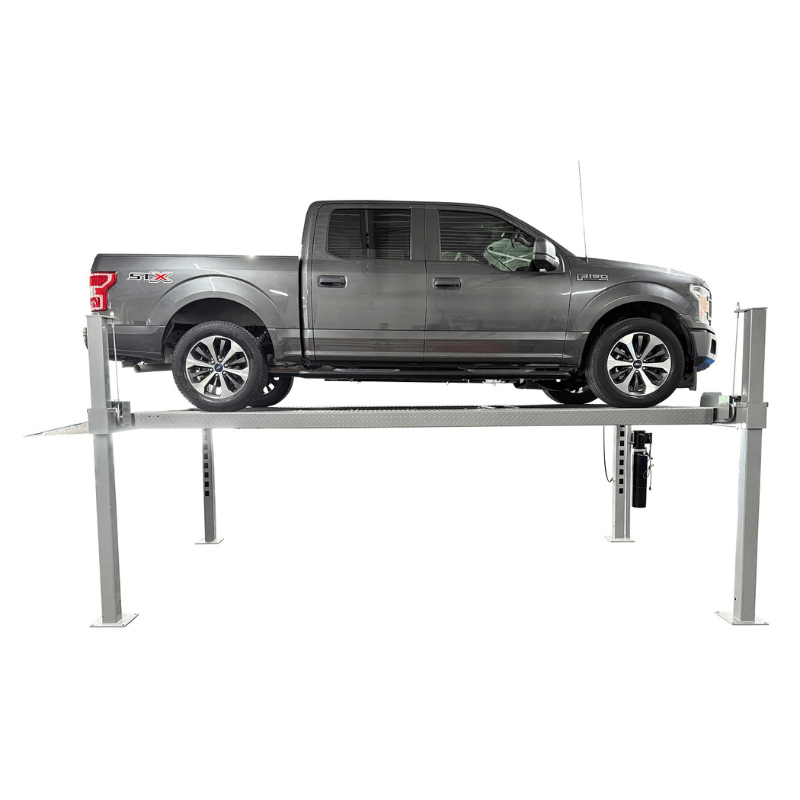

Equipped with a robust 10,000 lb lifting capacity, the NOS10000 handles cars, trucks, and SUVs with ease. Its oversized posts, boxed tracks, and reinforced slide collars ensure reliability, while the manual deadbolt locking system with oversized linkage keeps vehicles securely elevated. With a maximum lift height of 87 inches and 81.5 inches of clearance under the runways, it offers generous space for storage or maintenance work.

Practicality meets convenience with aluminum ramps that weigh just 29 lbs. each, a set of included drip trays, rolling jack tray, and heavy-duty casters for portability. Safety is enhanced with redundant backup systems and cable keepers to prevent run-off. The Triumph NOS10000 is built to deliver strength, safety, and flexibility — all backed by transparent pricing that includes freight upfront.

NOS 10000 Specifications:

• Capacity: 10,000 lbs

• Overall Height: 99.5"

• Overall Length w/ Ramps: 247"

• Overall Length No Ramps: 210.5"

• Length of Runway: 204"

• Overall Width: 123" (base plate to base plate)

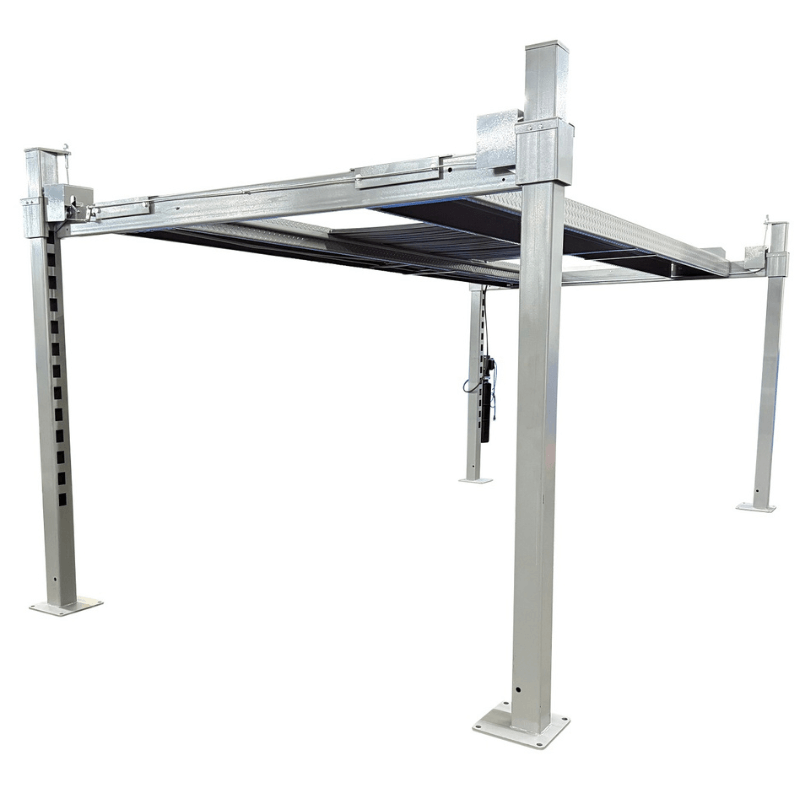

• Lift Height: 87"

• Height Under Runway: 81.5"


• Runway Width: 20"

• Drive Thru Width: 94.5"

• Width Between Columns: 109"

• Lowered Height: 5.5"


• Locking Positions: 14

• Base Plate Size: 12" x 12"

• Lock Release: Single Point

• Lift Time: 60 seconds

• 3/8" cable aircraft quality

• Voltage: 110V - 30AMP

• Motor: 3HP 20AMP

• Hydraulic Fluid Requirement: AW32


• Concrete Requirements: Minimum of 4"-3000psi

• Shipping Dimensions: 206" x 22" x 36" - 2,535 lbs

Triumph 10000lb 4 Post Lift Special Features:

• Sturdy outside slider design for maximum stability

• 4.75" x 4.75" posts with 6.5" x 6.5" slide collars

• Manual deadbolt locks with oversized release linkage

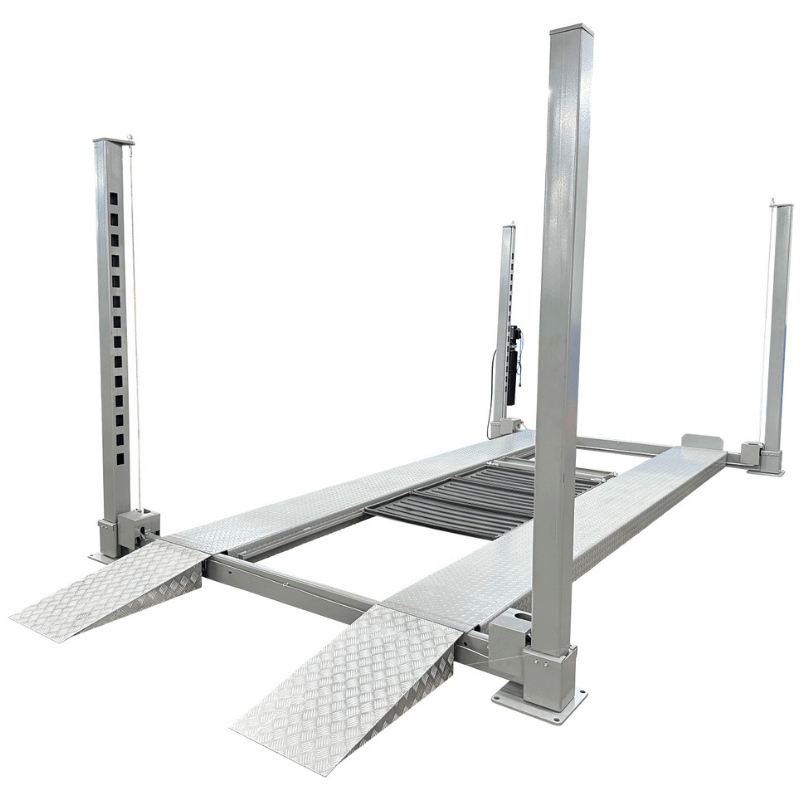

• Lightweight 36" aluminum ramps (29 lbs. each)

• Boxed tracks for enhanced structural strength

• Safety System - Secondary redundant safety system for added protection


• Cable keepers prevent cable run-off

• Hydraulic Oil: AW32 - 4 Gallons

• 12" x 12" 5/8" reinforced base plates

• Includes:

  • Heavy-duty poly-coated casters for mobility

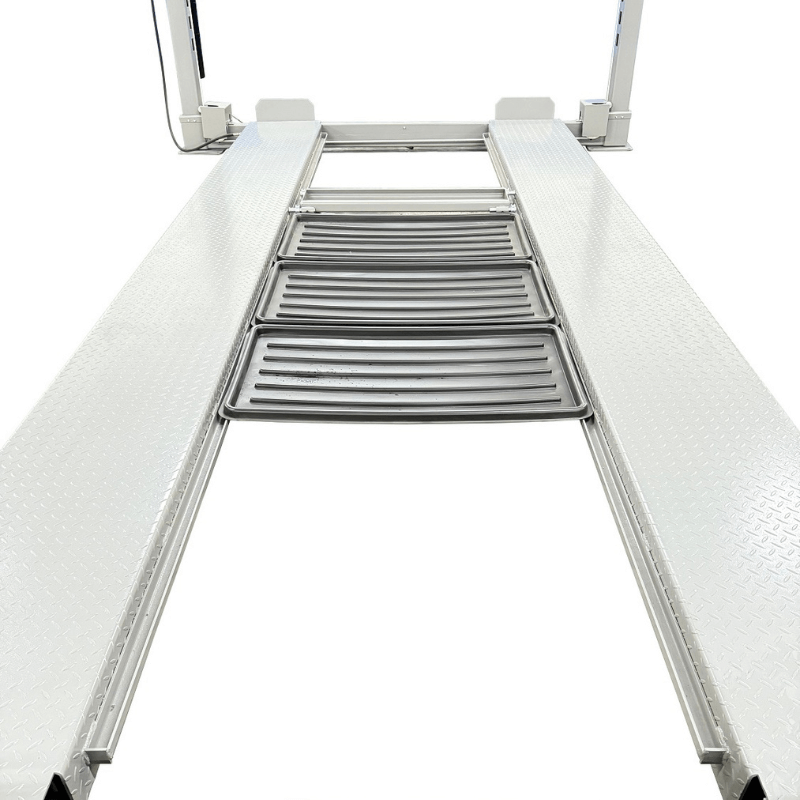

  • Drip trays included for cleaner storage

  • Portable Jack tray included for extra versatility

• Warranty: 1 year parts only

• Optional Item (Sold Separately)
  • RJ-5000 - 5,000lb Rolling Jack - Perfect match for your NOS10000, 10000lb Parking Lift
