The Rotary SPO20 two-post lift is a heavy-duty, symmetric lifting solution engineered for shops that service larger, heavier vehicles with speed and precision. With a massive 20,000 lb lifting capacity, the SPO20 is built to handle trucks, vans, and commercial vehicles while maintaining a low-profile stance that supports safe and efficient vehicle spotting. Designed for performance and durability, the SPO20 features Rotary’s legendary Double-S column design, delivering exceptional structural strength and smooth carriage travel. Multiple width, height, and low-ceiling configurations ensure the lift can be tailored to a wide range of shop layouts.
Rated for 20,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
What sets this two post lift apart within its category is the combination of rated capacity, documented specifications, and the safety engineering detailed below -- the kind of details worth checking before you commit to any two post lift.
Key Benefits
20,000 lb capacity for heavy-duty trucks and commercial vehicles
True symmetric lifting for balanced load distribution

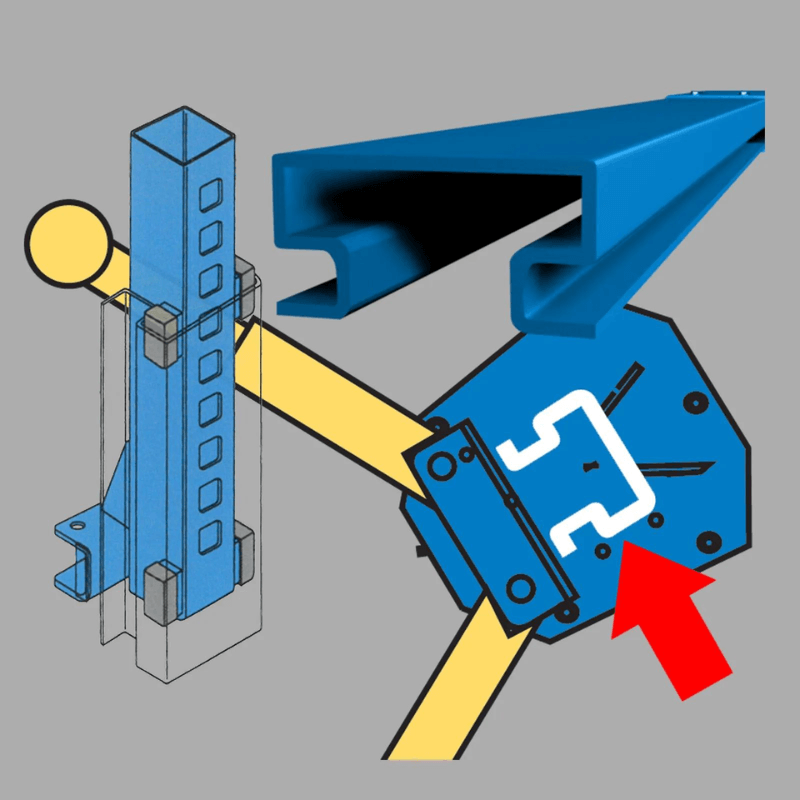

Legendary Double-S column design for maximum strength and longevity

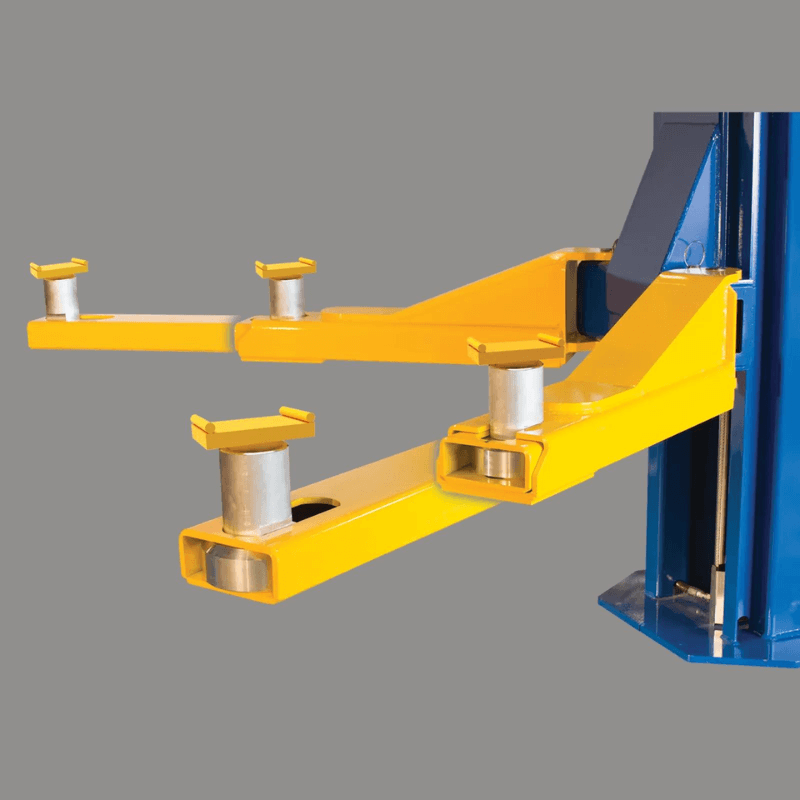

Extreme arm reach for wide vehicle compatibility

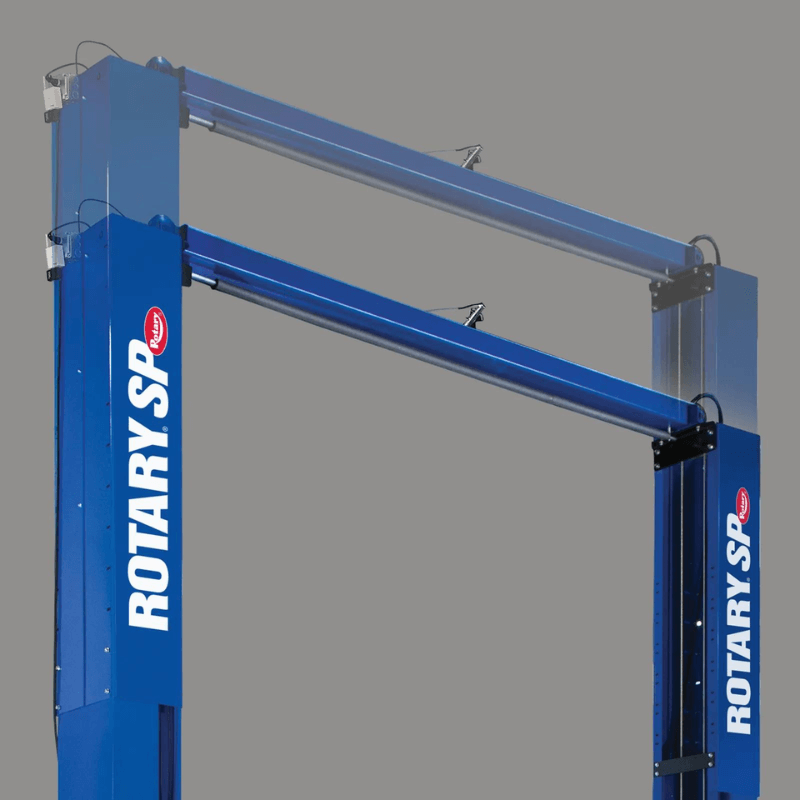

Multiple width, height, and low-ceiling configurations available
Low-profile design for easier vehicle spotting and positioning
Built for high-volume, professional shop environments
Warranty
Features Explained
Highlights that shape this lift's day-to-day performance:
20,000 lb capacity for heavy-duty trucks and commercial vehicles
True symmetric lifting for balanced load distribution
Legendary Double-S column design for maximum strength and longevity
Extreme arm reach for wide vehicle compatibility
Multiple width, height, and low-ceiling configurations available
Low-profile design for easier vehicle spotting and positioning
Ideal Applications
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Compatible Vehicles
Based on its specifications, this two post lift is suited to passenger cars, SUVs, and light-to-medium trucks up to its 20,000 lb rated capacity. Vehicles near the upper weight limit should be checked against their actual curb weight before use.
Technical Specifications
Specification |
Details |
Lifting Capacity |
20,000 lbs |
Maximum Load Per Arm |
5,000 lbs |
Rise Height |
80" |
Wide |
132 15/32" |
Standard |
182" – 200" |
Narrow |
120 15/32" |
Front Arm Reach (Min/Max) |
34 11/16" – 64" |
Rear Arm Reach (Min/Max) |
34 11/16" – 64" |
Minimum Adapter Height |
5 31/32" |
Maximum Adapter Height |
8 1/32" |
Low-Ceiling |
164" – 176" |
Motor |
4 HP |
Voltage |
208–230V |
Time of Full Rise |
81 seconds |
What's Included
The base unit as configured
Manufacturer's installation and operation manual
Safety Features
Load-tested construction to the lift's rated capacity for consistent, predictable performance -- included as a built-in safeguard for safe day-to-day operation.
Installation Requirements
Concrete requirements: Not specified by the manufacturer for this model -- confirm your slab thickness and PSI rating with a licensed installer before delivery.
Ceiling clearance: Ceiling Height:
Electrical requirements: Confirm voltage and phase requirements with your installer before delivery.
Installation difficulty: Professional installation is recommended for anchoring, alignment, and safety-system checks.
Estimated installation time: Not specified by the manufacturer; your installer can provide a time estimate based on your site.
Shipping Information
Free shipping nationwide on this item, including free forklift delivery.
Full shipping terms and delivery details are covered in our Shipping Policy.
Tracking information is emailed once your order ships.
Questions before you order? Call +1 (623) 850-3643 or email support@triumphliftsus.com.
Warranty
This lift is covered by the manufacturer's warranty. Specific terms and coverage details are provided with your order -- keep your invoice on hand, as it's required for any warranty service or claims.
Why Buy From Our Store
Free nationwide shipping, including free forklift delivery on qualifying orders
Secure checkout on every order
Expert customer support from a real, US-based team
Manufacturer warranty honored on every lift we sell
Fast order processing and shipment
Reliable service from a family-owned business
Trusted, name-brand automotive lift equipment
Responsive support by phone, text, or email
Frequently Asked Questions
What is the weight capacity?This two post lift is rated for 20,000 lb.
Do I need special electrical work?See the Motor/Power specification above; an electrician can confirm compatibility with your setup.
Can I install this myself?Professional installation is recommended for correct anchoring and safety-system function.
Is there a warranty?Yes, covered by the manufacturer's warranty; terms are included with your order.
How does shipping work?Ships free nationwide with forklift delivery included -- see our Shipping Policy for details.
What's included?See the What's Included section above for the full list.
How much does it cost?Current pricing is $18,192.9 -- the price shown at checkout is always accurate.
Can I return this if it doesn't fit my space?Yes, our standard 30-day return policy applies; buyer covers return shipping.
More About This Two Post Lift
Choosing the right two post lift comes down to matching capacity, build quality, and installation requirements to how it will actually be used. The Rotary SPO20 20,000lb 2 Post Lift - Adjustable Width/Height; ALI Certified is a two post lift, which lifts from the vehicle's frame or designated lift points -- a space-efficient choice that leaves the floor beneath the vehicle completely open for full underbody access. With a 20,000 lb capacity, it's built as serious car lift equipment rather than a bargain compromise. As auto lift equipment, it's engineered for repeatable, dependable performance rather than occasional light-duty use -- the kind of durability that separates a dependable automotive lift from equipment that cuts corners on materials or safety engineering. Combined with free nationwide shipping (or warehouse pickup on oversized models), a manufacturer warranty on every unit, and support from a real US-based team, this two post lift is a well-rounded choice for a first home garage bay or a working shop floor.
Ready to add reliable, professional-grade lifting capacity to your garage or shop? Order the Rotary SPO20 20,000lb 2 Post Lift - Adjustable Width/Height; ALI Certified today, backed by free shipping or warehouse pickup, a manufacturer warranty, and support from our team from checkout through delivery.
