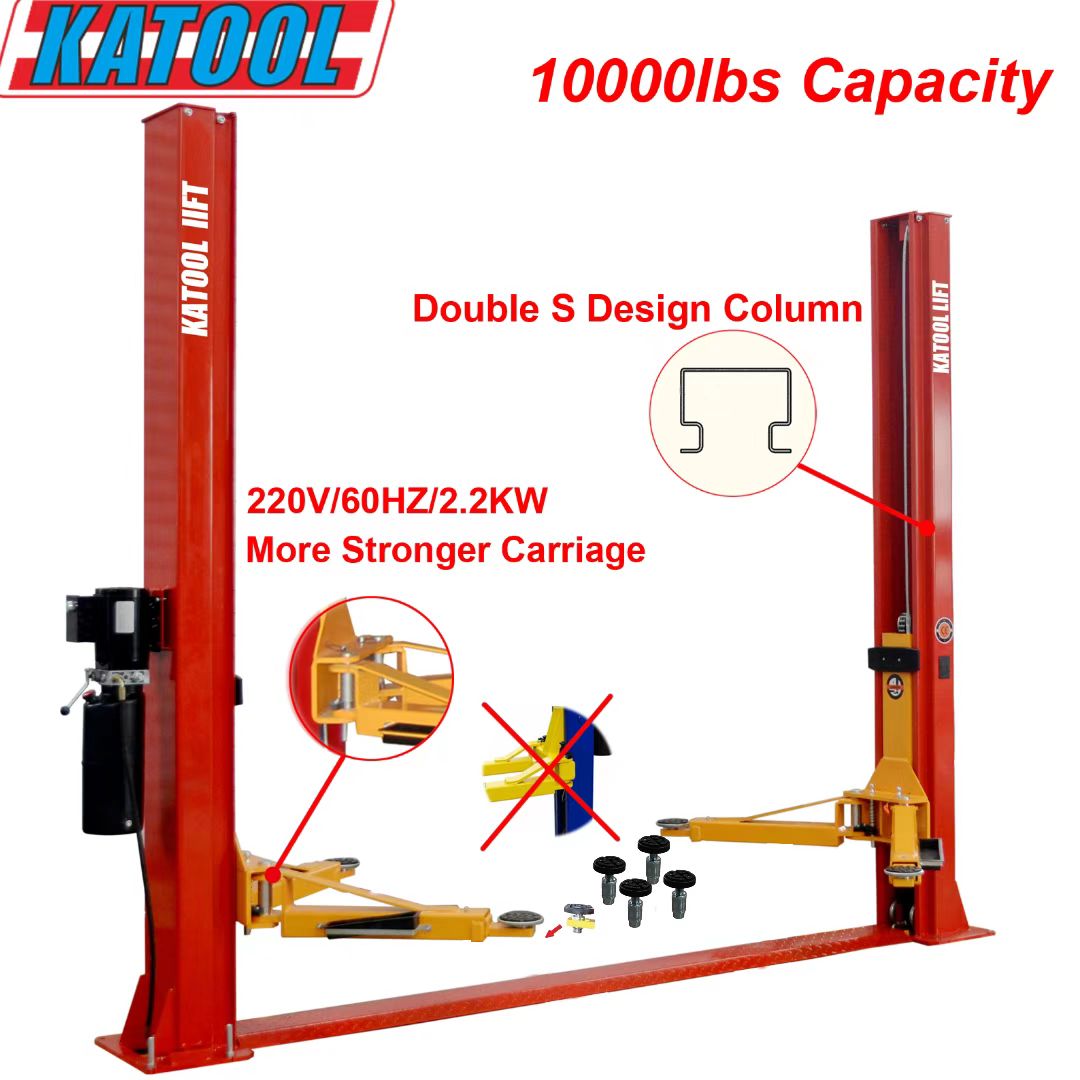

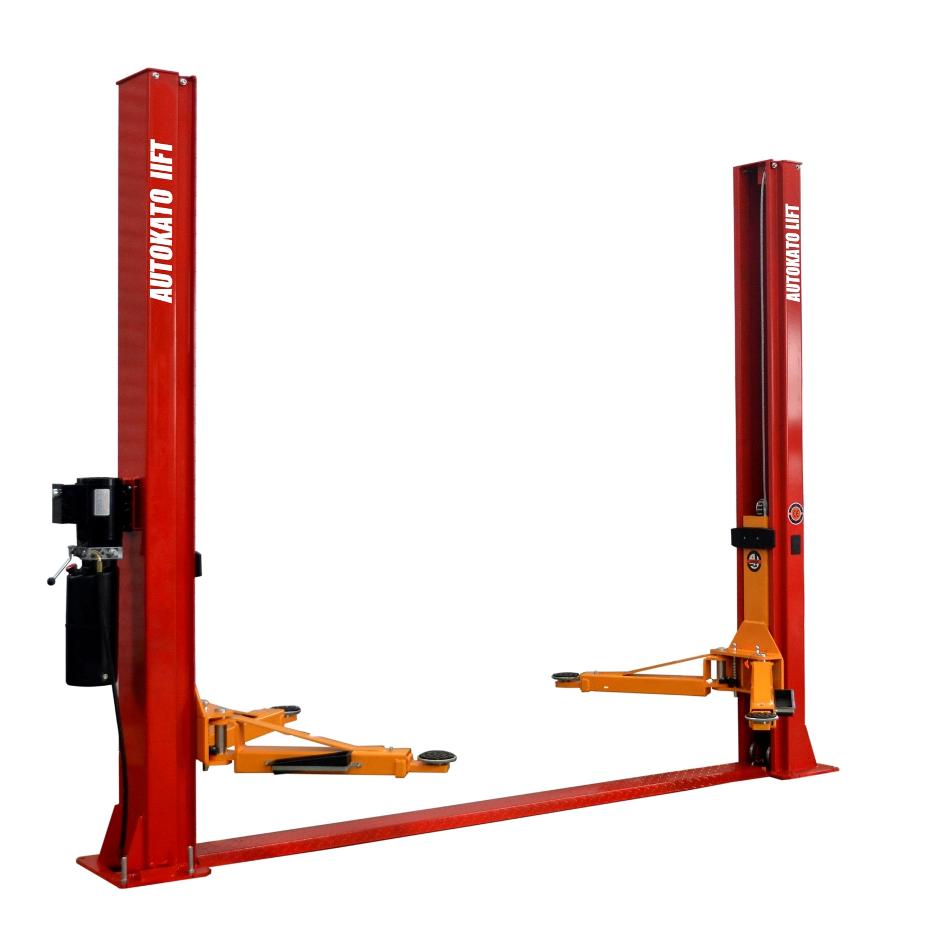

Katool KT-H100 Two-Post Vehicle Lift — 10,000 lb Professional Garage Lift Reliable power for professional bays.The Katool KT-H100 is a heavy-duty two-post vehicle lift engineered to give mechanics, performance garages, and serious DIYers dependable lifting performance with a balanced footprint and robust safety features. Designed to handle cars, SUVs, and light trucks with confidence, this lift combines rugged construction with proven hydraulic performance for everyday workshop use.
Rated for 10,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
What sets this two post lift apart within its category is the combination of rated capacity, documented specifications, and the safety engineering detailed below -- the kind of details worth checking before you commit to any two post lift.
Key Benefits
10,000 lb (4,500 kg) Lifting Capacity — Supports a wide range of vehicles from daily drivers to larger SUVs.
Dual Hydraulic Chain-Drive Cylinders — Smooth and synchronized lifting for stable, balanced elevation.

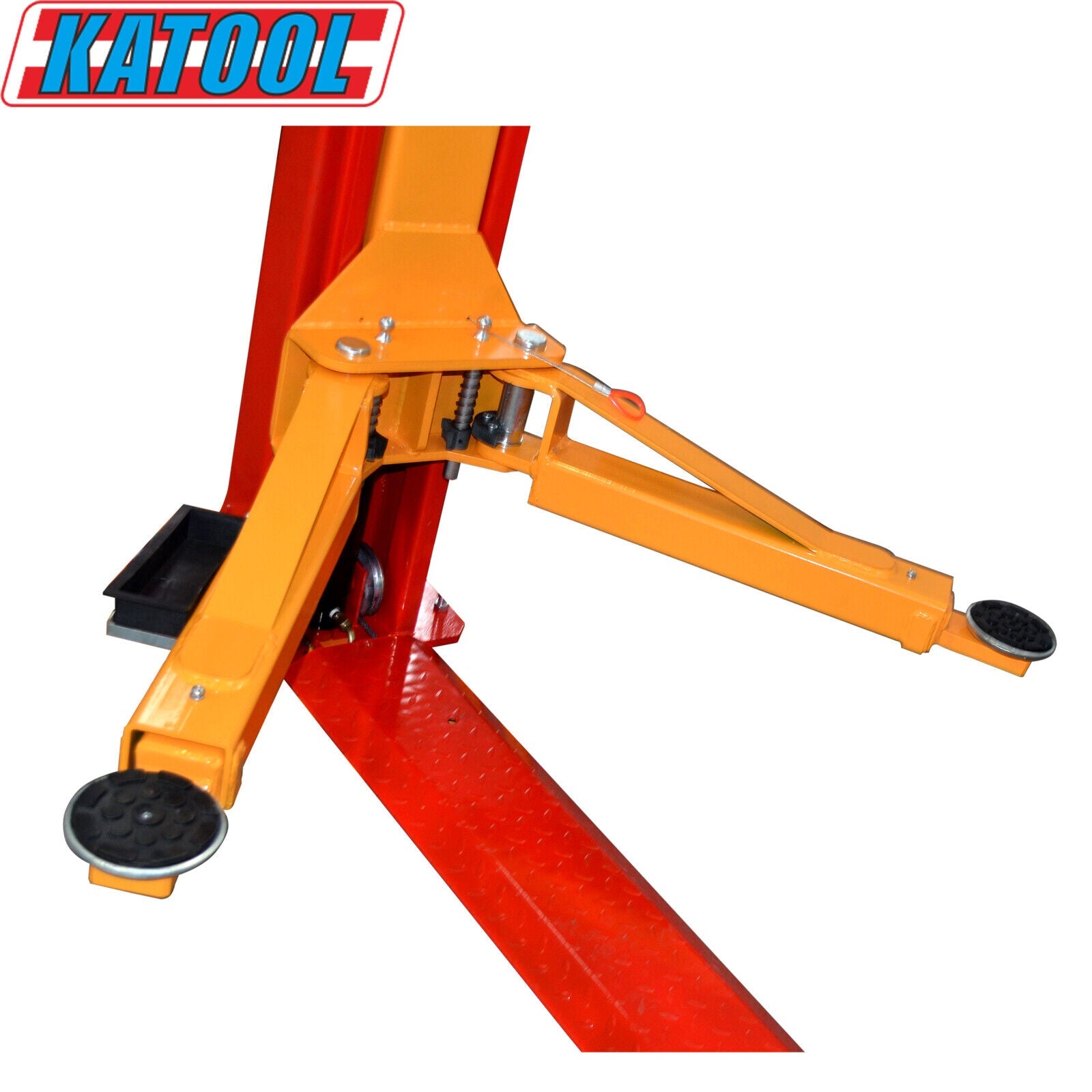

Symmetric Arm Design — Balanced lifting geometry for ease of positioning and versatile service.
Manual Safety Release (Both Sides) — Technician-friendly, accessible safety lowering from either column.

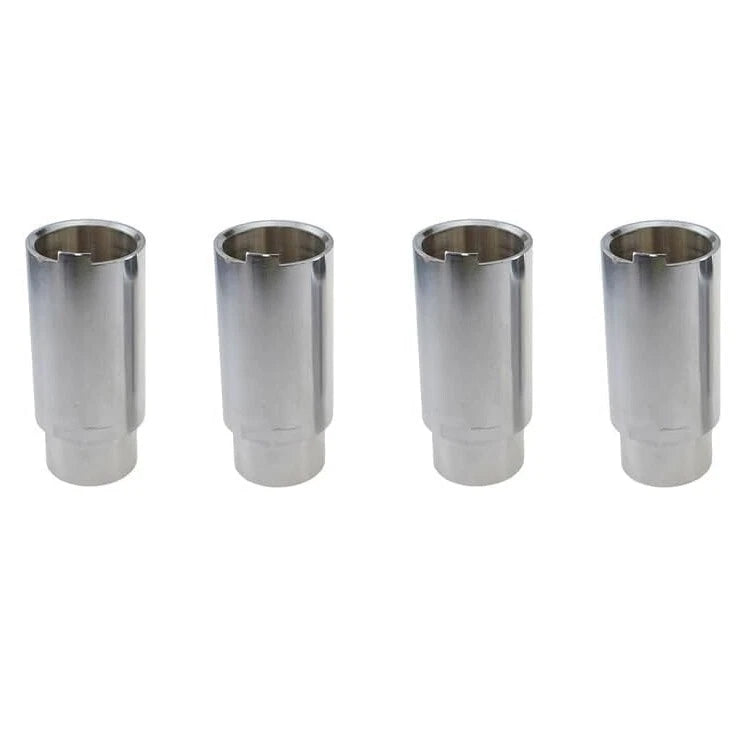

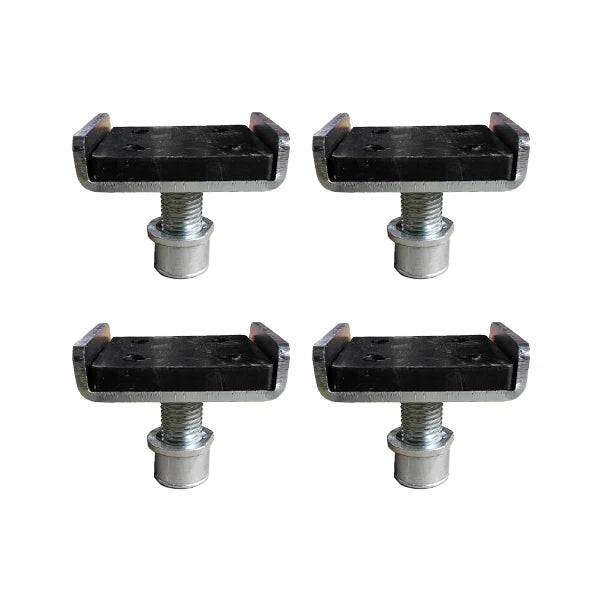

Included Accessories — Extension support adapter sets (+30 mm & +120 mm),
CE Certified Safety — Tested to 115% dynamic and 150% static load standards for added peace of mind.
Features Explained
Highlights that shape this lift's day-to-day performance:
10,000 lb (4,500 kg) Lifting Capacity — Supports a wide range of vehicles from daily drivers to larger SUVs.
Dual Hydraulic Chain-Drive Cylinders — Smooth and synchronized lifting for stable, balanced elevation.
Symmetric Arm Design — Balanced lifting geometry for ease of positioning and versatile service.
Manual Safety Release (Both Sides) — Technician-friendly, accessible safety lowering from either column.
Included Accessories — Extension support adapter sets (+30 mm & +120 mm),
CE Certified Safety — Tested to 115% dynamic and 150% static load standards for added peace of mind.
Ideal Applications
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Compatible Vehicles
Based on its specifications, this two post lift is suited to passenger cars, SUVs, and light-to-medium trucks up to its 10,000 lb rated capacity. Vehicles near the upper weight limit should be checked against their actual curb weight before use.

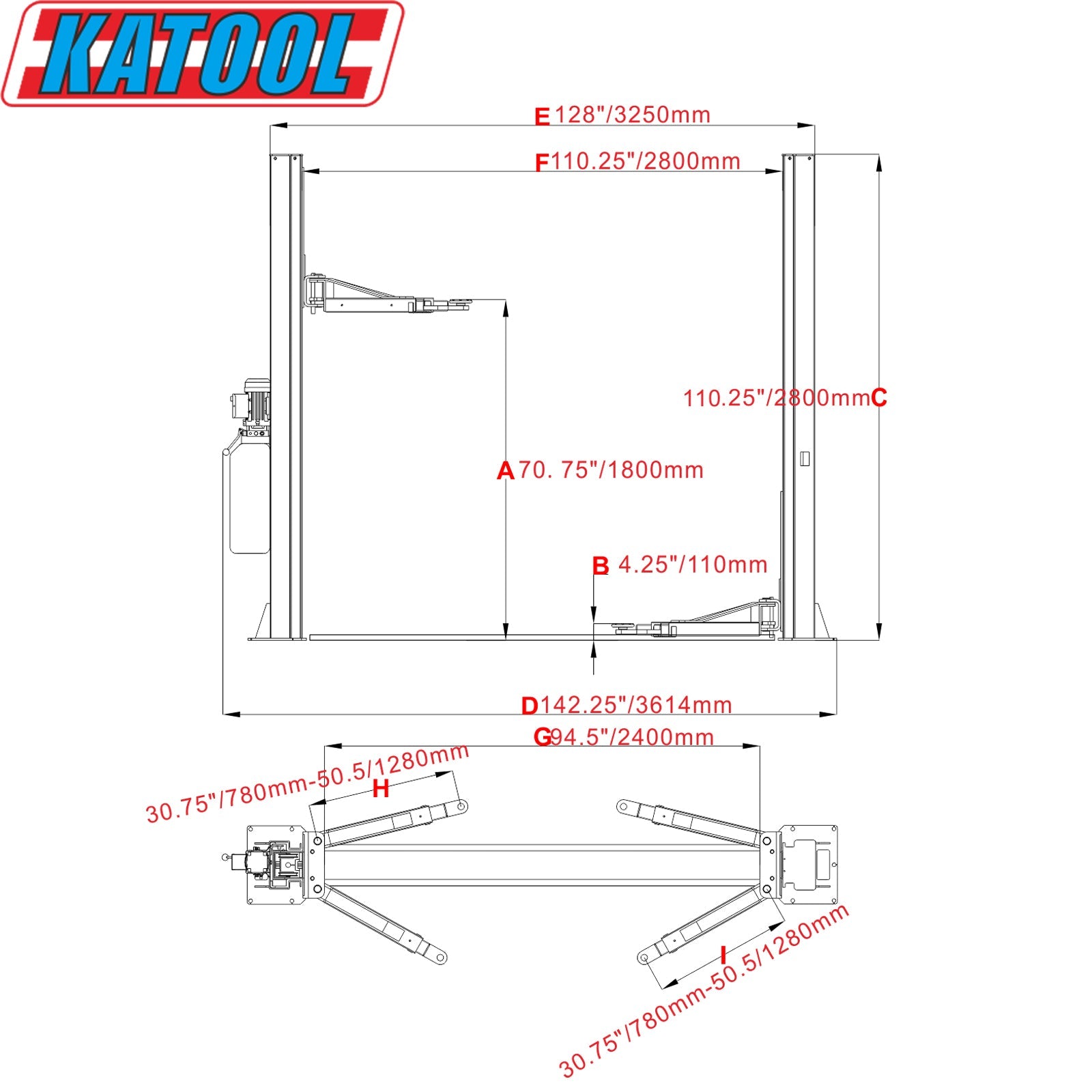

Technical Specifications
Specification |
Details |
Model |
Katool KT-H100 Two-Post Lift |
Lifting Capacity |
10,000 lb / 4,500 kg |
Max. Lifting Height |
70.75 in / 1,800 mm |
Minimum Pad Height |
4.25 in / 110 mm |
Overall Height |
110.25 in / 2,800 mm |
Overall Width |
142.25 in / 3,614 mm |
Inside Column Width |
110.25 in / 2,800 mm |
Drive-Through Clearance |
94.5 in / 2,400 mm |
Arm Reach (Front/Rear) |
Min: 30.75 in / 780 mm / Max: 50.5 in / 1,280 mm (2-stage) |
Motor / Power |
220 VAC / 60 Hz / 1 PH / 2.2 kW (110 V optional for $190) |
Net Weight |
~1,256 lb / 570 kg |
Safety Certifications |
CE Approved (115% dynamic / 150% static load tested) |
Typical Weight Capacities |
Two-post lifts generally have weight capacities ranging from 7,000 to 20,000 pounds, accommodating various vehicles from light-duty cars to heavy-duty trucks. It's important to note that each lift arm also has its own weight limit. For instance, a lift with a 10,000-pound total capacity may have each arm rated for 2,500 pounds. Therefore, if a vehicle's weight distribution exceeds this per-arm limit, the lift may not be suitable. |
What's Included
Included Accessories — Extension support adapter sets (+30 mm & +120 mm),
Safety Features
Manual Safety Release (Both Sides) — Technician-friendly, accessible safety lowering from either column. -- included as a built-in safeguard for safe day-to-day operation.
CE Certified Safety — Tested to 115% dynamic and 150% static load standards for added peace of mind. -- included as a built-in safeguard for safe day-to-day operation.
Installation Requirements
Concrete requirements: Not specified by the manufacturer for this model -- confirm your slab thickness and PSI rating with a licensed installer before delivery.
Electrical requirements: 220 VAC / 60 Hz / 1 PH / 2.2 kW (110 V optional for $190)
Installation difficulty: Professional installation is recommended for anchoring, alignment, and safety-system checks.
Estimated installation time: Not specified by the manufacturer; your installer can provide a time estimate based on your site.
Shipping Information
Free shipping nationwide on this item, including free forklift delivery.
Full shipping terms and delivery details are covered in our Shipping Policy.
Tracking information is emailed once your order ships.
Questions before you order? Call +1 (623) 850-3643 or email support@triumphliftsus.com.
Warranty
This lift is covered by the manufacturer's warranty. Specific terms and coverage details are provided with your order -- keep your invoice on hand, as it's required for any warranty service or claims.
Why Buy From Our Store
Free nationwide shipping, including free forklift delivery on qualifying orders
Secure checkout on every order
Expert customer support from a real, US-based team
Manufacturer warranty honored on every lift we sell
Fast order processing and shipment
Reliable service from a family-owned business
Trusted, name-brand automotive lift equipment
Responsive support by phone, text, or email
Frequently Asked Questions
What is the weight capacity?This two post lift is rated for 10,000 lb.
Do I need special electrical work?See the Motor/Power specification above; an electrician can confirm compatibility with your setup.
Can I install this myself?Professional installation is recommended for correct anchoring and safety-system function.
Is there a warranty?Yes, covered by the manufacturer's warranty; terms are included with your order.
How does shipping work?Ships free nationwide with forklift delivery included -- see our Shipping Policy for details.
What's included?See the What's Included section above for the full list.
How much does it cost?Current pricing is $1,099.45 -- the price shown at checkout is always accurate.
Can I return this if it doesn't fit my space?Yes, our standard 30-day return policy applies; buyer covers return shipping.
More About This Two Post Lift
Choosing the right two post lift comes down to matching capacity, build quality, and installation requirements to how it will actually be used. The Katool KT-H100 Two Post Lift 10,000lbs Capacity is a two post lift, which lifts from the vehicle's frame or designated lift points -- a space-efficient choice that leaves the floor beneath the vehicle completely open for full underbody access. With a 10,000 lb capacity, it's built as serious car lift equipment rather than a bargain compromise. As auto lift equipment, it's engineered for repeatable, dependable performance rather than occasional light-duty use -- the kind of durability that separates a dependable automotive lift from equipment that cuts corners on materials or safety engineering. Combined with free nationwide shipping (or warehouse pickup on oversized models), a manufacturer warranty on every unit, and support from a real US-based team, this two post lift is a well-rounded choice for a first home garage bay or a working shop floor.
Ready to add reliable, professional-grade lifting capacity to your garage or shop? Order the Katool KT-H100 Two Post Lift 10,000lbs Capacity today, backed by free shipping or warehouse pickup, a manufacturer warranty, and support from our team from checkout through delivery.
