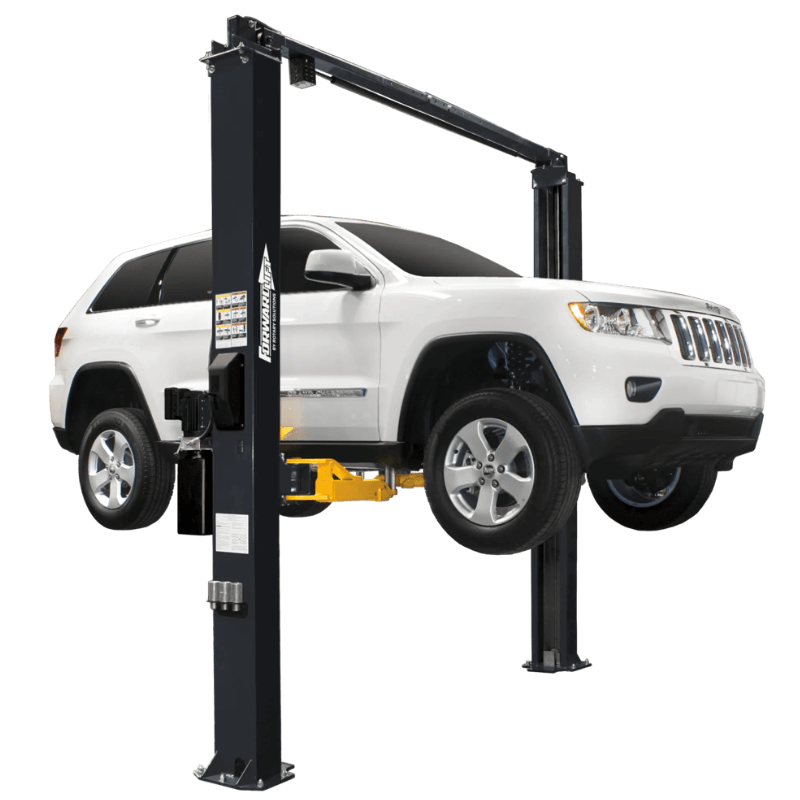

The Forward Lift I10 is a professional-grade two-post vehicle lift engineered to safely raise a wide range of passenger vehicles, trucks, and vans up to 10,000 lbs. Designed for modern service environments, this lift features advanced arm technology that allows technicians to lift vehicles symmetrically or asymmetrically, providing flexibility for varying wheelbases and lift points. Its robust design supports daily use in demanding automotive service operations. At the core of the I10 is the Spot-Rite™ three-stage front arm system, which delivers extended reach and precise vehicle positioning.
Rated for 10,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
What sets this two post lift apart within its category is the combination of rated capacity, documented specifications, and the safety engineering detailed below -- the kind of details worth checking before you commit to any two post lift.
Key Benefits

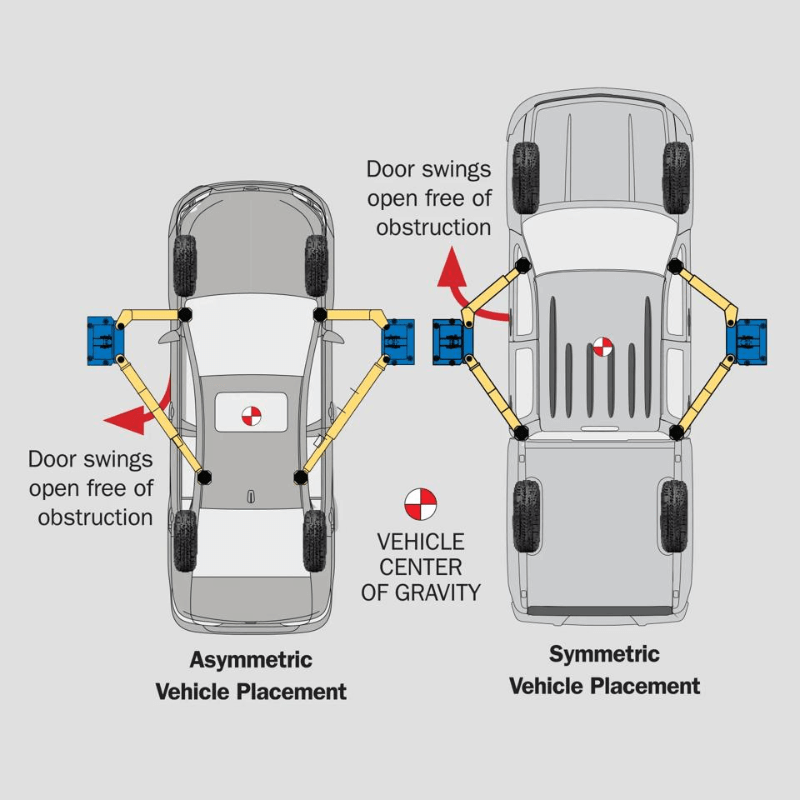

Spot-Rite™ three-stage front arms for symmetric and asymmetric lifting
ALI/ETL Gold Certified for verified safety and performance compliance
Frame-engaging rubber-padded truck adapters with multiple extensions
Extended height kit available for increased vertical clearance
Flexible lift configurations to accommodate a wide range of vehicles
Durable construction designed for high-volume commercial use
Smooth and controlled lifting operation for technician safety
Trusted Rotary engineering for long-term reliability
Features Explained
Highlights that shape this lift's day-to-day performance:
Spot-Rite™ three-stage front arms for symmetric and asymmetric lifting
ALI/ETL Gold Certified for verified safety and performance compliance
Frame-engaging rubber-padded truck adapters with multiple extensions
Extended height kit available for increased vertical clearance
Flexible lift configurations to accommodate a wide range of vehicles
Durable construction designed for high-volume commercial use
Ideal Applications
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Compatible Vehicles
Based on its specifications, this two post lift is suited to passenger cars, SUVs, and light-to-medium trucks up to its 10,000 lb rated capacity. Vehicles near the upper weight limit should be checked against their actual curb weight before use.
Technical Specifications
Specification |
Details |
Lifting Capacity |
10,000 lbs |
Maximum Rise (with 5" extension) |
76 1/4" |
Overall Height |
143" |
Overall Width |
131" (optional 137") |
Drive-Thru Clearance |
99" (optional 105") |
Overhead Switch Height |
137 5/8" |
Front Arm Reach (Min / Max) |
23" – 44 1/2" |
Rear Arm Reach (Min / Max) |
36" – 58" |
Adapter Height |
3 3/4" (no extension) / 8 3/4" (with 5" extension) |
Drive Thru Clearance |
109" (optional 105") |
Required Ceiling Height |
144" |
Motor |
2 HP, single-phase, 60 Hz |
Electrical Requirements |
208–230V, 17 amps |
Warranty |
5 Years Structural |
What's Included
The base unit as configured
Manufacturer's installation and operation manual
Safety Features
ALI/ETL Gold Certified for verified safety and performance compliance -- included as a built-in safeguard for safe day-to-day operation.
Smooth and controlled lifting operation for technician safety -- included as a built-in safeguard for safe day-to-day operation.
Installation Requirements
Concrete requirements: Not specified by the manufacturer for this model -- confirm your slab thickness and PSI rating with a licensed installer before delivery.
Ceiling clearance: Ceiling Height: 144"
Electrical requirements: Confirm voltage and phase requirements with your installer before delivery.
Installation difficulty: Professional installation is recommended for anchoring, alignment, and safety-system checks.
Estimated installation time: Not specified by the manufacturer; your installer can provide a time estimate based on your site.
Shipping Information
Free shipping nationwide on this item, including free forklift delivery.
Full shipping terms and delivery details are covered in our Shipping Policy.
Tracking information is emailed once your order ships.
Questions before you order? Call +1 (623) 850-3643 or email support@triumphliftsus.com.
Warranty
This lift is covered by the manufacturer's warranty. Specific terms and coverage details are provided with your order -- keep your invoice on hand, as it's required for any warranty service or claims.
Why Buy From Our Store
Free nationwide shipping, including free forklift delivery on qualifying orders
Secure checkout on every order
Expert customer support from a real, US-based team
Manufacturer warranty honored on every lift we sell
Fast order processing and shipment
Reliable service from a family-owned business
Trusted, name-brand automotive lift equipment
Responsive support by phone, text, or email
Frequently Asked Questions
What is the weight capacity?This two post lift is rated for 10,000 lb.
Do I need special electrical work?See the Motor/Power specification above; an electrician can confirm compatibility with your setup.
Can I install this myself?Professional installation is recommended for correct anchoring and safety-system function.
Is there a warranty?Yes, covered by the manufacturer's warranty; terms are included with your order.
How does shipping work?Ships free nationwide with forklift delivery included -- see our Shipping Policy for details.
What's included?See the What's Included section above for the full list.
How much does it cost?Current pricing is $3,205.4 -- the price shown at checkout is always accurate.
Can I return this if it doesn't fit my space?Yes, our standard 30-day return policy applies; buyer covers return shipping.
More About This Two Post Lift
Choosing the right two post lift comes down to matching capacity, build quality, and installation requirements to how it will actually be used. The Forward Lift I10 10,000lb 2 Post Lift - ALI Certified is a two post lift, which lifts from the vehicle's frame or designated lift points -- a space-efficient choice that leaves the floor beneath the vehicle completely open for full underbody access. With a 10,000 lb capacity, it's built as serious car lift equipment rather than a bargain compromise. As auto lift equipment, it's engineered for repeatable, dependable performance rather than occasional light-duty use -- the kind of durability that separates a dependable automotive lift from equipment that cuts corners on materials or safety engineering. Combined with free nationwide shipping (or warehouse pickup on oversized models), a manufacturer warranty on every unit, and support from a real US-based team, this two post lift is a well-rounded choice for a first home garage bay or a working shop floor.
Ready to add reliable, professional-grade lifting capacity to your garage or shop? Order the Forward Lift I10 10,000lb 2 Post Lift - ALI Certified today, backed by free shipping or warehouse pickup, a manufacturer warranty, and support from our team from checkout through delivery.
