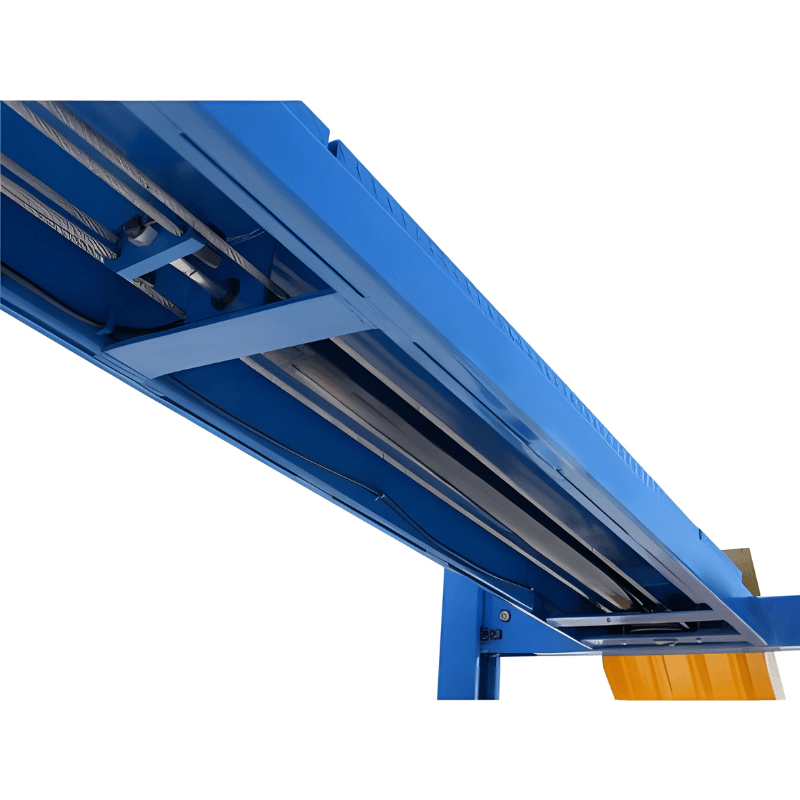

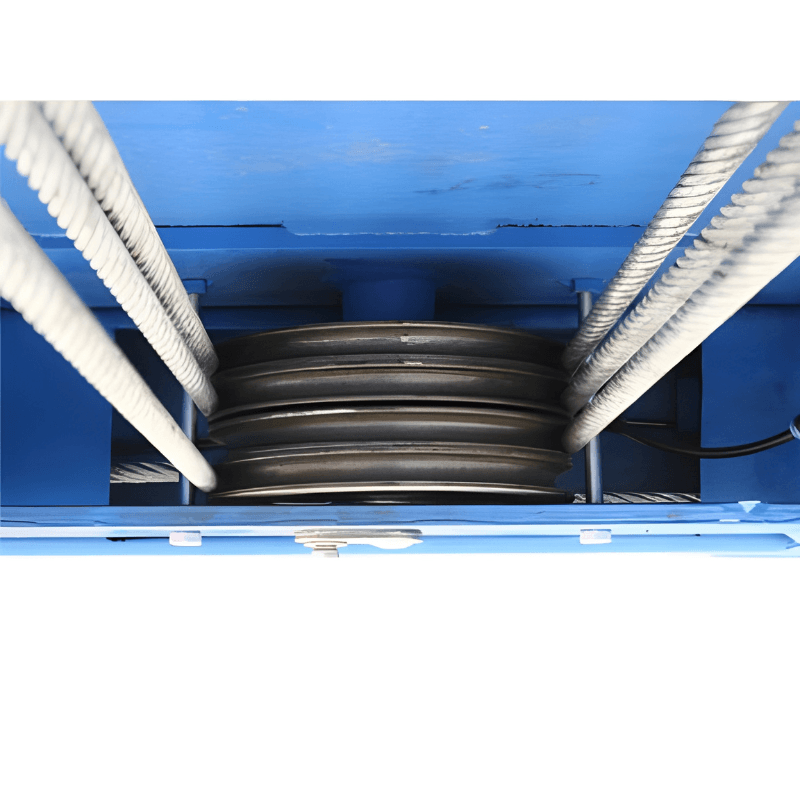

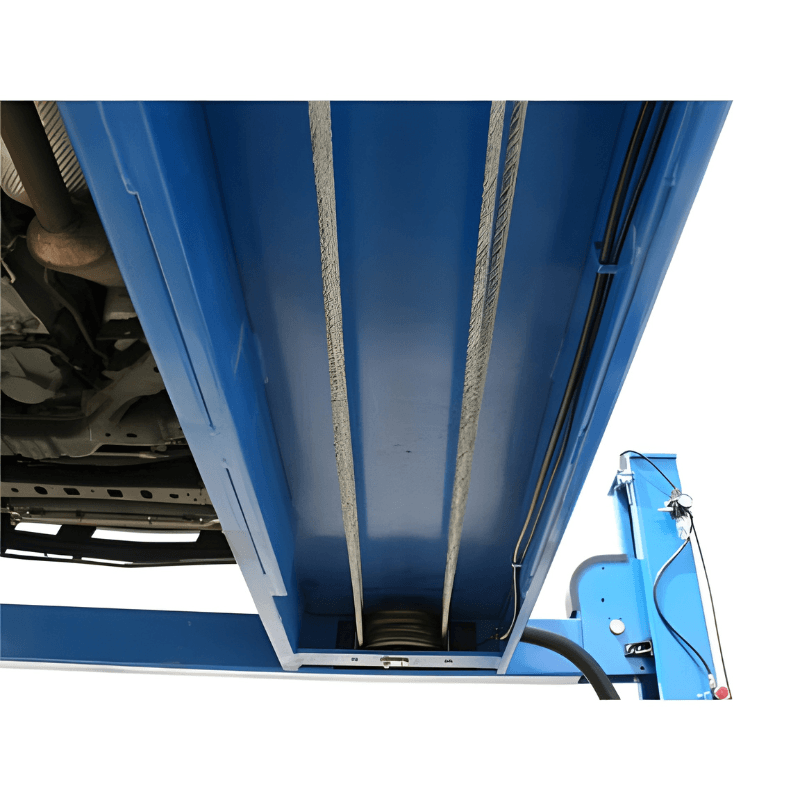

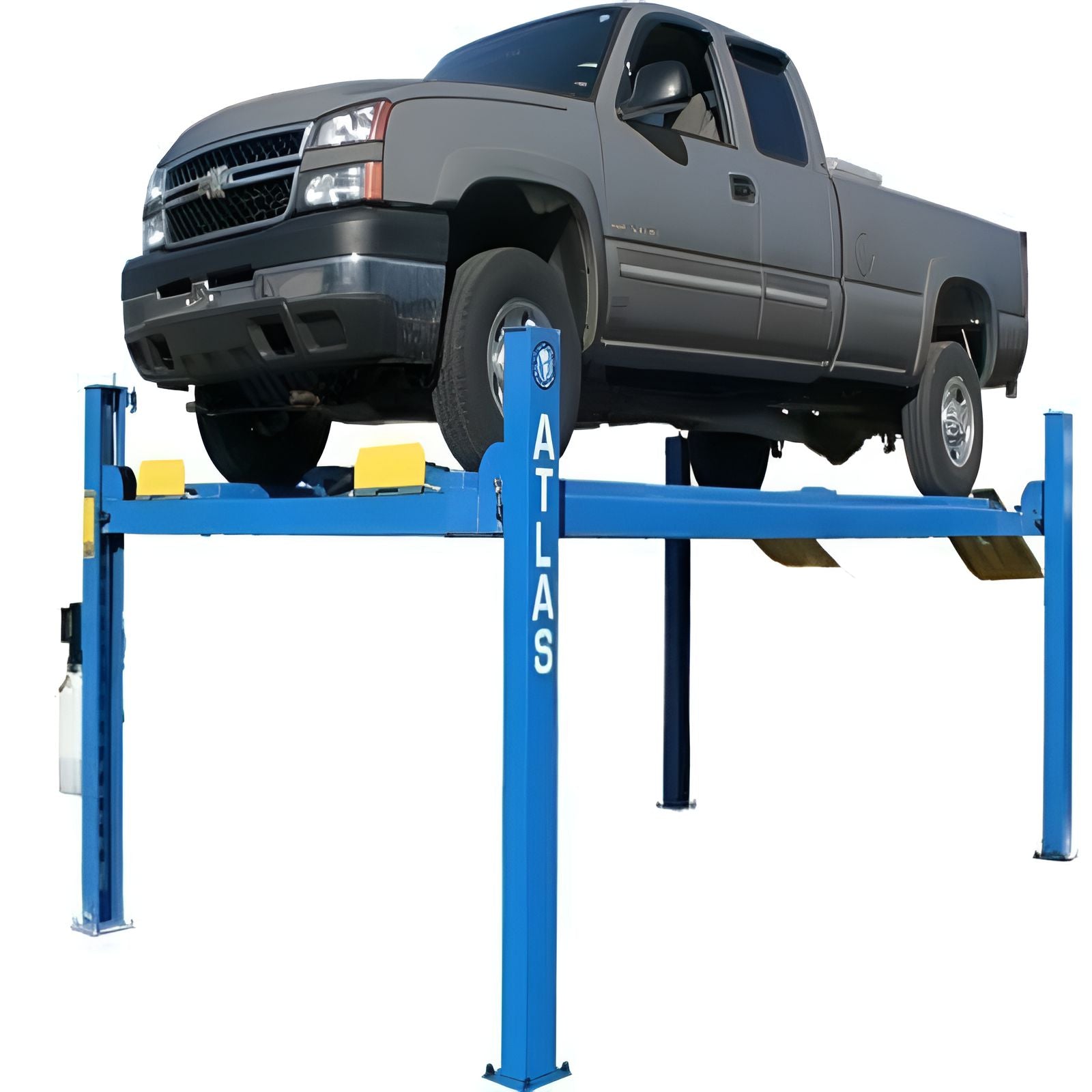

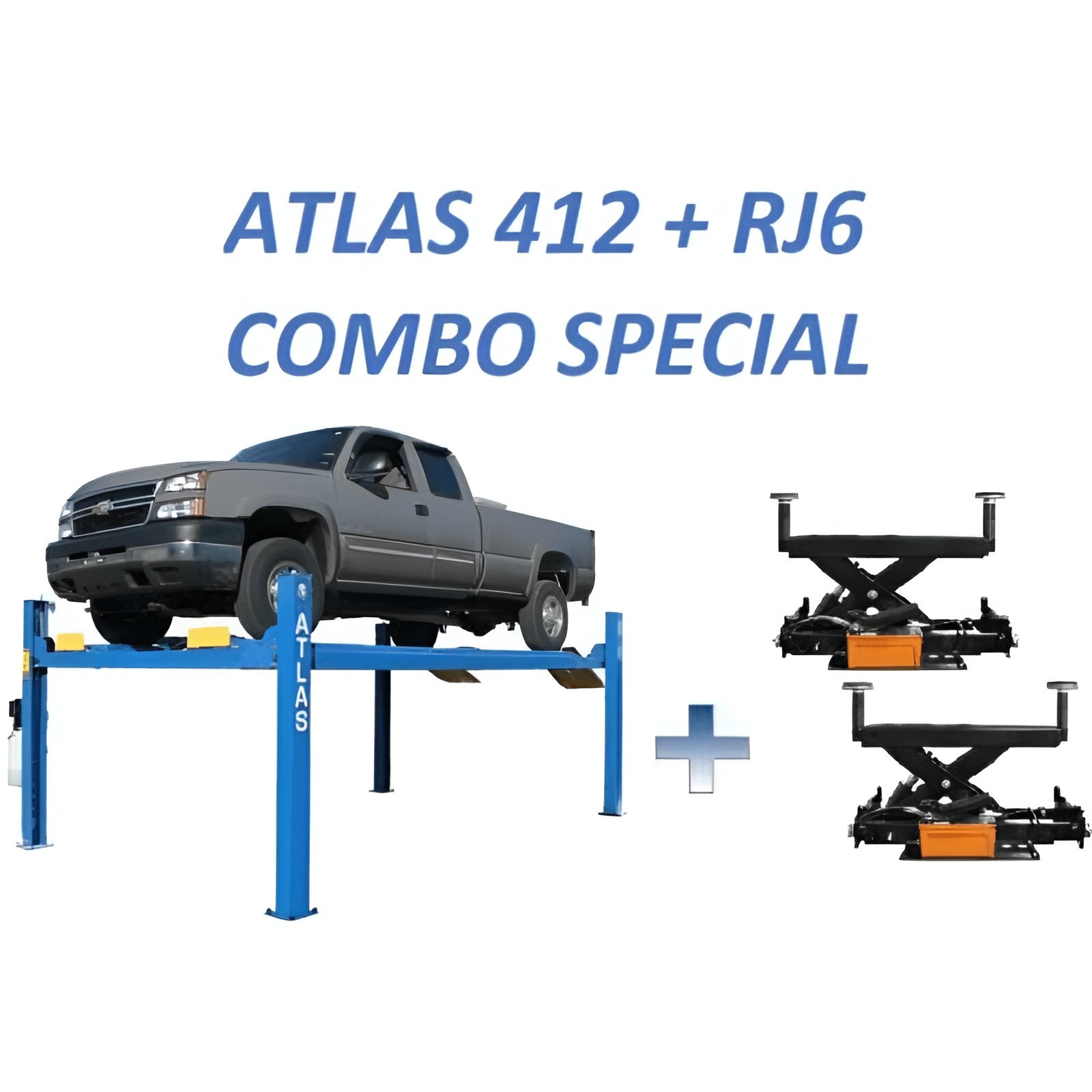

412 12,000 lb 4-Post Lift + (2)RJ6 Jacks Combo by Atlas Your garage deserves a powerhouse duo that can handle any job. The Atlas 412 4 Post Lift boasts a 12,000 lb capacity, lifting vehicles to an impressive 77 3/4" high. With 194 1/2" long and 20" wide runways, it accommodates wheelbases up to 185". The high-strength cable system and underslung hydraulic cylinder, powered by a 220-volt single-phase unit, ensure smooth operation. This lift offers a generous 70 1/4" clearance under the runways, maximizing your workspace. Paired with two Atlas RJ6 rolling bridge jacks, each with a 6,000 lb capacity, this combo is unbeatable.
Rated for 12,000 lb, it's suited to shops wanting a complete, ready-to-use lifting setup out of the box, buyers who know they'll need rolling jacks or accessories from day one, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
What sets this lift package apart within its category is the combination of rated capacity, documented specifications, and the safety engineering detailed below -- the kind of details worth checking before you commit to any lift package.
Key Benefits
12,000 lb. Capacity
Heavy Duty, Commercial Grade
Extra Tall, Extra Wide & Extra Long
Diamond Plated Runways

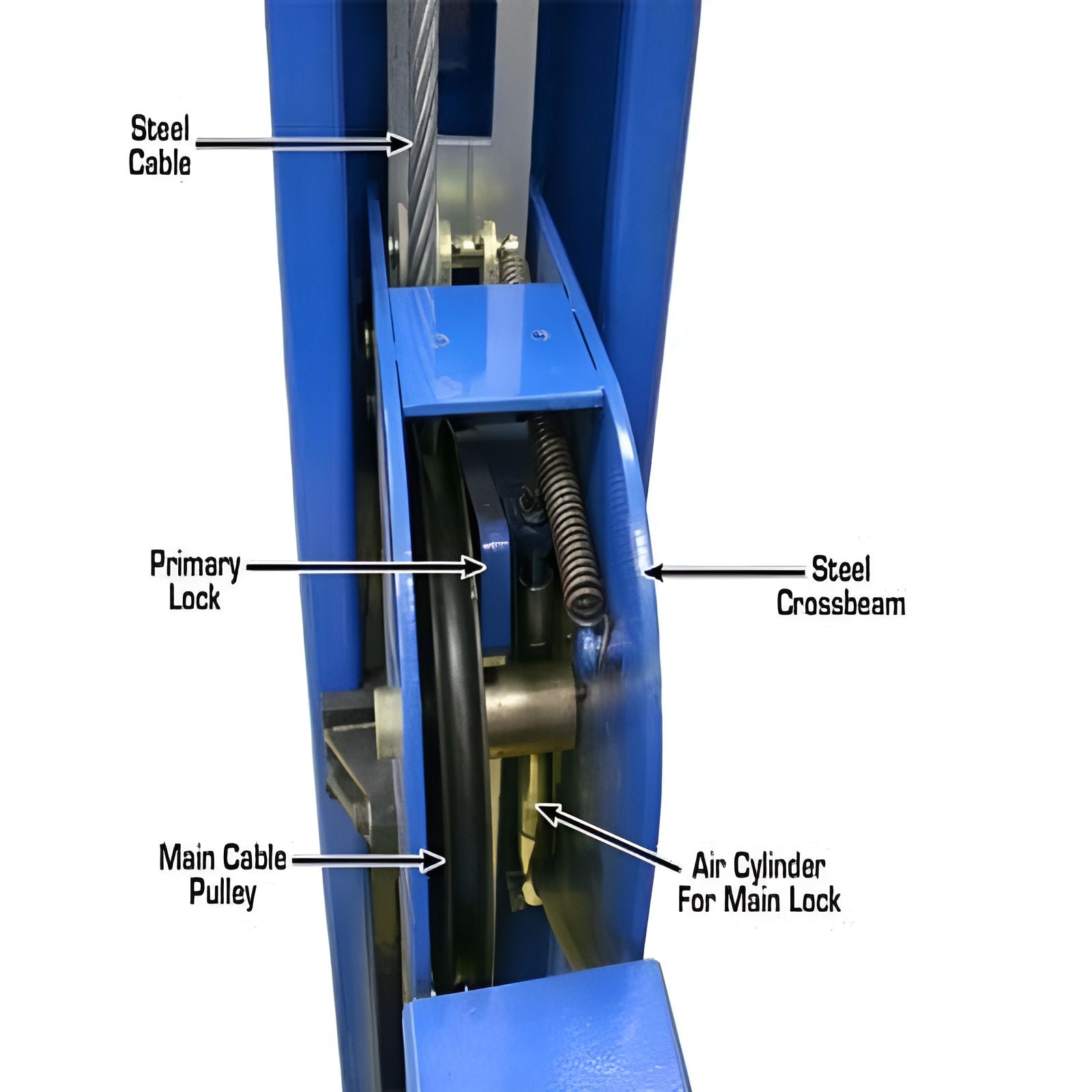

Air Operated Single Point Lock Release (External Air Supply Required)
Lock Ladder Design
Double Lock Safety System
Powder Coat Finish
Features Explained
Highlights that shape this lift's day-to-day performance:
12,000 lb. Capacity
Heavy Duty, Commercial Grade
Extra Tall, Extra Wide & Extra Long
Diamond Plated Runways
Air Operated Single Point Lock Release (External Air Supply Required)
Lock Ladder Design
Ideal Applications
Shops wanting a complete, ready-to-use lifting setup out of the box
Buyers who know they'll need rolling jacks or accessories from day one
Fleet or multi-bay operations standardizing equipment across service stations
Compatible Vehicles
Based on its specifications, this lift package is suited to passenger cars, SUVs, and light-to-medium trucks up to its 12,000 lb rated capacity. Vehicles near the upper weight limit should be checked against their actual curb weight before use.

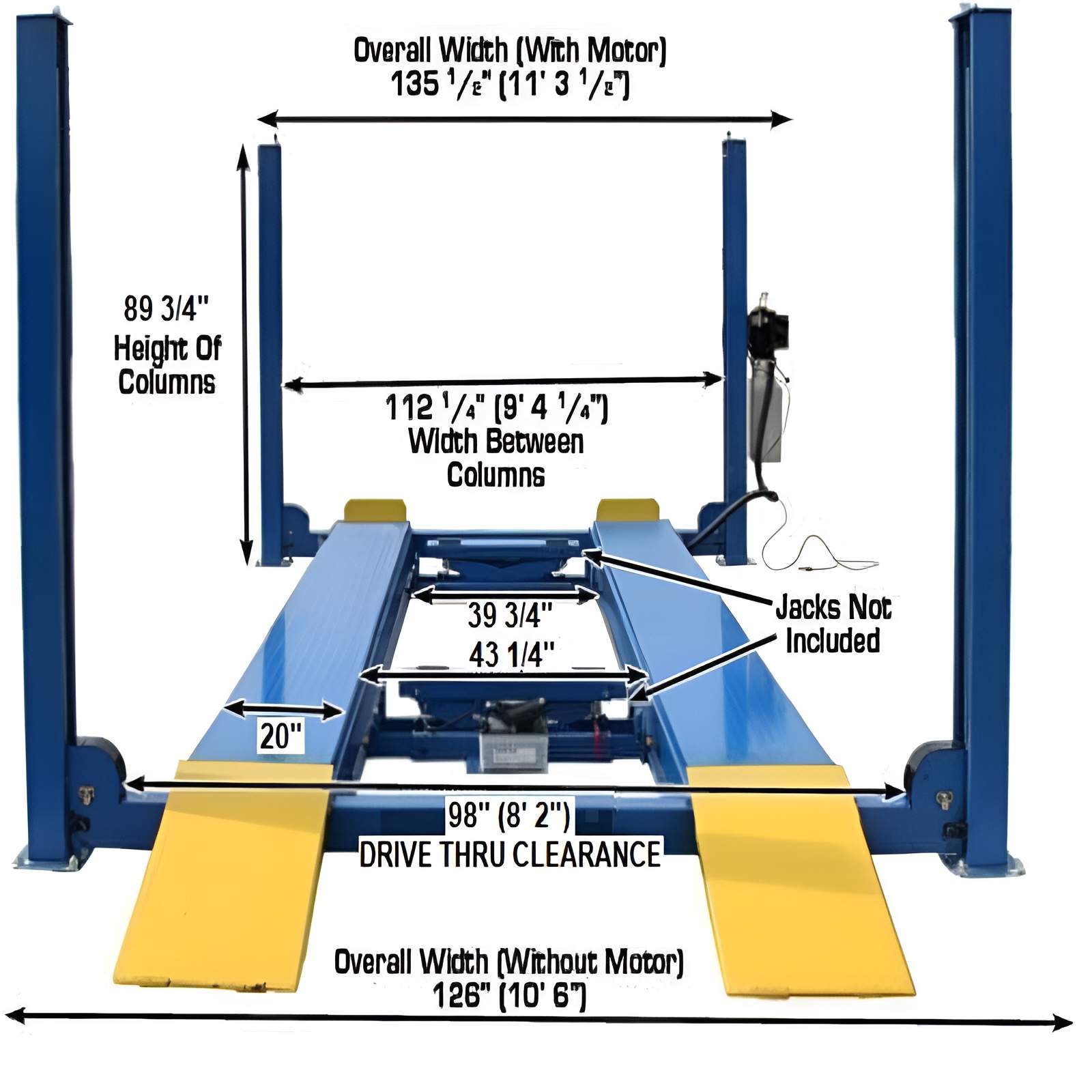

Technical Specifications
Specification |
Details |
Capacity |
12,000 lb. |
Lifting Height |
77 3/4" (6' 5 3/4") |

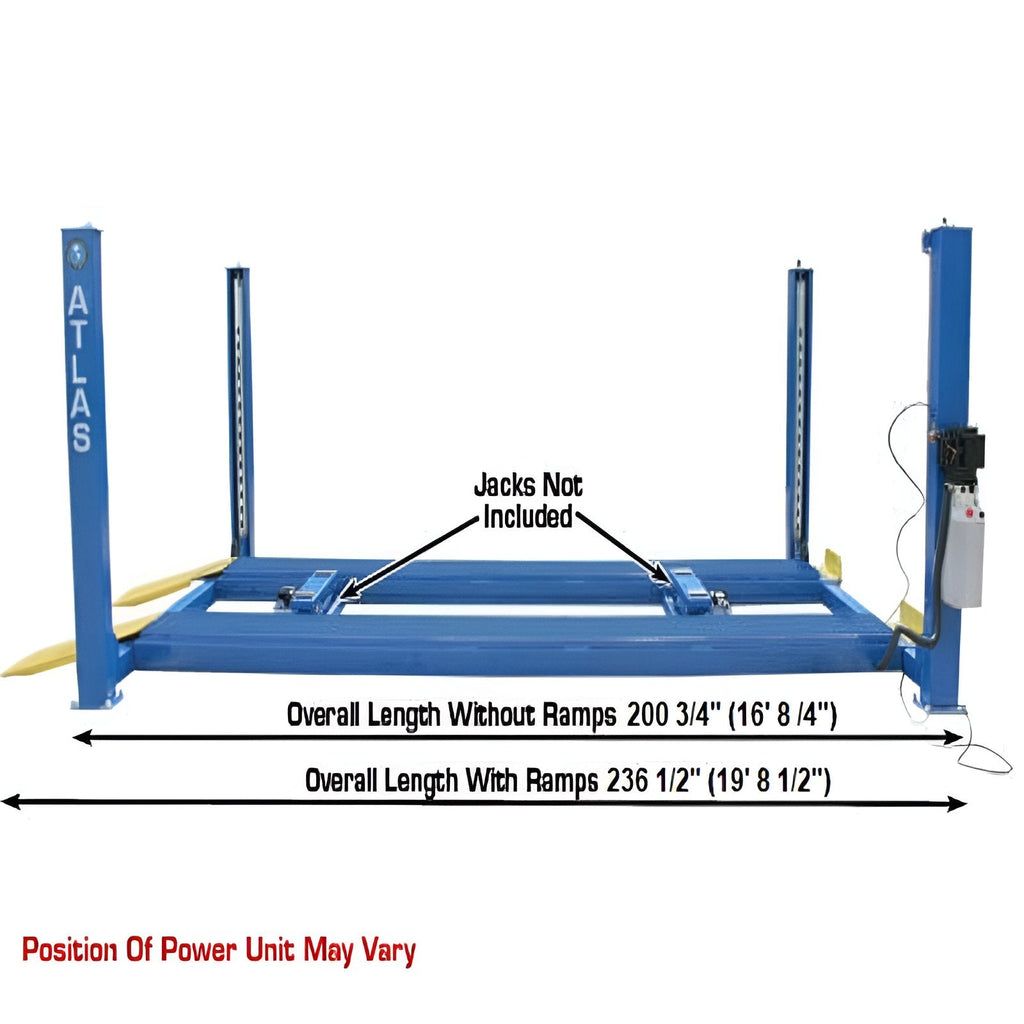

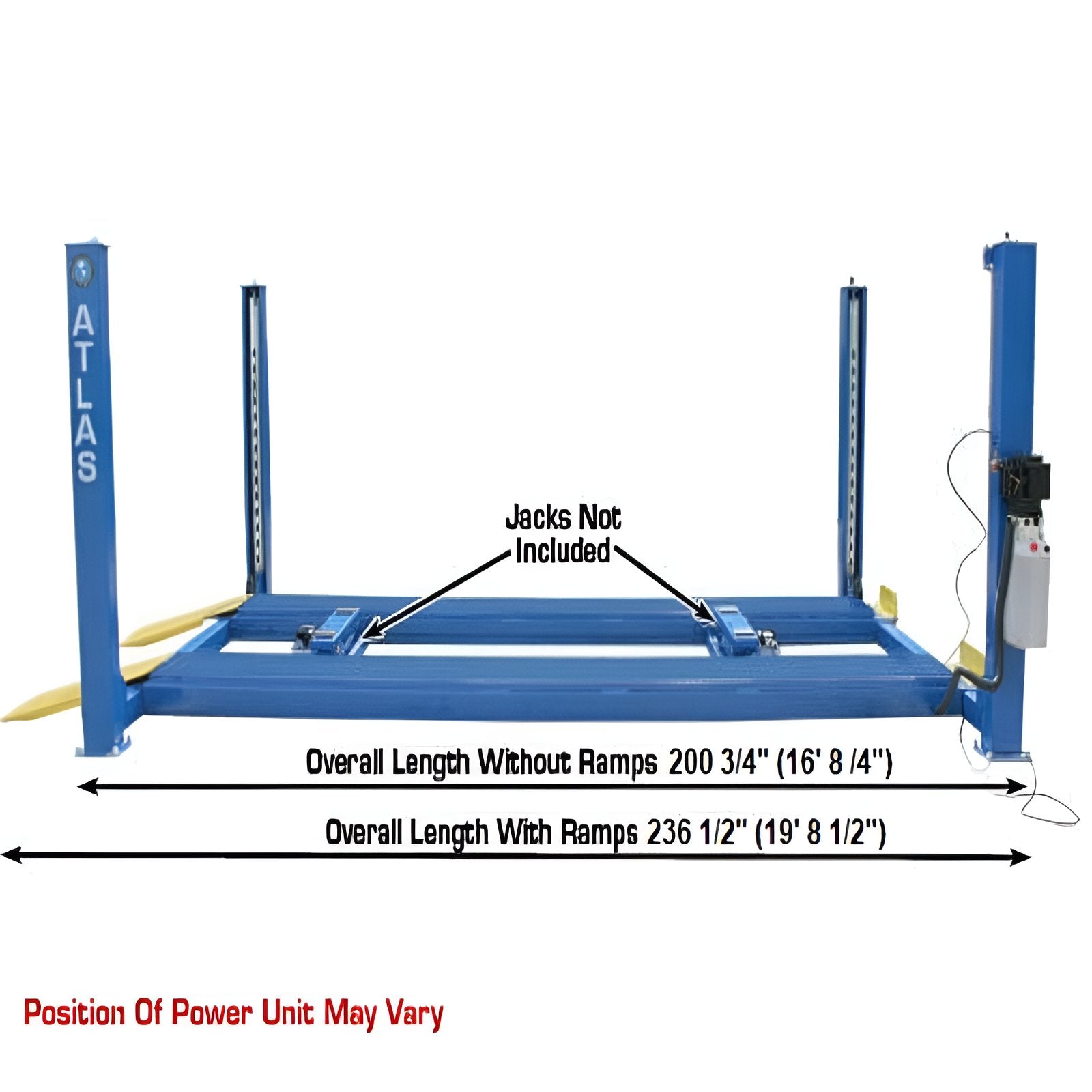

Overall Length with Approach Ramp |
236 1/2" (19' 8 1/2") |
Length Between Columns |
183 1/4" (15' 3 1/4") |
Runway Length |
194 1/2" (16' 2 1/2") |
Runway Width |
20" |
Thickness of Runway |
7 1/2" |
Width Between Runways |
43 1/4" (w/ Rail 39 3/4") |
Outside Runway to Outside Runway |
83 1/4" (6' 11 1/4") |

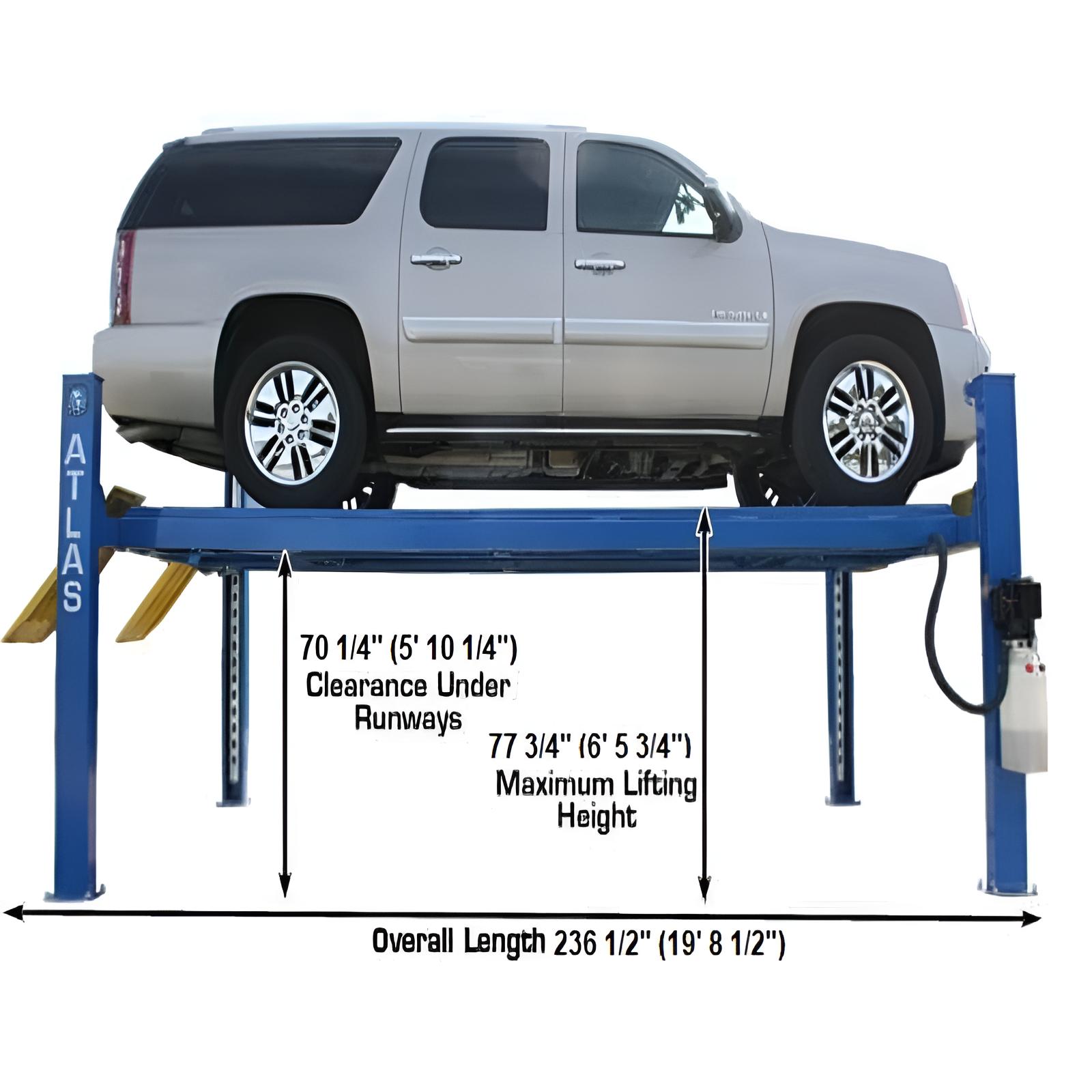

Clearance Under Runways |
70 1/4" (5' 10 1/4") |

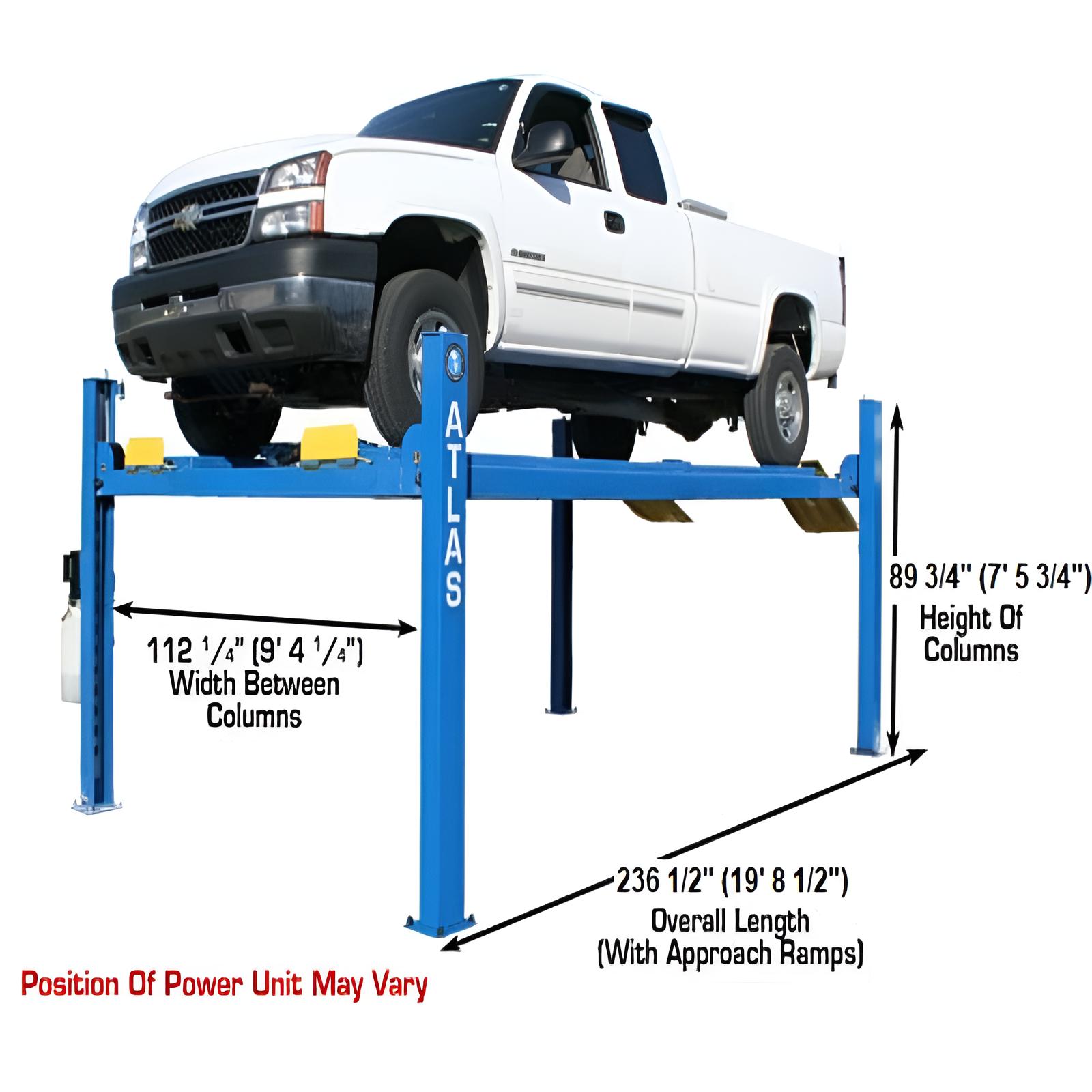

Clearance Between Columns |
112 5/8" (9' 4 5/8") |

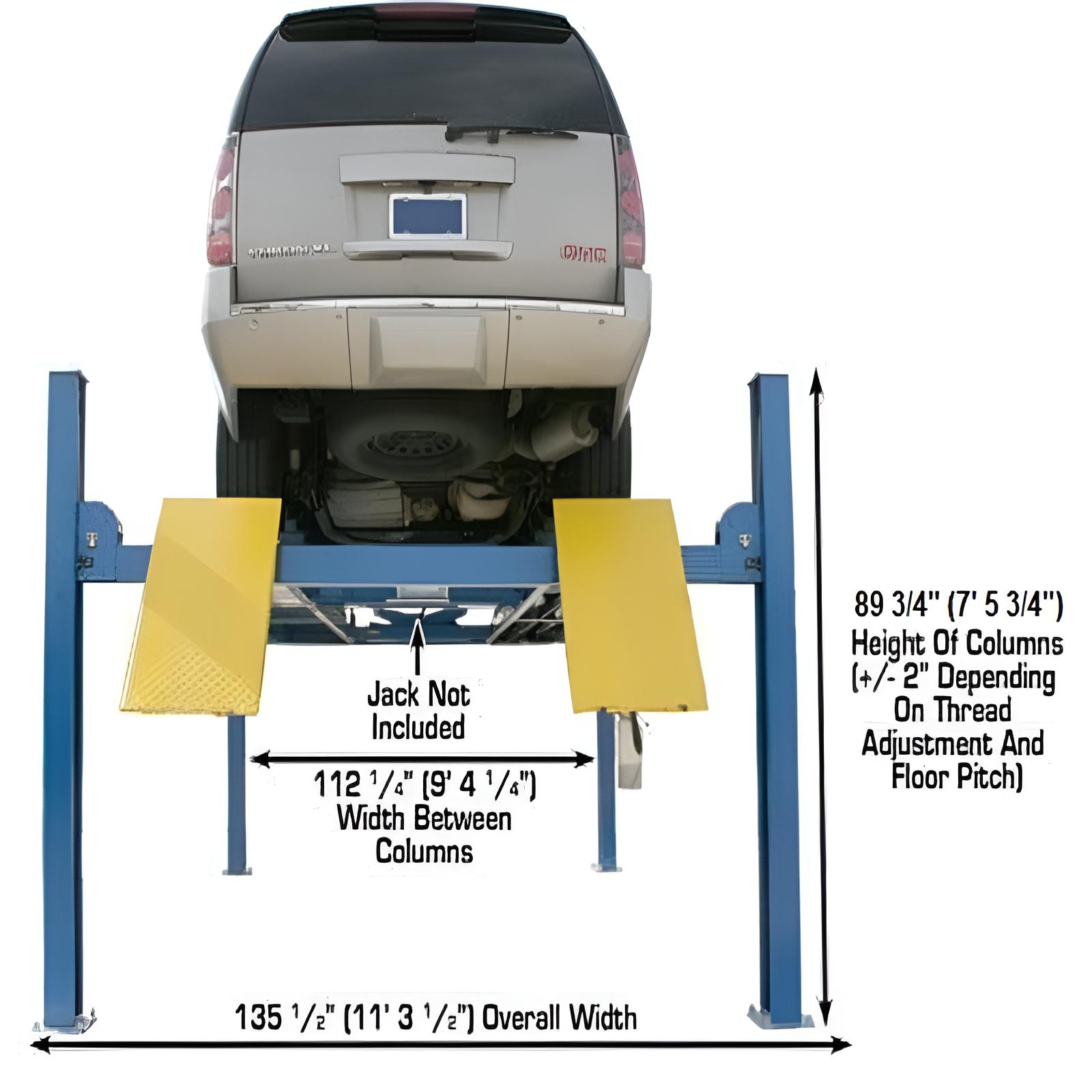

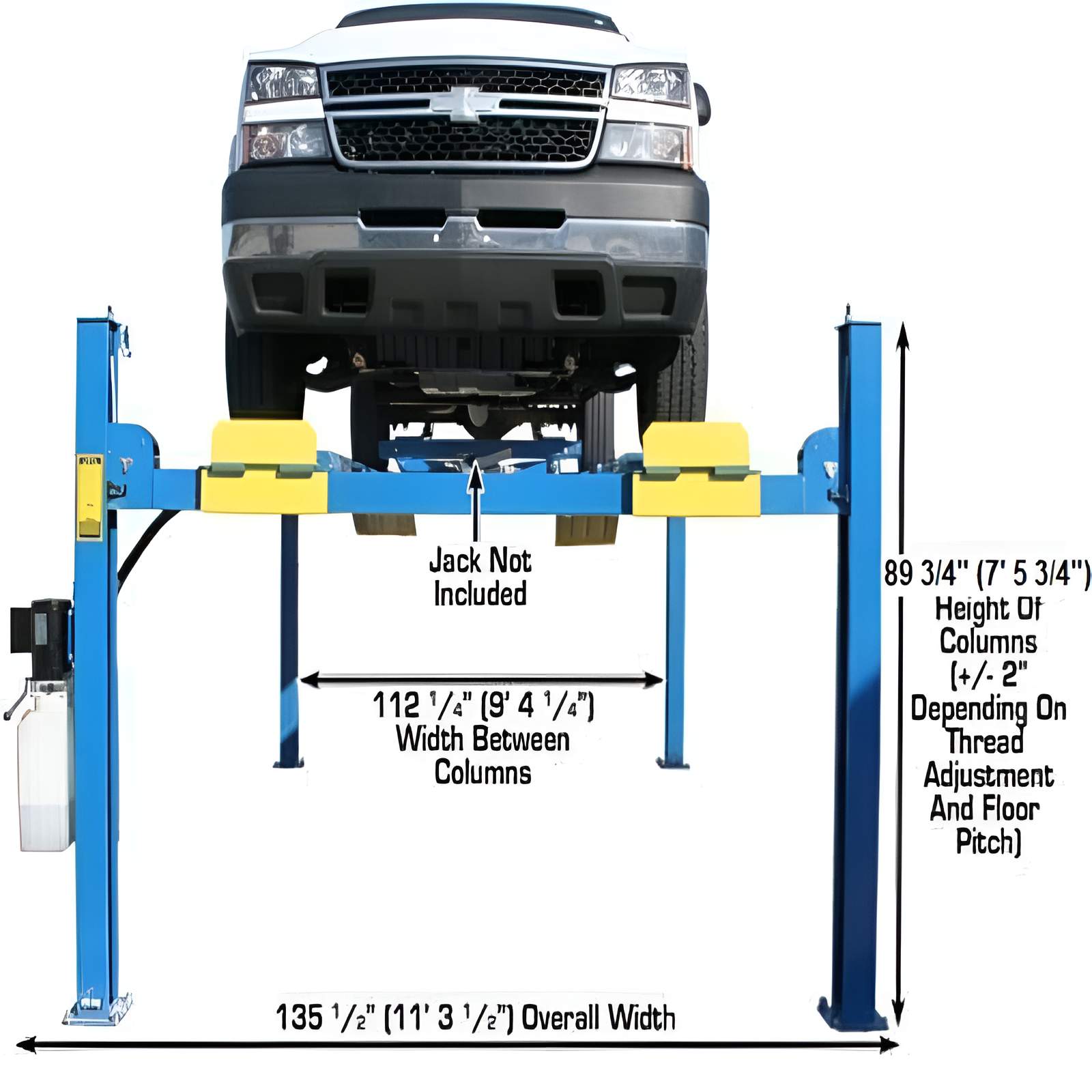

Height of Columns |
89 3/4" (7' 5 3/4") |
Maximum Wheel Base |
185" (15' 5") |
Drive Thru |
98" (8' 2") |
What's Included

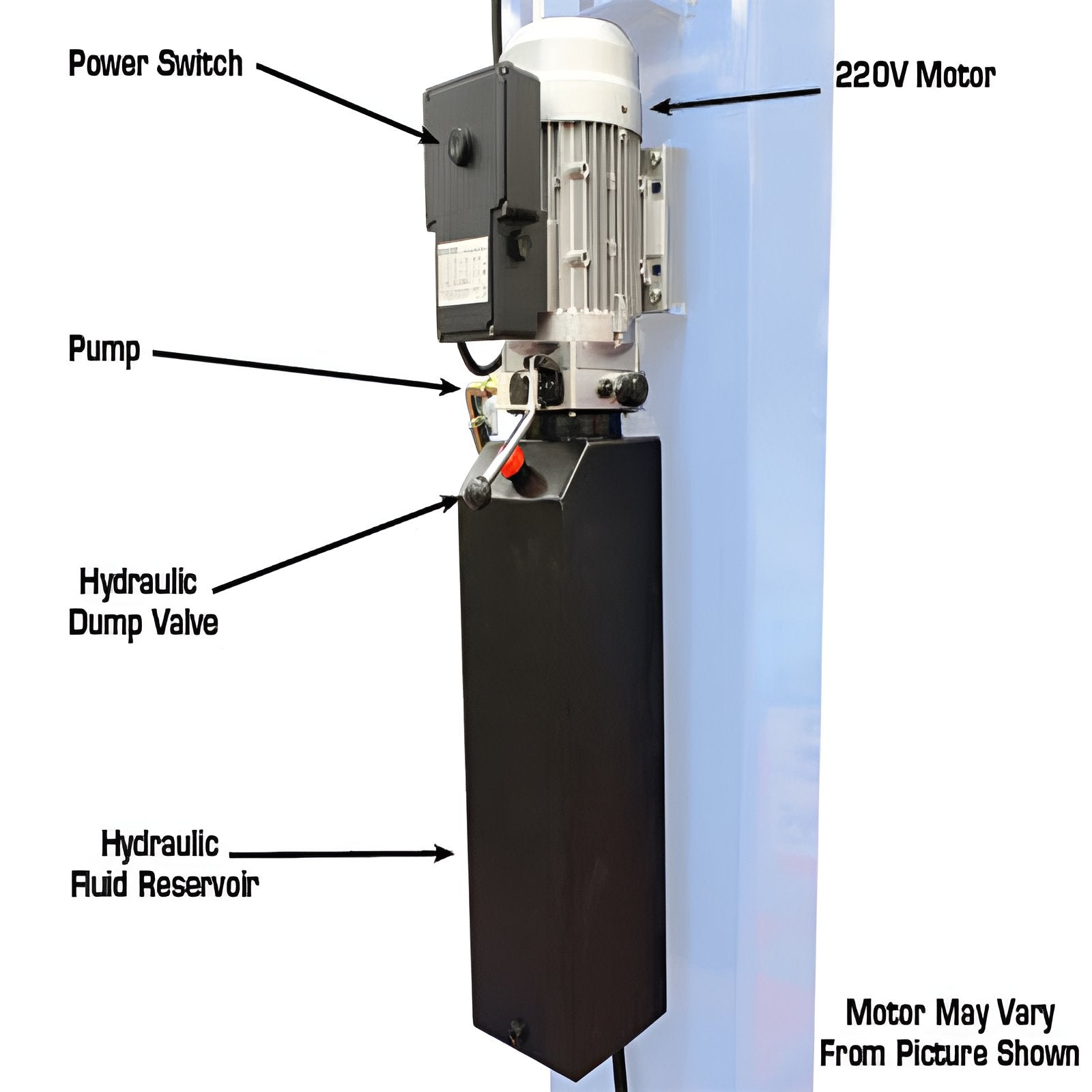

220volt/1phase Electric Operation (Requires a 30amp Breaker)

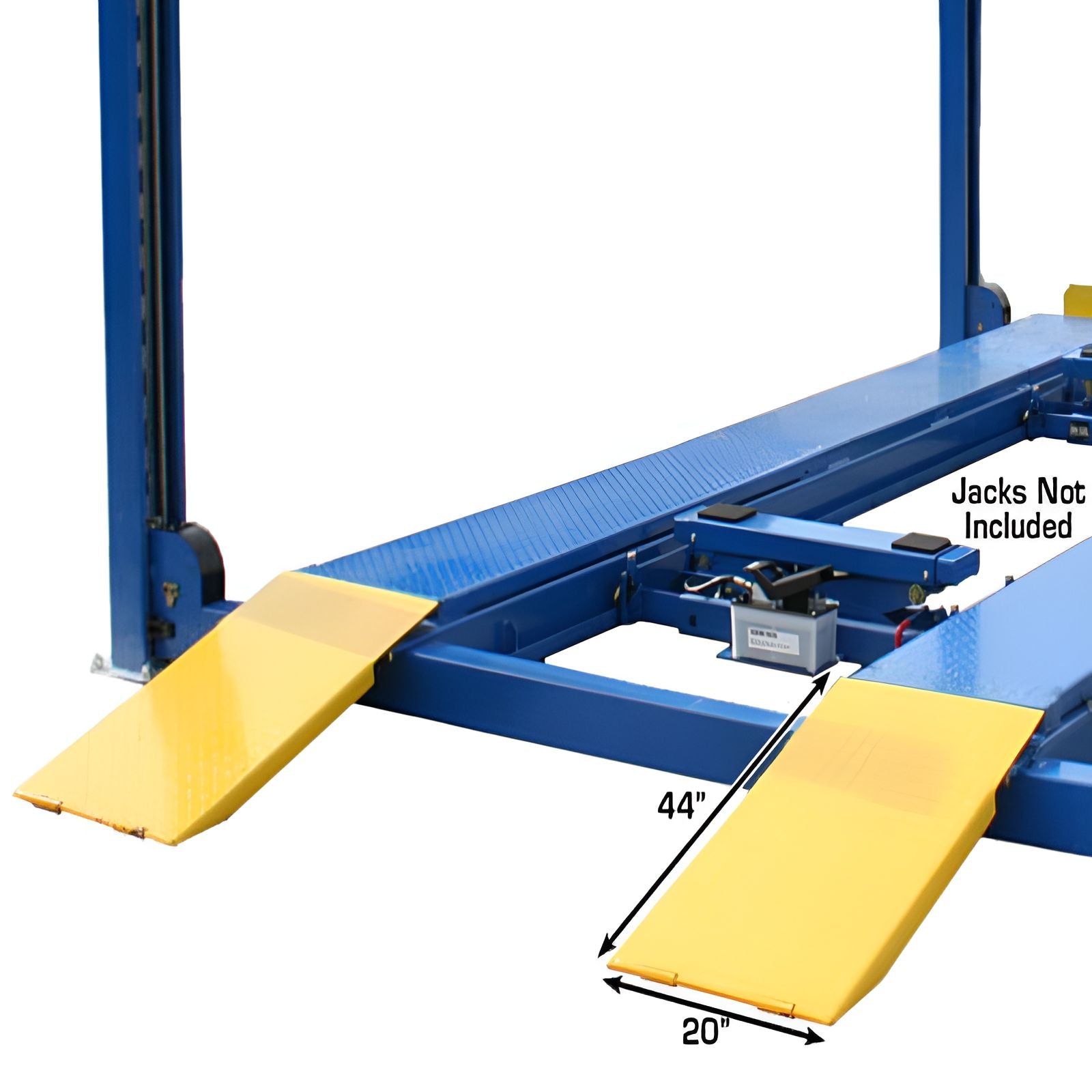

Steel Approach Ramps Included
Additional Drive off Ramps Available (Sold Separately)

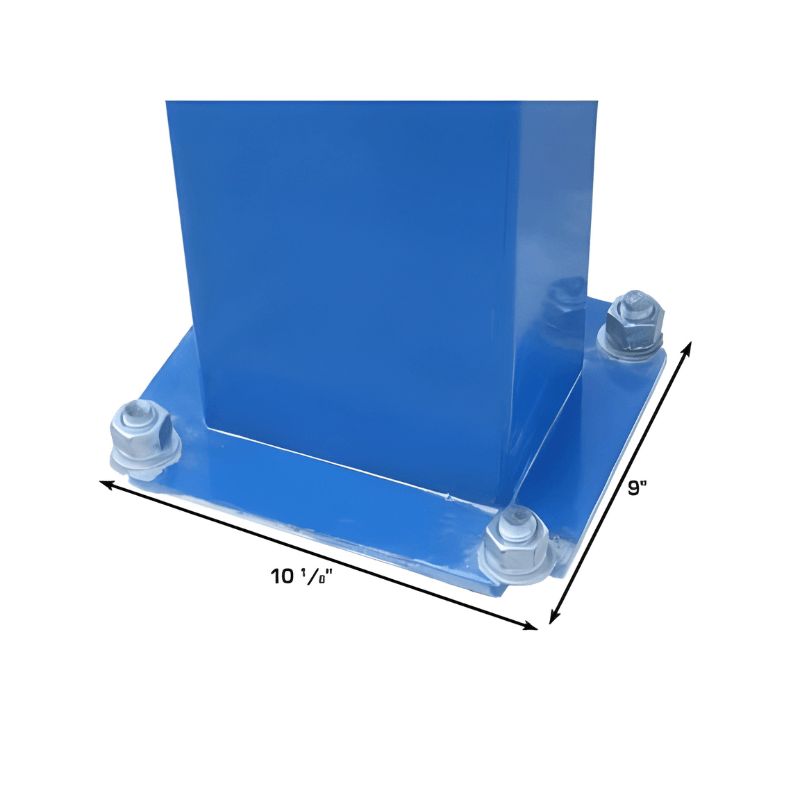

Mounting Hardware Included
Safety Features
Air Operated Single Point Lock Release (External Air Supply Required) -- included as a built-in safeguard for safe day-to-day operation.
Lock Ladder Design -- included as a built-in safeguard for safe day-to-day operation.
Double Lock Safety System -- included as a built-in safeguard for safe day-to-day operation.
Installation Requirements
Concrete requirements: Concrete Requirements: Minimum of 6"-3000psi
Electrical requirements: Confirm voltage and phase requirements with your installer before delivery.
Installation difficulty: Professional installation is recommended for anchoring, alignment, and safety-system checks.
Estimated installation time: Not specified by the manufacturer; your installer can provide a time estimate based on your site.
Shipping Information
Warehouse pickup: due to this item's size, it ships free of charge to the nearest available warehouse pickup location rather than to a home or business address.
Full details, including which locations are available, are covered in our Shipping Policy.
Questions before you order? Call +1 (623) 850-3643 or email support@triumphliftsus.com.
Warranty
This lift is covered by the manufacturer's warranty: 2 yr Hydraulic Warranty – Parts Only. Keep your invoice on hand, as it's required for any warranty service or claims.
Why Buy From Our Store
Free nationwide shipping, including free forklift delivery on qualifying orders
Secure checkout on every order
Expert customer support from a real, US-based team
Manufacturer warranty honored on every lift we sell
Fast order processing and shipment
Reliable service from a family-owned business
Trusted, name-brand automotive lift equipment
Responsive support by phone, text, or email
Frequently Asked Questions
What is the weight capacity?This lift package is rated for 12,000 lb.
Do I need special electrical work?See the Motor/Power specification above; an electrician can confirm compatibility with your setup.
Can I install this myself?Professional installation is recommended for correct anchoring and safety-system function.
Is there a warranty?Yes, covered by the manufacturer's warranty; terms are included with your order.
How does shipping work?This item ships free to the nearest warehouse pickup location due to its size -- see our Shipping Policy.
What's included?See the What's Included section above for the full list.
How much does it cost?Current pricing is $4,949.45 -- the price shown at checkout is always accurate.
Can I return this if it doesn't fit my space?Yes, our standard 30-day return policy applies; buyer covers return shipping.
More About This Lift Package
Choosing the right car lift comes down to matching capacity, build quality, and installation requirements to how it will actually be used. The Atlas 412 Lift 12,000 lb + (2) RJ6 Jacks Combo is a complete lift package that bundles the base lift with additional rolling jacks or accessories for full-service capability out of the box. With a 12,000 lb capacity, it's built as serious auto lift equipment rather than a bargain compromise. As automotive lift equipment, it's engineered for repeatable, dependable performance rather than occasional light-duty use -- the kind of durability that separates a dependable garage lift from equipment that cuts corners on materials or safety engineering. Combined with free nationwide shipping (or warehouse pickup on oversized models), a manufacturer warranty on every unit, and support from a real US-based team, this lift package is a well-rounded choice for a first home garage bay or a working shop floor.
Ready to add reliable, professional-grade lifting capacity to your garage or shop? Order the Atlas 412 Lift 12,000 lb + (2) RJ6 Jacks Combo today, backed by free shipping or warehouse pickup, a manufacturer warranty, and support from our team from checkout through delivery.
